import hatch pattern

[platinum home]

Help please. I don't know if this makes a different but I am using autocad for mac 2012. I'm trying to import a stone hatch pattern from the Internet but every time I try to import it into my hatch gallery it says error in pattern file. Kind of stuck and would like a couple different hatch patterns to show my customers rather than just brick.

[ReMark]

Could it be the method you are using? In the PC version of AutoCAD you do not "import" hatch patterns. You download them and either append them to the acad.pat file, put them in the same folder as acad.pat or put them in a different folder altogether then add the path to the folder in Options > Files and Folders > Search File Support Path.



Where did you get these hatch patterns? What are they of specifically?

[designerstuart]

autocad comes with a lot of different hatch patterns as standard - are none of them any good?

[ReMark]

AutoCAD comes with a hatch called "gravel" but none called "stone". Some users may not find it suitable.

[platinum home]

That's the problem. I've tries gravel but looking for more of a square stone look. I was able to import from one site but you can tell that it repeats every 5-6 stones.

[ReMark]

It sounds like you are looking for stone veneer that might be used on the facade of a house for instance as opposed to the type of stone found along side a stream. Am I right?

[ReMark]

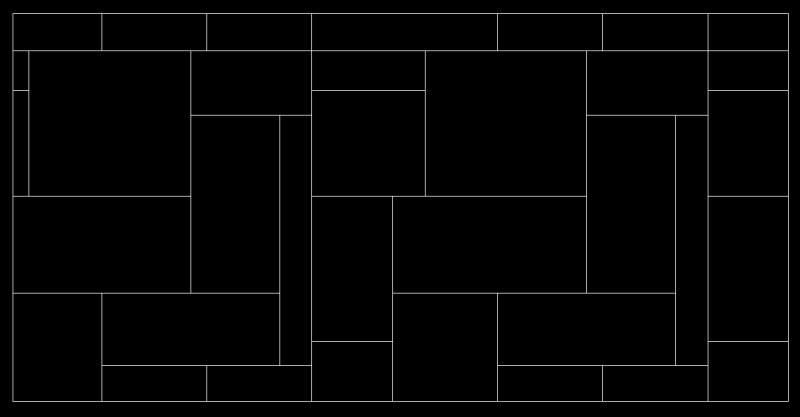

This one is called "Biltmore". FYI - most patterns will repeat fairly quickly. If you want something that doesn't then you will have to create a custom hatch pattern yourself. You can write a pattern definition file or you can use two commands from Express Tools called Make Shape and Make Linetype.

[SLW210]

AutoCAD for Mac has no Express Tools AFAIK.

[ReMark]

Sucks to be a Mac user.

[hugha]

Links to hatch pattern collections:



http://www.hatchkit.com.au/HatLinks.php



There may be an error in the hatch pattern file you are attempting to load. Make sure there is only one pattern definition in each pattern file, that the pattern name matches the filename and that there is a blank line at the end of the file.



If you still face diffficulty please upload the file for analysis.

[ReMark]

I think the OP gave up.

[netman]

No way I can decypher what you all are doing with creating hatches, however I did find this http://www.hatchkit.com.au/download.php

I had no success, but it could well be USER ERROR as the hatches looked great, loaded great and were done in an instant...just when I went to use them in AC in a real drawing, they were distorted.... I am NOT knocking the software....I still thnk its USER ERROR.

Has anyone else tried it?

[platinum home]

Thanks for the tips everyone. I did get one that looks good. Maybe sometime someone can explain how to create my own.

[ReMark]

I have no use for Hatchkit.

[hugha]

No way I can decypher what you all are doing with creating hatches, however I did find this http://www.hatchkit.com.au/download.php



I had no success, but it could well be USER ERROR as the hatches looked great, loaded great and were done in an instant...just when I went to use them in AC in a real drawing, they were distorted.... I am NOT knocking the software....I still thnk its USER ERROR.

Has anyone else tried it?

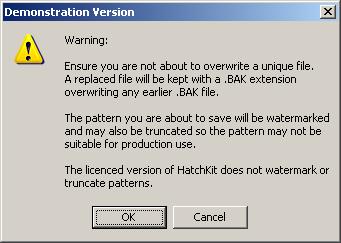

Be aware the HatchKit Demonstration available from that link adds a watermark to the patterns it produces.
