Trouble extruding a cornice profile

Recommended Posts

cbsmiley

I'm having trouble extruding a profile i have created. Get "Cannot sweep or extrude a self-intersecting curve" error. I have used the overkill command to find any duplicate lines. Any help would be greatly appreciated. Trying to extrude along a straight line.

profile.dwg

Edited by cbsmiley
add more info

Share this post


Link to post
Share on other sites
JD Mather

Does presspull work?

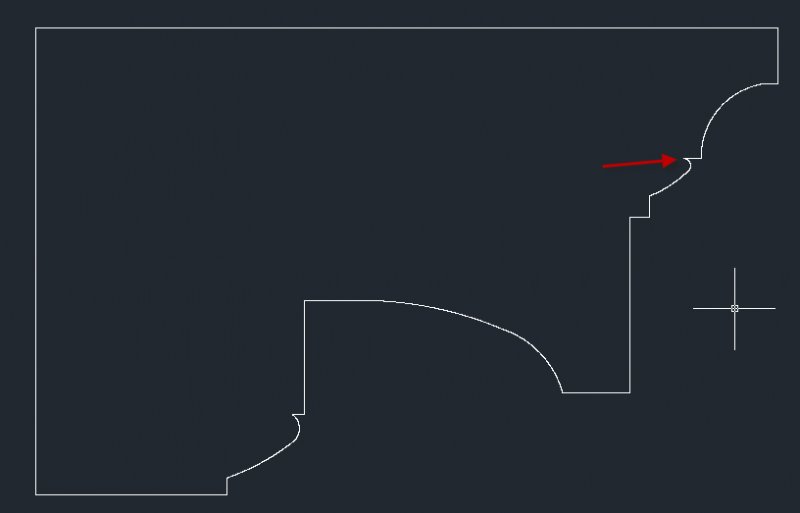

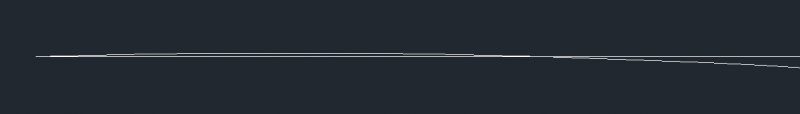

But I think I would fix this loop.







Share this post


Link to post
Share on other sites
JD Mather

Also I dimensioned this thing in inches and metric and the dimensions don't make sense to me (not manufacturable).

Share this post


Link to post
Share on other sites
cbsmiley

thank you, i found the lines right after posting the question. Also what do you mean by dimensioned? its is a cornice profile so if it was extruded it would form the finished positive shape; it is to be made by bench running plaster.

Share this post


Link to post
Share on other sites
JD Mather

If I dimension the profile the lines do not come out to measureable, logical values like 1 inch, instead coming out to something like 1.2345678

Share this post


Link to post
Share on other sites
