thebes stool

[bernardino]

How do i make a thebes stool in autocad 2008?

[nocturne00]

Create 2 SPHERES, the larger is with the outer radius of the stool, one smaller than the other in order to make a shell off the larger sphere to create the thickness of the stool.

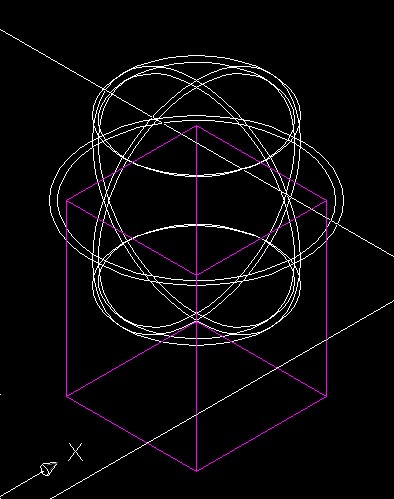

next make a square with the dimensions of the stool(the violet cube in the drawing), position it at the center of the sphere shell

then use INTERSECT on the 2 solids.

VOILA.

Thats just one method, :wink: ,maybe someone will post his own routine.

[nocturne00]

Im sure youll be able to manage the legs and web supports of the stool.

[shift1313]

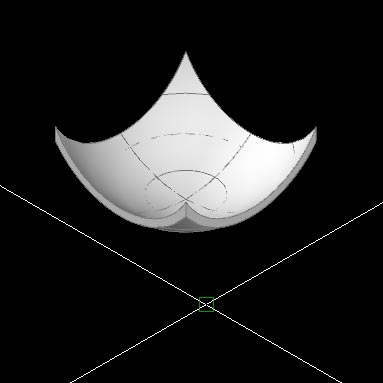

you can also make the stool by using 4 arcs or 4 splines and doing an edge surface(edgesurf) between them. Nocturnes method is perfect if you need a solid and its a perfect sphere.



Are you just drawing a representatio nof this? or are you trying to acurately model it?

[bernardino]

you can also make the stool by using 4 arcs or 4 splines and doing an edge surface(edgesurf) between them. Nocturnes method is perfect if you need a solid and its a perfect sphere.



Are you just drawing a representatio nof this? or are you trying to acurately model it?



Yup im doing a presentation for my job interview.

[nocturne00]

thats nice, Practice also Shift's suggestion if you want to impress your employer. solving the same problem w/ 2 solution is a mark of proficient drafter

[shift1313]

i just want to note that if you are going to be doing solid editing i would draw it the way nocturne showed you above. but i agree, draw it both as a solid model and surface model to show the empolyer you can find multiple solutions
