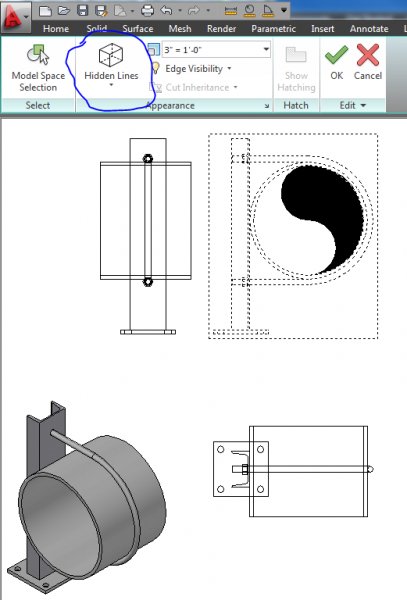

Faouweb Posted October 10, 2012 Posted October 10, 2012 Hi, After I created a 3D support I used Projected Views to make all view, but the problem there is no Hidden lines as you can see on the picture. How can I solve this problem? I use AutoCAD 2013 Thank you Quote
ReMark Posted October 10, 2012 Posted October 10, 2012 Maybe it is a problem with your linetype scale? Quote
Faouweb Posted October 10, 2012 Author Posted October 10, 2012 Thank you ReMark I have made the drawing with Inventor, after they asked me to put the drawing in AutoCAD, I don't know why ; but when they saw it's a bit difficult to work with in AutoCAD, I'm continuing working in Inventor Quote
ReMark Posted October 10, 2012 Posted October 10, 2012 I would wonder too if someone asked me to move a design from Inventor to AutoCAD but to be honest what you have shown (pipe support) is not that difficult to do in AutoCAD at all. I would do it just as you have in 3D then extract the 2D views using the View Base command (so simple) then dimension them. Well thanks for updating us just the same. Glad you got it squared away. Quote
