Trim lines

[hemal]

I have drawn figure1 with the help of rectangle and press/pull command. I have drawn figure2 with the help of line command.

I want to trim the lines of figure1 which are shown in red color in figure2.How to do this? please, help me.

Fig 15.15 _ two.dwg

[nod684]

I have drawn figure1 with the help of rectangle and press/pull command. I have drawn figure2 with the help of line command.

I want to trim the lines of figure1 which are shown in red color in figure2.How to do this? please, help me.



Redraw the "triangle" in Figure1 using 3DPOLY command and extrude it.

then Subtract it to the BOX using SUBTRACT command,

Run Subtract, pick the box and enter then pick the extruded triangle then press enter

[ReMark]

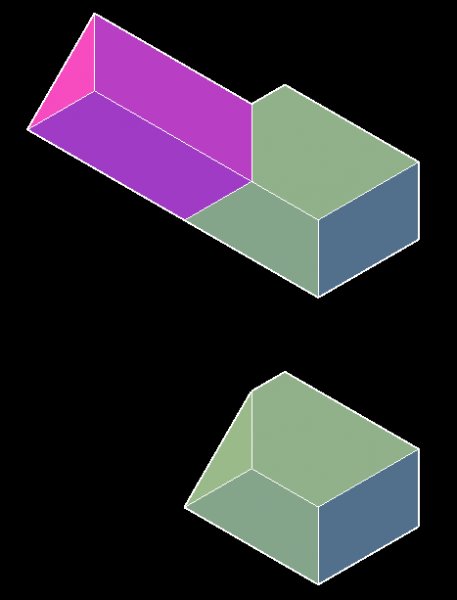

A visual aid for you.

[ReMark]

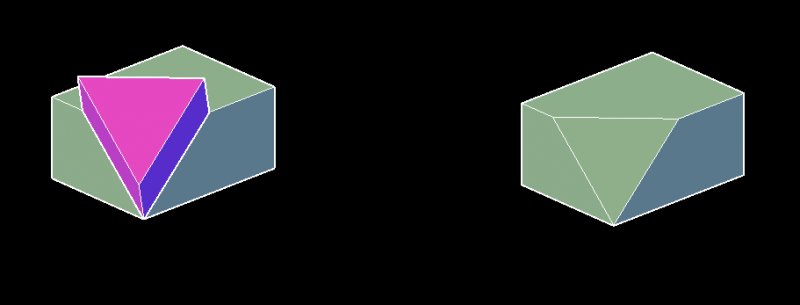

A different view.

[JD Mather]

Slice 3p might be faster.
