Ribs on Cylindrical parts

chriztoantony

By chriztoantony
in SolidWorks

 Share

Recommended Posts

chriztoantony Rookie

chriztoantony

Posted
Posted

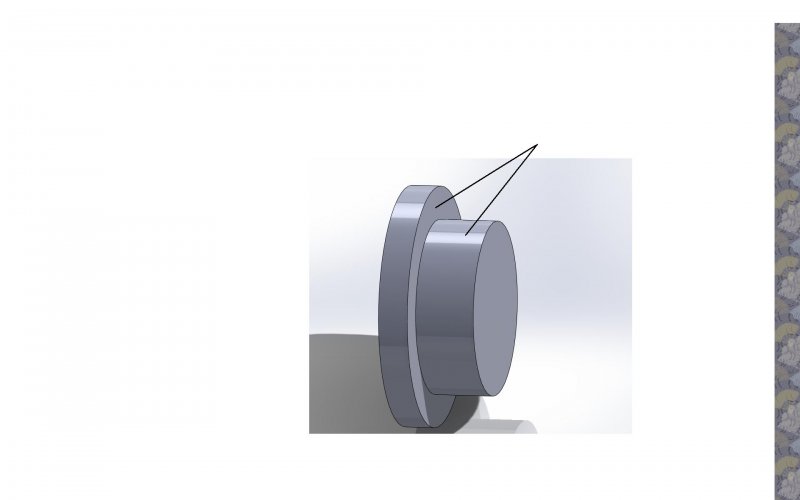

How to create ribs on a cylindrical part as shown using solid works (Between the marked)??? :)

ex.SLDPRT

Ribs bwn marked parts.jpg

JD Mather Grand Master

JD Mather

Posted
Posted

Start new sketch on plane going through center of part.

Sketch diagonal line for rib.

Use the Rib feature tool.

Circular pattern if needed.
