Please help me how to get the x and y coordinates of grid on drawing.

[ashnav_msit]

Hi Friends,



I have a question. Now i am working on setting up the grid system for drawings . My task is after setting the grid label the possition of equipments od Data Center( e.g ups, panels) on drawing. I am able to set the grid but i don't know how to get my grid coordinate identifiers(x coordinates and y coordinates) which will help me to label the equipments.

[ReMark]

It could probably be done with a custom lisp routine. There are many such routines scattered about the Internet. Have you tried searching for one?

[ashnav_msit]

Thanks for replying..yes i am searching about it but i am not getting even a single clue...what is custom lisp route?

[ashnav_msit]

If there is any simple way to label the cordinates of grid will help me alot.

[ReMark]

Lisp is a programming language and it is used within AutoCAD. Some of the commands found in Express Tools were created using lisp.

[ReMark]

Can you attach an image of one of your drawings so we know what we are dealing with?



What coordinates would you be looking to obtain? Ex. - the lower left-hand corner or the center of any piece of equipment.



Would the coordinates always fall on the grid?



I have a lisp routine that will kick out the X, Y and Z coordinate of any point that is selected. It puts it onscreen however so if you did not want the coordinates to show when you plot your drawing you would have to put them on a layer that is set not to plot.

[ReMark]

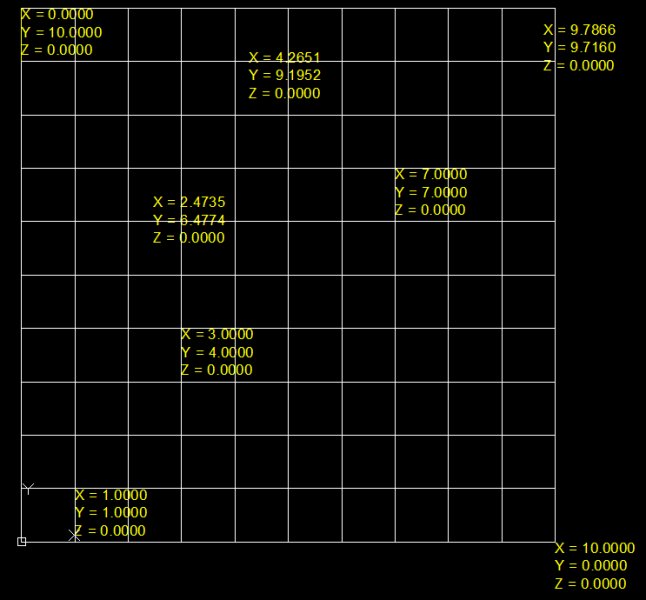

An example.

[ashnav_msit]

I have attached the file. I need the cordinates like AA, AB, AC, AD along x axis and 01,02,03 along y axis.

grid.docx

[ashnav_msit]

i not want to label the coordinate value. I want label the all x and y axises of coordinates as we do in graphs

[ReMark]

You were the one that said coordinates I believe.



I suggest you look on the Annotation tab of your Tool Palettes and use the Tag - Imperial or Tag - Metric depending on what units you use.

[ReMark]

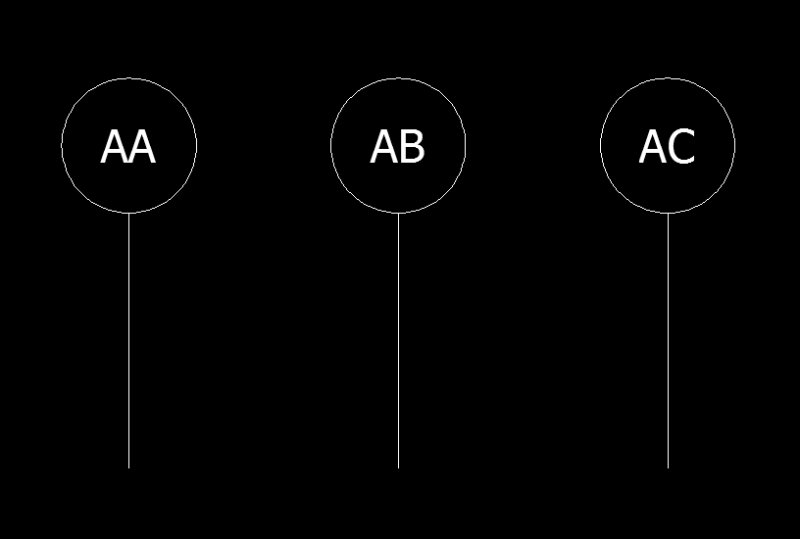

Something like this?

[ashnav_msit]

i am using Architectural length type with units - inches. But how annotation is connected to the coordinated of grid?



does i have to type all the coordinates? Is it not automatically come?

[ReMark]

You type it in yourself.



I think there might be a lisp routine that would do it automatically. It will take me a moment to check. I'll be back.



Lee Mac's Incremental Numbering Suite might work. Find it here...http://lee-mac.com/numinc.html



Even better is Lee's Incremental Array program. Find it here...http://lee-mac.com/incrementalarray.html



There you go.

[ashnav_msit]

sure sir.........

[ReMark]

Already done. See post #13.



Calgary? I was there once, a long time ago. Nice place.



I waited as long as I could for your response but seeing none I guess I am done here. I'll be going out on a field inspection shortly and will be away from my desk for a couple of hours. Good luck. I hope you find what you are looking for.

Edited December 6, 2012 by ReMark

[eldon]

Perhaps you could use Ordinate dimensions

[ashnav_msit]

Sorry i went for lunch.

Thanks for this gr8 help. Yeah i am in Calgary. I am on C-op here. Did you like it here?

[ReMark]

I'm back. The inspection took longer than I thought. We're busting out concrete around two 480V electrical lines. Couldn't kill power to them because the way our grid is set up. It was cold out too!



Did you check out both the lisp routines? Did you test either of them?



Yes, I liked Calgary. As a matter of fact I pretty much liked all of Canada. I traveled almost the entire length of the country on my way to Vancouver to visit a good friend of mine. I especially liked the side trip I took to Banff and Jasper.

[ReMark]

meet18: I think you are slightly confused about what is being discussed.



The name LISP derives from "LISt Processing".



Lisp is a high level programming language.



You can learn more about AutoLisp here at Jeffery Sander's website...http://www.jefferypsanders.com/autolispbeg.html

Edited December 7, 2012 by ReMark
