trent13az Posted January 17, 2013 Posted January 17, 2013 These questions deal with the chapter "Text and Dimensions"... Can someone please check them for me? Thanks. 1. Which one of the following commands can be used to dimension angles formed by portions of circles in AutoCAD? A. DIMANGULAR B. DIMEDIT C. DIMALIGNED D. DIMORDINATE My Answer: A 2. Which one of the following statements about updating fields in AutoCAD is correct? A. Fields may only be updated manually, not automatically. B. Fields may only be updated individually, not in groups. C. An individual field can be updated by double-clicking the field text, and then right-clicking to open the shortcut menu. D. An individual field can be updated by right-clicking in the field and choosing the Insert tab. My Answer: B 3. You've previously inserted a field that includes information regarding the creation and last modified date to your drawing. After making a change to the drawing, you want to update the last modified date. To do this, you should A. manually change the field to represent the corrections. B. simply save the document; the information is updated automatically. C. delete the current data and insert a new field. D. select the Update field option. My Answer: B 4. In AutoCAD, the _______ option is used to constrain the height of the text being entered within a specified area. A. Align B. MHEIGHT C. STRETCH D. Fit My Answer: D 5. The AutoCAD command that controls the distance that extension lines are drawn from an object you're dimensioning is A. DIMEDIT. B. DIM. C. DIMLINEAR. D. DIMEXO. My Answer: D 6. Imagine that you're adding text to a drawing, and you want that text to be rotated at a specific angle. Which one of the following commands would be used in this situation? A. ROTATE B. ANGLE C. TEXT D. ITALICS My Answer: C 7. Which one of the following is a valid option for the justification of a multiline? A. Right B. Midpoint C. Left D. Center My Answer: D 8. _______ dimensions are used to show multiple horizontal and vertical distances from a single point or the corner of an object. A. Continuous B. Fixed C. Ordinate D. Baseline My Answer: D 9. The MTEXT command allows you to A. move text lines. B. middle-justify text lines. C. place all entered text lines within the window on your screen. D. conform text lines to your specified width and justification method. My Answer: D 10. In the New Dimension Style dialog box, the Primary Units tab allows you to make adjustments for A. the way in which tolerances are displayed. B. displaying more than one type of unit of measurement. C. the size and position of dimension geometry. D. linear and angular units. My Answer: A 11. Imagine that you've created several different labels for your drawing, and decide that you want them all to appear the same. The best command choice for this purpose is A. GROUP. B. MATCHPROP. C. UNIFY. D. COPY. My Answer: D Quote
ReMark Posted January 17, 2013 Posted January 17, 2013 Think on number 11 there for a minute. If you have already created several different labels how would copying them make them all appear the same? Take another look at number 10 too. The easiest way to answer the question would be to invoke the DIMSTYLE command and look on the Primary Units tab. Quote
trent13az Posted January 17, 2013 Author Posted January 17, 2013 unfortunately, I don't have the software, just reading out of a book. Quote
ReMark Posted January 17, 2013 Posted January 17, 2013 Have you had a chance to see or use the program in class? Quote

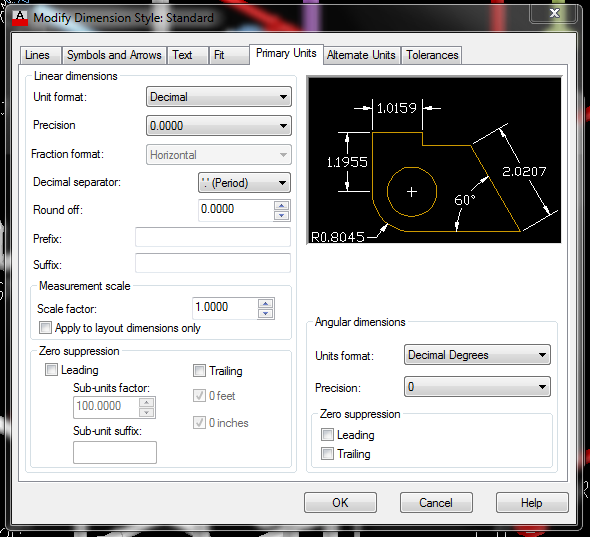

ReMark Posted January 17, 2013 Posted January 17, 2013 This is what the Primary Units tab looks like. Look at it closely then take another stab at the question. I would expect a graphic similar to this to be in your book. Perhaps you overlooked it. Quote
trent13az Posted January 17, 2013 Author Posted January 17, 2013 Thanks ReMark, looks like the answer would be: D. linear and angular units. not taking a formal class just using a book for now to see if I can get it, then I may invest in the software. Quote
ReMark Posted January 17, 2013 Posted January 17, 2013 Well there is no need to invest in anything other than a little time and effort. Go to the dassault systemes website (the company responsible for creating SolidWorks) and download their FREE (yes, you read that right) 2D AutoCAD clone (very similar to AutoCAD 2010). While you're their also download the user's manual which is also free. The commands, the layout and the way it works is very, very similar to AutoCAD. Did I mention it was FREE? The program reads and writes to the AutoCAD 2010 file format so you can load and edit drawings done with AutoCAD or AutoCAD LT (as long as they were saved to the 2010 or earlier file format). And when you create a drawing using DraftSight it is saved as a DWG file which anyone with an AutoCAD program can open. Is that cool or what? Quote
ReMark Posted January 18, 2013 Posted January 18, 2013 The answer to number 11 is MATCHPROP. MATCHPROP is the Match Properties command. Properties of text can include the text style, height, orientation, etc. Thus a user could have several labels created with different text styles, heights, and orientation. Using MATCHPROP the user could select one label as the "source object" (i.e. - the one to match) then select the other labels as the "destination object(s)" (i.e. - the objects that are to be changed). Hope that makes sense. Quote
ReMark Posted January 18, 2013 Posted January 18, 2013 great info- thanks! You're entirely welcomed. Unfortunately I have a meeting to go to now but if you have any further questions I'm sure one of the other forum members can assist you. BTW...although I use AutoCAD for my job I have a copy of DraftSight on both my work and home computer. Good luck and happy cadding. Quote
JD Mather Posted January 18, 2013 Posted January 18, 2013 Any student over the age of 11 anywhere in the world can download AutoCAD for free 3-yr student license at http://www.autodesk.com/edcommunity Anyone can download free 30-day trial. Quote
