Trying to figure out 3D

[ciperez]

I currently have an assignment that requires us to turn our 2D drawing into 3D. I am having difficulty with the walls and constructing them. Does anyone have any recommendations on how to begin this process?



Thnx!



-Clara

[nocturne00]

Explore these basic 3d commands first:

-Extrude

-Subtract

-Union

-Slice

For the walls start with having the wall lines converted to closed polylines so you could extrude them.

[ciperez]

Ok so I made my walls into polylines and I attempted to extrude them and now I am getting this message, "Cannot sweep or extrude a self-intersecting curve."

[nocturne00]

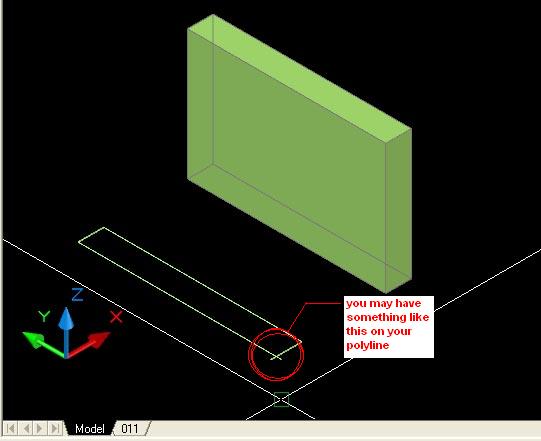

check your polyline, the polyline must be a like a boundary or a closed non intersecting polyline, meaning the polyline being extruded must not intersect itself.

a bit of a remedy is using BPOLY command, select a point inside the wall to automatically generate an enclosed polyline w/c you could extrude.

[ReMark]

Loft is another command you can use in place of Extrude. And don't forget Polysoild can be used to make a wall too. Re: Self intersecting. It solids like you crossing some line (literally).

[ZedEverett]

turn all your 2D lines into polylines using PEDIT command /join them all using PEDIT/ then extrude to the height you want. Not sure about your "Cannot sweep or extrude a self-intersecting curve." problem.

[Dadgad]

Why not use POLYSOLIDS?

Oh, just saw that ReMark beat me to that one.

That is the easiest way to go in my opinion.

[ReMark]

turn all your 2D lines into polylines using PEDIT command /join them all using PEDIT/ then extrude to the height you want. Not sure about your "Cannot sweep or extrude a self-intersecting curve." problem.

PEDIT is not the best option here. And the reference to a self-intersecting curve means that there is something wrong with the OP's geometry.
