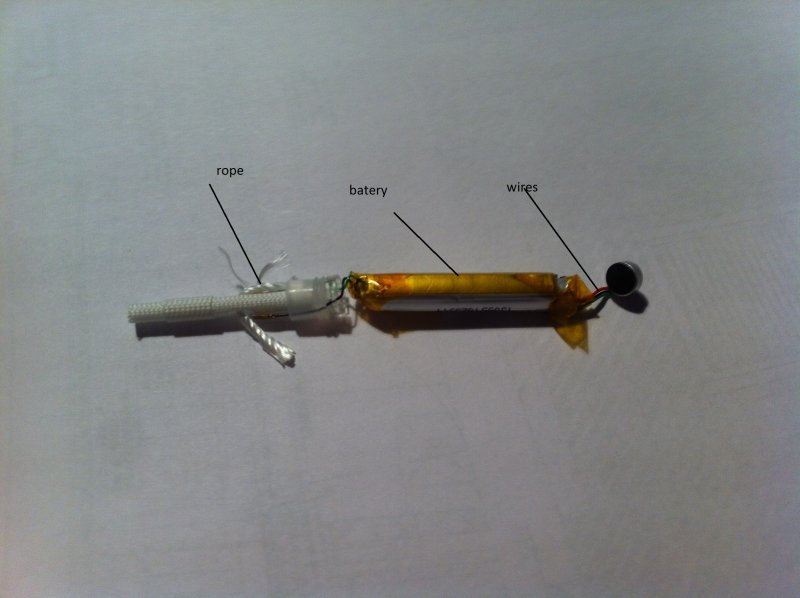

edckute100 Posted June 9, 2013 Posted June 9, 2013 Hi guys I am quite new to inventor and I bit stuck on few things. I manage to draw all parts and components but now I trying to do assembly and those wires puzzles me, How I can show them on assembly for some reason cable and harness environment wont let draw any wire. And what would the best way from your experience to draw rope and whole assembly over all. Your help would me much appreciate Quote
Lazer Posted June 15, 2013 Posted June 15, 2013 You need to start an .iam (assembly) and insert the parts then constrain the parts together. For the picture you have shown you will not need to model in the cable and harness enviroment as you do not have enough cables to make it worth while. Just sketch out 3d spline and sweep it with a circle to create the rope and wires. Cable and Harness is not a 5 min easy to learn module and can get very complex so keep it simple for now and work your way up to it. Quote
Lazer Posted June 15, 2013 Posted June 15, 2013 I changed the title of the thread for you to help others while they search;) Quote
