Lines and grid coordniation.??? Please help

Recommended Posts

OooWeh

Hello Everyone.I wonder if anyone can help.



I am using Autocad 2012 and have found an online tutorial site very informative.



The assignment in beginners lesson 1-2, drawing a simple line square, has me baffled

As they mentioned in lesson1-1 that understanding coordinates is very important.



Firstly, in 1-2, they ask the reader to select the line tool and then enter the first coordinate of 1,2 as the starting point of the drawing.

Then the following entries 3,2 3,4 1,4 and 1,2 are entered and sure enough a perfect square is created.



My first problem is:

As many times I enter a starting point of 1,2 the line always starts in the same place. However, if I start again and enter any other figure the line starts in seemingly unrelated positions.



The second problem is:

the coordinates given in this exercise are not equal and should not create a square in my uneducated opinion.

Try as I might I cant find the logical :? relation between the grid and the coordinates.



For example:

The starting entry - 1,2 starts 2 grid lines from the +Y axis and 4 lines from the +x axis.



Please could someone help me understand this problem so I can move on.



I have scanned all the tutorials and videos I could find including AutoCad for dummies and cant find the answer.



Thanks

Share this post


Link to post
Share on other sites
rkent

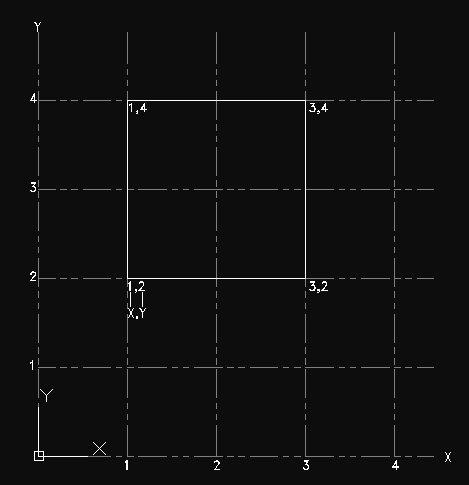

Look at the attached and see if it explains things for you.


Share this post


Link to post
Share on other sites
eldon

The second problem is:

the coordinates given in this exercise are not equal and should not create a square in my uneducated opinion.

Try as I might I cant find the logical :? relation between the grid and the coordinates.



if you examine the differences in the x and y coordinates for successive points, you will see the logic that will create a square.

Share this post


Link to post
Share on other sites
JD Mather

Watch out for Absolute coordinates # and Relative coordinates.

AutoCAD used to default to Absolute and now defaults to Relative @.

Edited by JD Mather

Share this post


Link to post
Share on other sites
OooWeh

Hi Rkent.

Thanks so much for your effort.

The penny has dropped.

What I realized was that the grid actually appears in 1 half increments.

I am no longer confused.



Thanks



Marc

Share this post


Link to post
Share on other sites
OooWeh

Thanks Eldon.



Got it

Share this post


Link to post
Share on other sites
OooWeh

Thanks JD



Your advise really helped.

I can now safely progress to section 1.2.

Share this post


Link to post
Share on other sites
OooWeh

This forum is certainly one of the best I have had the pleasure of visiting.

Share this post


Link to post
Share on other sites
