slickwillwize Posted November 21, 2008 Posted November 21, 2008 ok was asked to start a new thread and thank you for your advice in my first thread, gonna read it thoroughly but still abit stuck. ill up load what im trying to achieve so someone can say which method is best? ( i need to replicate these plans basically what iv uploaded. the REAR elevation is the one im truly stuck on, the roof work and the brick work i need to replicate that. any NEWBIE easy to follow rules would be great. cheers guys Ground Floor Plan.pdf Rear Elevation.pdf Quote
ReMark Posted November 21, 2008 Posted November 21, 2008 You want to draw these pdf's in AutoCAD? Do you have dimensions to work with? The hatch patterns for the brickwork and Spanish tiles should be available in AutoCAD. So, what is the exact nature of your problem? Quote
slickwillwize Posted November 21, 2008 Author Posted November 21, 2008 yes there on a 1:1 scale in mm, i printed them out and measured them and im in the process of doing them. just hit a snag with hatching. think im getting there but when i put the brickwork in it goes over my window frames. so i need to figure out how it misses out goin over them. if you know what i mean??? Quote

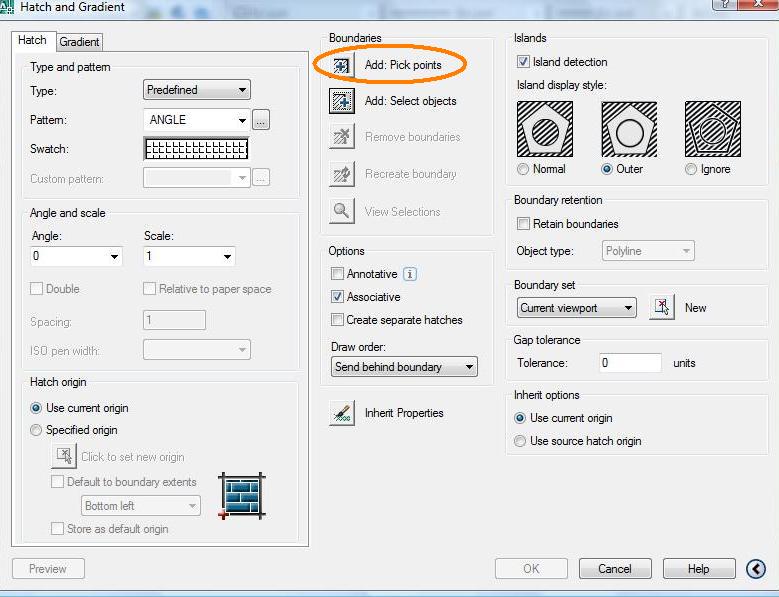

soleary Posted November 21, 2008 Posted November 21, 2008 yes there on a 1:1 scale in mm, i printed them out and measured them and im in the process of doing them.just hit a snag with hatching. think im getting there but when i put the brickwork in it goes over my window frames. so i need to figure out how it misses out goin over them. if you know what i mean??? Hi. When you are picking the boundary for your hatch make sure you use the 'Pick Points' option from the hatch dialogue box (see below). Then pick a point inside the wall but outside the windows. I'm guessing you used the 'Select objects' option and picked a point on the wall boundary itself Quote
slickwillwize Posted November 21, 2008 Author Posted November 21, 2008 i want to have your babies thank you mate!!! that did it cheers mucker Quote
ReMark Posted November 21, 2008 Posted November 21, 2008 soleary: Are you two gonna hook up right here at CT? I think we may need to post a warning. CT offers advice about CAD. It is not a dating service nor is it a fertility clinic. It must have been the reference to "hatching". :lol: Quote
soleary Posted November 21, 2008 Posted November 21, 2008 soleary: Are you two gonna hook up right here at CT? I think we may need to post a warning. CT offers advice about CAD. It is not a dating service nor is it a fertility clinic. It must have been the reference to "hatching". :lol: :lol: Didn't think autoCAD could excite someone THAT much.... It must have been the 'hatching' reference that triggered it alright Glad I didn't mention anything about 'insertion points'. Phew!!! Quote
ReMark Posted November 21, 2008 Posted November 21, 2008 Insertion points! Good one. LOL Remember to not only practice safe sex but safe computing too. Quote
slickwillwize Posted November 22, 2008 Author Posted November 22, 2008 the excitement that it brought to get it right!!! cheers guys, ill be asking more questions soon i bet. like how to has doors ???? Quote
