Revolve following path


Recommended Posts

Posted

Hi all,



I am new here and also new to Solidworks. I come across a problem I can not resolve.

I want to make a solid like a cone, but the base doesn't have to be a circle but an elipse. How can I make that happen? I tried many things but still not succeeded.



Thanks for reading, hope someone can help me out.

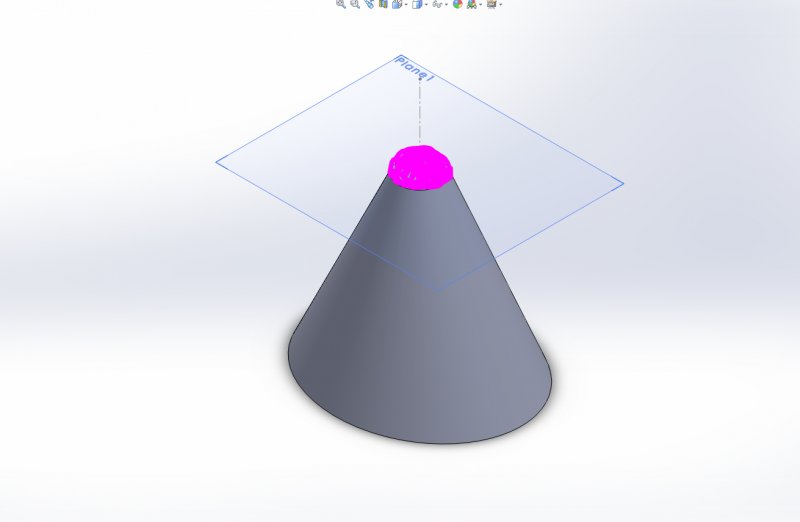

Below a screenshot of what I want to achieve...




Posted

Loft will be your solution.

What version of SWx are you using?

Posted

I will try that thanks. I am using the student version 2012.

Posted

Attach your attempt here if you can't figure it out.

I will try to remember to attach an example file later today.

Posted

attempedtwo.SLDPRT



The lofted Boss/base works. But only half. I figured out how it works with planes in solidworks, but how do I attach the top? there must be a reference to the top and the revolve or the plane right? Or do I have to make an other plane on top of the other two?



Thanks ....


Posted (edited)

I think you will need guide curves to control the shape.



See attached file (I shelled it just for fun.)

Change the offset distance for the workplane or the base dimensions on the sketch1 to edit.



attempedtwo.SLDPRT







If I get a chance - I will post even easier technique (depending on design intent).

attempthree.SLDPRT

Edited by JD Mather
Posted

Thank you for these solutions. I am realy new to solidworks. The shelled one you edited comes close....but what I want to have in the end is a real straight line starting at the bottom and only the top is curved, that's why I originaly started with a spline. Can I use splines instead of the curves in this case?

My guess is that I have to assamble it with two parts? I can't figure out what you did with the parameters of the curves itself.



There has to be a bottom on it in the end (the inside is hollow though)

Posted (edited)

I used Ellipse.

I suspect that what you really want is a line with tangent arc.

I will try to post another example in a few minutes.



attemp4.SLDPRT



You could also add a taper angle to Extrude1.

Edited by JD Mather
Posted

You helped me a lot! Thank you so much, starting to feel a tiny bit more comfortable with the program.

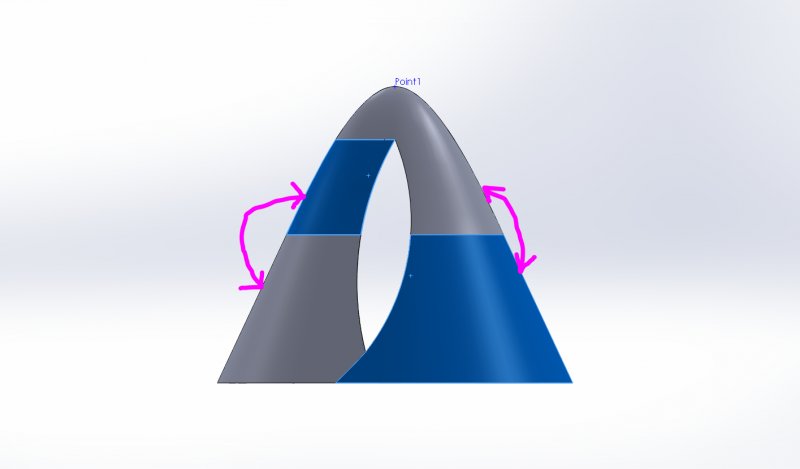

Next problem I come across is this: I made some extrude cuts and now ending up with 4 solid pieces, since I edited your last version. It should be two pieces and I want them seperated (a left and right piece) see attached file and screenshot



allmost.SLDPRT




Posted

I typed out a bunch of information and somehow lost it all.

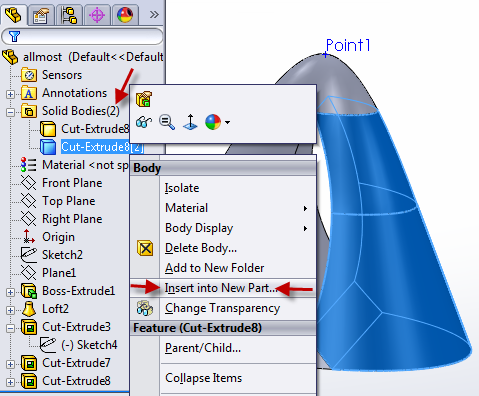

See the attached image and let me know if you can't figure it out.

Right click....



Multi-body solids.png

Posted

Got it, thank you so much.....I learned a lot!
