janeplain420 10 Posted October 9, 2013 Share Posted October 9, 2013 Can anyone show me how to draw 3D polylines, or convert single lines to polylines? Thanks, Jane Quote Link to post Share on other sites
BIGAL 718 Posted October 9, 2013 Share Posted October 9, 2013 Use 3dpoly and just enter x,y,z PE or polyedit and use the Join option. Quote Link to post Share on other sites
janeplain420 10 Posted October 9, 2013 Author Share Posted October 9, 2013 Thank you, that did the trick. Now I want to dimension the 3d lines. Is there a way to to that without aligning my UCS to each line I dimension? Quote Link to post Share on other sites
steven-g 175 Posted October 9, 2013 Share Posted October 9, 2013 Dimaligned works in LT I can't see it being that different in MEP (but it could ) Quote Link to post Share on other sites

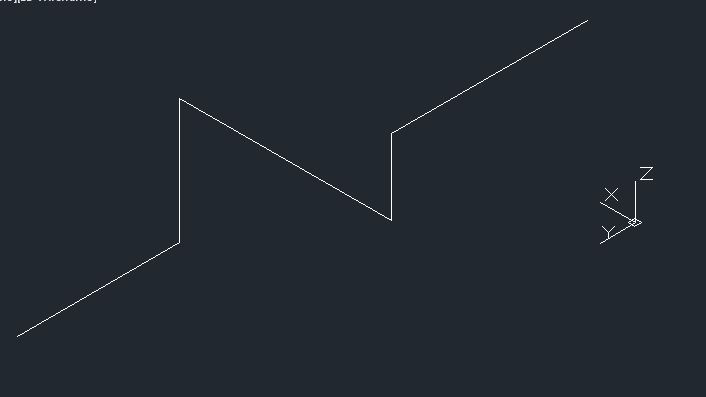

Tyke 10 Posted October 9, 2013 Share Posted October 9, 2013 (edited) Can anyone show me how to draw 3D polylines, or convert single lines to polylines? Thanks, Jane[ATTACH=CONFIG]44401[/ATTACH] If you have a set of 3D lines which have coincident end points, issue the JOIN command, select the lines and you will then have a 3D polyline. This also works in LT, which raises the question is LT still just a pure 2D CAD system? You have 3D views, but no ORBIT command, and you can draw 3D lines. Edited October 9, 2013 by Tyke Added extra information. Quote Link to post Share on other sites
steven-g 175 Posted October 9, 2013 Share Posted October 9, 2013 Shhh don't tell anyone, it's always been 3D it just depends on your definition of 3D (and how much work you want to do) Quote Link to post Share on other sites
Tyke 10 Posted October 9, 2013 Share Posted October 9, 2013 Shhh don't tell anyone, it's always been 3D it just depends on your definition of 3D (and how much work you want to do) OK, trap shut, eyes down and pretend I'm working Quote Link to post Share on other sites
BIGAL 718 Posted October 10, 2013 Share Posted October 10, 2013 LT users try Thickness !!! Quote Link to post Share on other sites
