Unable to snap Profile view

goorgoor

By goorgoor
in Civil 3D & LDD

 Share

Recommended Posts

goorgoor Apprentice

goorgoor

Posted
Posted

Hi,

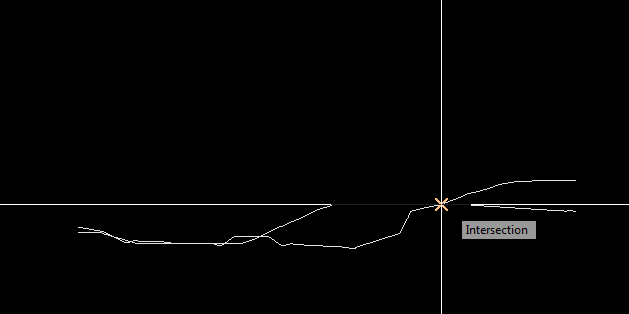

I have a profile view in drawing 1 and xref it to drawing 2. When i want to draw a polyline in drawing 2, snap function only works when to lines meet. Look at the attached picture.



However, i can snap freely in drawing 1 where the dynamic profile view is. :?



PS! All layers are on - no freeze, nothing hidden..


  • 2 months later...
JerryG Community Regular

JerryG

Posted
Posted

Make sure your Osnaps are the same for drawing two as for one.

Type "osnaps" and select "intersection" or "Apparent intersections"
