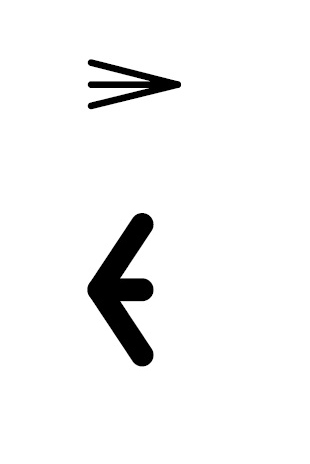

bumblebbabe Posted December 20, 2013 Posted December 20, 2013 When I plot my Autocad drawing, arrows (see attached image) pop up. I'm pretty sure they are coming in from one of my architecture x-ref files, but as they only pop up when the drawing is plotted, I cant seem to figure out how to turn them off. Any help at getting to where these little guys are coming from would be greatly appreciated Thanks Quote
RobDraw Posted December 20, 2013 Posted December 20, 2013 They say a picture is worth a thousand words but that one is worth like two. If you cannot see them, it is possible they are the same color as the background, i.e. black on black. Anything beyond that would be shear speculation. Can you post a couple of small files, base and xref, that exhibit the behavior? Quote
Tiger Posted December 20, 2013 Posted December 20, 2013 The look a bit like folding-arrows... are they on the layout? Does LAYON and LAYTHW show them? Purge/ Audit helps? Quote
