Converting to stl

[ohyahta]

Hi,



I am trying to export it as *.stl

So I typed "export" and typed filename as **.stl

then command window says "select solids or watertight meshes"



But I am not able to select it.

I guess the model is not solid?



Then How can I make it as solid model?

I attached file.



Please help me out....

THank you,

test.dwg

[ReMark]

Your model is comprised of surfaces.

[Cad64]

No, that is not a Solid. That is a collection of individual Surfaces. You should recreate the model using Solid editing commands.



http://www.we-r-here.com/cad/tutorials/level_3/3-10.htm

http://www.we-r-here.com/cad/tutorials/level_3/3-11.htm



I have moved your question to the 3D modeling section.

[ReMark]

Here's your drawing back with solids. Union them if you'd like. Why is the cylinder on the left longer than the one on the right? Was that intentional?



Test_ReMarks.dwg

[ohyahta]

thank you!



um.. is there any way to create solid using existing surfaces?

(Yes. one cylinder is longer than other one)



Thank you again!

[ReMark]

Yes, if they are watertight. Use the SURFSCULPT command. I tried it on your model but it failed.



Command: SURFSCULPT

Mesh conversion set to: Smooth and optimized.



Select surfaces or solids to sculpt into a solid: Specify opposite corner: 15 found



Select surfaces or solids to sculpt into a solid:



Modeling Operation Error:

Operation did not add or remove material.



Solid creation failed, no watertight volume detected.



You could also use the THICKEN command which will give you a solid.

[ReMark]

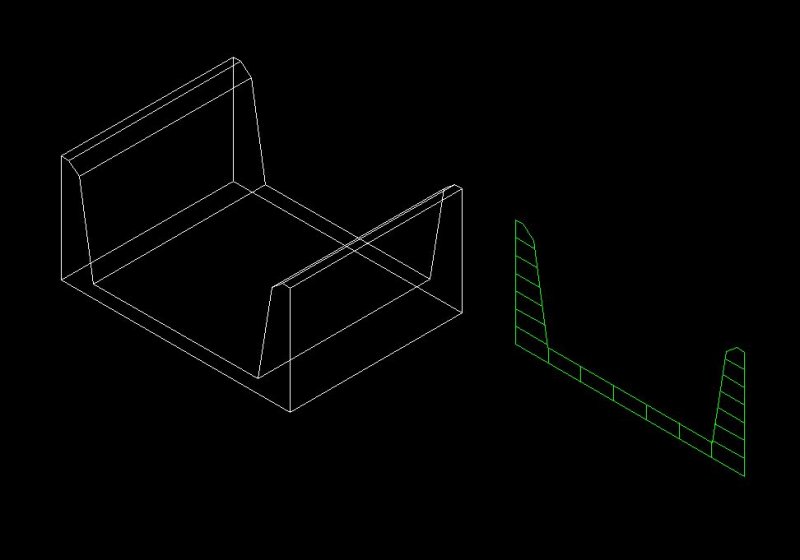

Using the THICKEN command to create a solid. Your surface is on the right in green.

You could use the same procedure on both your cylinders.
