MSasu Posted March 31, 2014 Posted March 31, 2014 No, I'm afraid that isometric sketch is wrong! Please pay attention that there were many sloped faces, not just one. Quote
MSasu Posted March 31, 2014 Posted March 31, 2014 Mikeyyy, please edit your previous post and up-load the pictures on CADTutor; as already pointed in your previous thread, the third-part repository you used may not be accessible for some people that will be willing to provide help to you. Quote

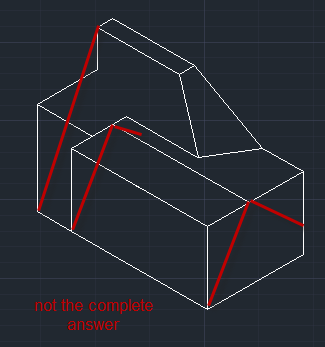

rkent Posted March 31, 2014 Posted March 31, 2014 There are sloping lines you aren't accounting for, see attached for a partial correction of your post. Quote
