slurped Posted May 26, 2014 Posted May 26, 2014 Hello. I've to design a mechanism similar to the one that a dump truck uses. I'm a bit clueless about how to turn my sketch (I've the image) into an assembly. Here is the link to the sketch (SLDPRT) that I've done: https://mega.co.nz/#!3oRj3axB!9bi95ieEnAmpNVBML0Ud2FuapOgRDJCNUorhdVzgBmA . Can anyone help me? Thank you very much. Quote
JD Mather Posted May 26, 2014 Posted May 26, 2014 Can you zip and attach your file(s) here? What version of SolidWorks are you using? Quote
slurped Posted May 27, 2014 Author Posted May 27, 2014 Can you zip and attach your file(s) here? What version of SolidWorks are you using? Yes, the link is on the post but I'll upload it here anyway. Thank you so much. Sketch.rar Quote
JD Mather Posted May 27, 2014 Posted May 27, 2014 zip is not rar. I would have to download a 3rd party software to extract rar. As already indicated - I avoid anything that might dirty my machine. Windows OS will create and extract *.zip files. In Windows Explorer right click on filename and select Sent to Compressed (zipped) folder. You also did not follow my instructions to state what version of SolidWorks you are using. This is critical information as the files are not backwards compatible. Good luck with your project. Quote
slurped Posted May 27, 2014 Author Posted May 27, 2014 zip is not rar.I would have to download a 3rd party software to extract rar. As already indicated - I avoid anything that might dirty my machine. Windows OS will create and extract *.zip files. In Windows Explorer right click on filename and select Sent to Compressed (zipped) folder. You also did not follow my instructions to state what version of SolidWorks you are using. This is critical information as the files are not backwards compatible. Good luck with your project. Sorry, I attach the .zip file in this message. I'm using the SolidWorks 2013 Student Edition. Thanks in advance. Pieza2.SLDPRT.zip Quote

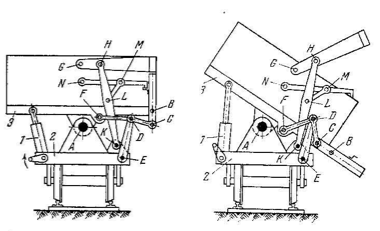

slurped Posted May 27, 2014 Author Posted May 27, 2014 If it helps, here is the jpg file in which the sketch is based: Quote
austinr01 Posted July 23, 2014 Posted July 23, 2014 Hi, I have a video link on assembly design with solidworks. If you are interested to know how to design assembly through solidworks, you can see here: Hope this information help for you! Have a Great day... Quote
