inlet pipe of radius 160 (ILRU160)

[dme]

Hi



I'm new to AutoCAD. I'm trying to make a inlet pipe of radius 160 (ILRU160)



I have been trying with two circles and an arc and the use the command LOFT. Is this the right way?



Please give me some ideas.



Thanks

[JD Mather]

Revolve sounds easier.

Can you attach your dwg file here?

[dme]

Thanks for the tip. Revolve was the solution :-)

[BIGAL]

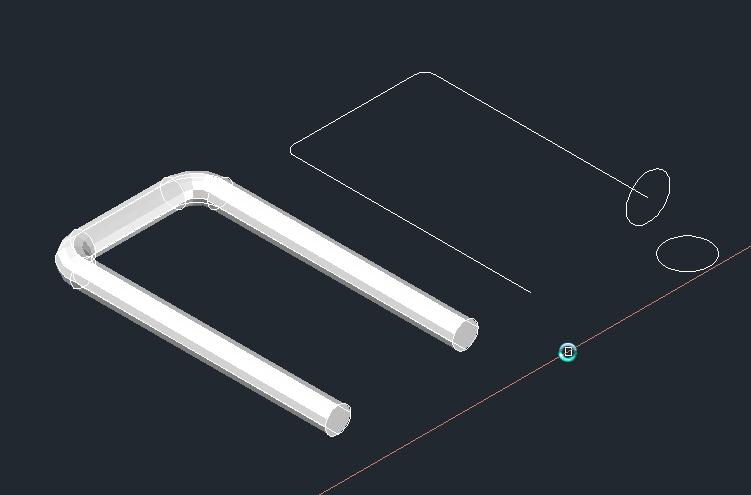

Have you tried a pline with c/l radius draw a circle = dia pipe, use rotate3d to rotate circle sq to end of pline use a 3d view to see whats going on vpoint 1,1,1 then Extrude circle path.
