Routine to set location of Ordinate Dimension Text...

[lamensterms]

Hey guys,



Just wondering if someone can please help me get the following code working?



(DEFUN C:fRD ()
(prompt "\n Select DIMENSIONS to fix offset...")
(Setq ss (ssget '((0 . "DIMENSION") (-4 . "<OR") (70 . 38) (70 . 102) (70 . 166) (-4 . "OR>"))))

(setq gpt1 (getpoint))

 (setq num (sslength ss));n° object
 (setq con 0)
 (repeat num
 (setq ent3A (ssname ss con))
 (setq con (1+ con))

(setq vObje (vlax-ename->vla-object ent3a))
             (vlax-put-property vObje '[color="red"][b]TEXTPOSITIONY[/b][/color] (CADR GPT1))
           )


(princ)
)



The aim is to be able to select a bunch of ordinate dims, and then pick a point and the Y value of this new point will be assigned to the "Text Position Y" of the ordinate dimensions selected... I hope that makes sense.

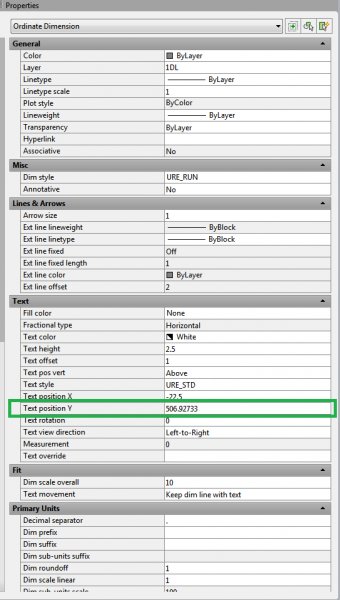

The problem I am having is I do not know the correct variable name for TEXTPOSITIONY, so I was wondering if someone could please enlighten me? Or if someone knows of a resource where all the Active X variables are listed - that would also be great.



Thanks a lot for any help, looking forward to hearing back.



[Tharwat]

Replace this part .



(vlax-put-property vObje 'TEXTPOSITION (vlax-3d-point (list (car (cdr (assoc 14 (entget ent3A)))) (cadr gpt1))))



Get the habit of localizing variable to avoid interventions between values - variables .

[lamensterms]

Ah awesome, thanks so much for that Tharwat. Yes, it is a bad habit of mine not to localise the variables, I will do it though haha.



Thanks again for the help.

[Tharwat]

Ah awesome, thanks so much for that Tharwat. Yes, it is a bad habit of mine not to localise the variables, I will do it though haha.



Thanks again for the help.



You're welcome and I am happy to help

[lamensterms]

Hi again Tharwat,



After a bit more testing, I have got the code working exactly how I wanted it - so thanks again for your help.



(DEFUN C:fRD ( / ss gpt1 num con ent3A vObje )
(command "ucs" "W")
(prompt "\n Select DIMENSIONS to fix offset...")
(if (Setq ss (ssget '((0 . "DIMENSION") (-4 . "<OR") (70 . 38) (70 . 102) (70 . 166) (70 . 230) (-4 . "OR>"))))
(progn
(setq gpt1 (getpoint))

 (setq num (sslength ss));n° object
 (setq con 0)
 (repeat num
 (setq ent3A (ssname ss con))
 (setq con (1+ con))

(setq vObje (vlax-ename->vla-object ent3a))
             (vlax-put-property vObje 'TEXTPOSITION (vlax-3d-point (list (car (cdr ([color="red"]assoc 11[/color] (entget ent3A)))) (cadr gpt1))))
           )
)
)
(command "ucs" "p")
(princ)
)



A change I made was to use ASSOC with DXF Code 11 - as this seemed to produce better results regarding the base points of the text. Does that sound right to you?

[BIGAL]

Using the dump option on an object oftens reveals the variable name you were after, often a slight difference from what is displayed in properties.



; TextMovement = 2

; TextOutsideAlign = 0

; TextOverride = ""

; TextPosition = (351.838 301.785 0.0)

; TextPrefix = ""

; TextRotation = 0.0

; TextStyle = "ISO2.5"





;;; Dump all methods and properties for selected objects              ;
;;;===================================================================;
;;; DumpIt                                                            ;
;;;-------------------------------------------------------------------;
;;;===================================================================;
(defun C:DumpIt ( / ent)
 (while (setq ent (entsel))
   (vlax-Dump-Object
     (vlax-Ename->Vla-Object (car ent))
   )
 )
 (princ)
)

[Tharwat]

Hi again Tharwat,



After a bit more testing, I have got the code working exactly how I wanted it - so thanks again for your help.



A change I made was to use ASSOC with DXF Code 11 - as this seemed to produce better results regarding the base points of the text. Does that sound right to you?



You're welcome .



Yes , to confirm between my approach and yours , have a look HERE.

Using the dump option on an object oftens reveals the variable name you were after, often a slight difference from what is displayed in properties.



;;; Dump all [color=red]methods[/color] and properties for selected objects              ;
;;;===================================================================;
;;; DumpIt                                                            ;
;;;-------------------------------------------------------------------;
;;;===================================================================;
(defun C:DumpIt ( / ent)
 (while (setq ent (entsel))
   (vlax-Dump-Object
     (vlax-Ename->Vla-Object (car ent))
   )
 )
 (princ)
)



BIGAL , to have the methods as well , you should add the T to vlax-dump-object funtion . see HERE.

[BIGAL]

Thanks Tharwat patched the version I copied from and added T for future use.

[lamensterms]

Awesome, thanks for the help Tharwat and BigAl.

[Tharwat]

Happy to help guys.
