How to find out the geometrical properties (orientation) of a surface in a 3D space

[castagnaccio]

Hello everyone ,

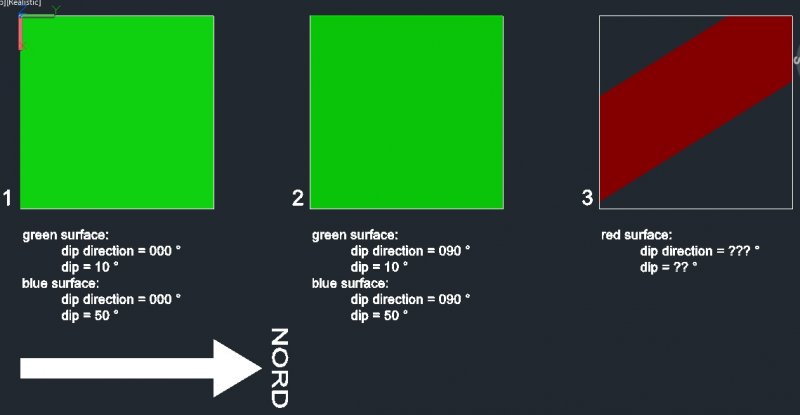

following this graphical representation:

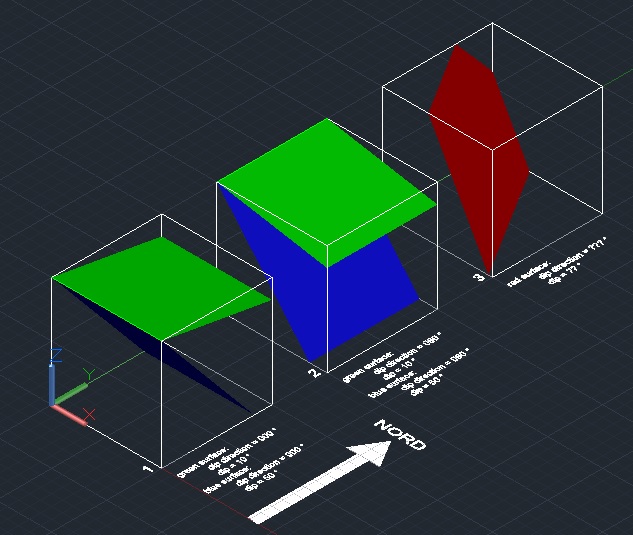

I was wondering if there is a method in autocad to know the orientation of the red surface inside the 3rd cube (cube nr. 1 and 2 are examples). The orientation is dip direction and dip of the surface the considering the Y axis as the Nord (see images below).



Here is also the dwg file:

cadtu.dwg







ps: sorry for my English

[SEANT]

One way would be to draw a line normal to that face. Set a UCS aligned to the face, then create a line from 0,0,0 to 0,0,100.





That line can then be dimension via its angular displacement from the two pertinent directions.

cadtu_withNormal.dwg
