How to Axis Slice a Half Ring from top to bottom (pls see image attached)

Recommended Posts

elementp

How do i Axis Slice a Half Ring from top to bottom (pls see image attached) , starting from the top yellow line of the half ring on the left to the bottom ending yellow line of the half ring on the right . ?



it will be a curved half ring , like a ramp ...


Share this post


Link to post
Share on other sites
JD Mather

Sounds to me like you want to do a Helix.

You could do a Loft, but it would be easier to Sweep a line as a Helix and then Thicken the surface to a solid.

Attach your *.dwg rather than an image file if you can't figure it out.

Share this post


Link to post
Share on other sites
elementp

yes you are right . !! i created to Helix , inner one and outer one then i created two lines like the yellow ones . then i used the join command so now i have a wire frame.



how do i turn the wire farm into a surface ? I'm guessing i can somehow slice it after i have a surface or do you think i can slice the 3d ring with a wire frame. ...?



thanks

Edited by elementp

Share this post


Link to post
Share on other sites
ReMark
How do i Axis Slice a Half Ring from top to bottom (pls see image attached) , starting from the top yellow line of the half ring on the left to the bottom ending yellow line of the half ring on the right . ?



it will be a curved half ring , like a ramp ...



Since you only have half a turn couldn't you create a closed profile, with different heights, at each end then use the LOFT command with the GUIDE option?



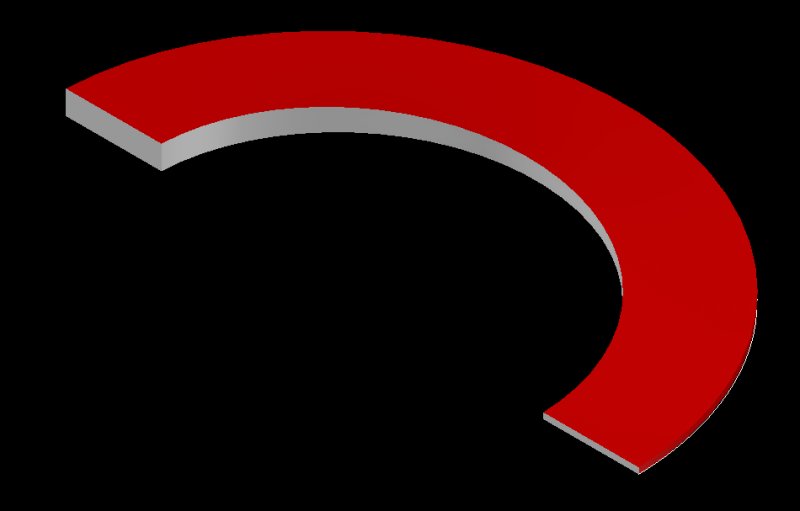

Like this for example...




Share this post


Link to post
Share on other sites
ReMark

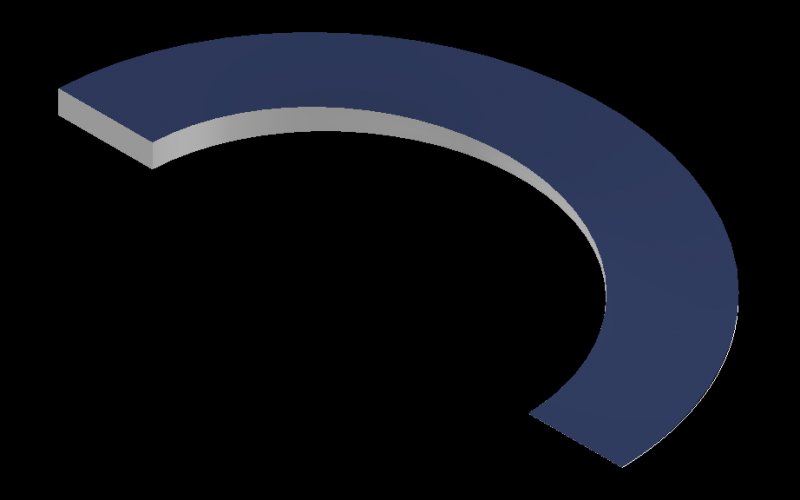

This example tapers to a much thinner profile. The heights at each end are 1.0 and 0.1.

Share this post


Link to post
Share on other sites
elementp
[ATTACH=CONFIG]50592[/ATTACH]

This example tapers to a much thinner profile. The heights at each end are 1.0 and 0.1.



Yes I can aslong as I can also provide the dimensions to the CnC company .



But I don't know how to work the loft guide option . Any chance u can provide directions? Or and a file so I can view it on autocad?



Inner radius is 220, outer is 330, hight is 15, and 1



That would be really great if I can learn how to make it.



Thanks

Edited by elementp

Share this post


Link to post
Share on other sites
ReMark

Start the Loft command. Pick the objects (two profiles) to be lofted. Hit the Enter key then select the Guide option. Now pick one of the two partial helixes.



You are aware that AutoCAD has a Help file that explains how the various commands and their options work aren't you?

Share this post


Link to post
Share on other sites
rkent
Yes I can aslong as I can also provide the dimensions to the CnC company .



But I don't know how to work the loft guide option . Any chance u can provide directions? Or and a file so I can view it on autocad?



Inner radius is 220, outer is 330, hight is 15, and 1



That would be really great if I can learn how to make it.



Thanks



Use the helix command, use the 220 dim, create a .5 turn, height of 15. Draw a rectangle 110 wide, 1 high. Sweep, pick rectangle, hit enter, pick Alignment, pick helix.

Share this post


Link to post
Share on other sites
ReMark

The result would not be tapered though. Isn't that what the OP is looking for?

Share this post


Link to post
Share on other sites
rkent
The result would not be tapered though. Isn't that what the OP is looking for?



I am not sure, I assumed not tapered, hence my answer.

Share this post


Link to post
Share on other sites
elementp

yes, but it doesn't explain to that level ...



its the more i try things the more i learn ...



i have attached where i am at this moment ...



one i tried to slice .... or revolve ... didn't work . the other is what you suggested and the lofting guide leads me to no where



what next nothing works ..

Drawing3-helix.dwg

Drawing3-helix2.dwg

Share this post


Link to post
Share on other sites
ReMark

Maybe I'm the one who is mistaken although I thought he wanted the ramp sliced from the top at one end to the bottom at the other.

Share this post


Link to post
Share on other sites
ReMark

rkent will probably be able to tell you where you went wrong before I can since I am not on my CAD computer and have no way to view your drawings at the moment. Sorry.



You did want a "tapered" ramp though didn't you?

Share this post


Link to post
Share on other sites
elementp

thanks i am downloading it ... i don't know what tapered means so i can't answer yet.



on my file i am at this point . i finally have the surface and the 3d shape. i just need to slice the 3d with the surface .



any idea? i can't pick the surface for some reason ...

Drawing3-helix-4.dwg

Share this post


Link to post
Share on other sites
elementp

thanks so much it was super simple that way !!!!



i just needed to play with the UCS so i can draw on the Z axis ... the rest so simple!!! thank you and everyone out here trying to help.

Share this post


Link to post
Share on other sites
ReMark

BTW...tapered...pertaining to an object that is thicker at one end than it is at the other. Think of a "wedge".

Share this post


Link to post
Share on other sites
