Dynamic block help

[jaff]

I have a block that I would like to use for different scales. See attached.

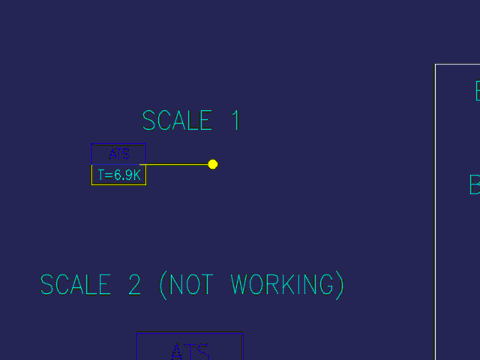

I have a simple box with text attributes and a leader that has a solid circle in lieu of arrow, however when I change my dynamic block from the small scale to the bigger scale the solid circle will not follow through. See attached file.

Thanks for the help

SW TAG.dwg

[nestly]

The Circle and the Hatch are not included in the Scale Action. After adding them to the Scale Action Selection Set, the block seemed to work properly.



[nestly]

oops.... I missed the note in the lower left of the drawing. Instead of adding the circle and Hatch to the Scale Action, apply a Coincident constraint between the endpoint of the line and the center of the circle.

[zaphod]

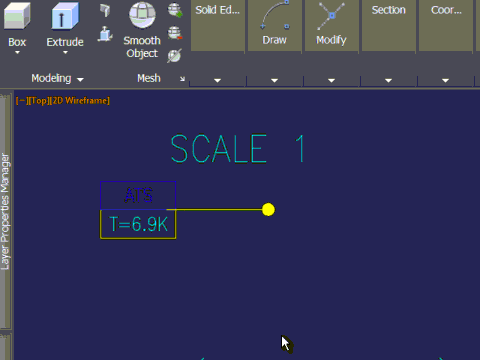

like this?

a simple Coincident on the end point and the circle seems to have solved it.

SW TAG2.dwg

[jaff]

Nestly,



Thanks for the prompt reply, but would yo please send me a screen shot of what you mean. I was trying to accomplish my task by using move action or point parameter but neither worked.

[jaff]

Nestly,



Thank you so much for the help.

I have few more questions.

How do you add the coincidence constraint? is this a new feature for autocad? I am using LT2012 will I be able to use it?

Edited February 10, 2015 by jaff
need to to know more about coincidence constraint

[nestly]

I'm using 2015 at the moment, but I believe Geometric Constraints should be in the 2012 Block editor Ribbon.



[SLW210]

AFAIK LT doesn't have constraints.

[jaff]

Thanks Nestley. I appreciate it.
