grain Posted March 3, 2015 Posted March 3, 2015 Its all in the title really. I'm wanting to plot the movements of staff in a kitchen using a thick dashed line. What I get is the dashed all blending together on the bends. Is it possible to produce a spline line with a regular dashed thick line. Quote

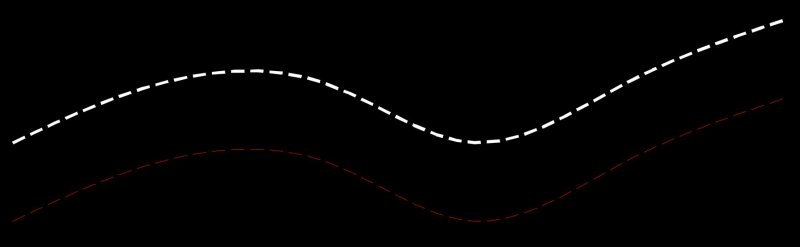

ReMark Posted March 3, 2015 Posted March 3, 2015 (edited) You want a spline, that has a width (like a polyline might have) that is also dashed? I'd suggest converting the spline to a polyline and assigning it a width. Not an option? Then handle it via the Lineweight property in your Layer Properties Manager. My attempt yielded this result. Spline (in red) at bottom. Converted spline to polyline (in white) at top. Width applied and Linetype Generation has been Enabled via Properties. Edited March 3, 2015 by ReMark Quote
