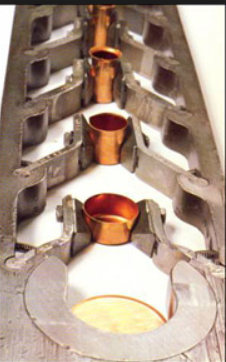

zaphod Posted March 17, 2015 Posted March 17, 2015 hi i was wondering if inventor sheet metal can work out the blank diameter of a deep drawn stamping, similar to the image. thanks. Quote
ReMark Posted March 18, 2015 Posted March 18, 2015 What! How can that be? I thought Inventor was a modern CAD program capable of even the mightiest of feats. Next you'll be telling me Superman really can't fly. Then I'll be really devastated. Just good-naturedly heckling you JDM.:lol: Quote
Lazer Posted March 18, 2015 Posted March 18, 2015 Remark it can do a lot of things but sadly not blanks from deep drawn parts using sheetmetal or fly Quote
zaphod Posted March 18, 2015 Author Posted March 18, 2015 it can fly, I'm about to throw my computer out the window. the part I was trying to make is fairly simple by comparison, but it is formed in a similar matter. Quote
SLW210 Posted March 19, 2015 Posted March 19, 2015 There is an Add-On for AutoCAD...http://www.striker-systems.com/Products/DieDesign/SSDraw.aspx Other than that, you'll just have to use a formula in Excel or something AFAIK. Maybe this will help you...http://thelibraryofmanufacturing.com/deep_drawing.html Quote
