Sheetset Drawing Number

[adamsdr3]

Let me start out by saying that I'm much more fluent in excel VBA than I am in autoCAD vba.



I have around 200 drawings in sheet set. Half of the sheet numbers are just numbers and the other half are numbers with a D at the end. I want to add a dash before the D if the sheet number has one. Basically, I need to make this



1

1D

2

2D

3

3D



look like this



1

1-D

2

2-D

3

3-D



I wrote something that would do it in excel if it helps but I have no idea how to specify the sheet set or even the sheet number property for each drawing...Here's what I wrote in excel. It's simple and it works great.



Public Sub demolition()

For Each cell In Range("E6:E13")

If Right(cell.Text, 1) = "D" Then

cell.Value = Left(cell.Text, Len(cell.Text) - 1)

End If

Next cell


End Sub

Edited October 6, 2015 by adamsdr3

[Lt Dan's legs]

Is it text or block attribute? Individual dwg's? all one but different viewports?









I'm not sure this will help but...

(setq lst '("1" "1D" "2" "3" "3D" "4"))

(repeat (setq n (length lst))
 (and (wcmatch (strcase (nth (setq n (1- n)) lst)) "*D")
   (setq lst
     (subst (vl-string-subst "-D" "D" (nth n lst))
       (nth n lst) lst
     )
   )
 )
)

[adamsdr3]

It is neither text or a block attribute. They are all individual dwg's with different viewports. I basically just need to change the sheet number property within sheetset

[Lt Dan's legs]

the tab names? or drawing (dwg) names? Forgive my ignorance, I haven't had to deal with sheet sets in 8years

[adamsdr3]

Each sheet set has subsets (what I think you're callings tabs). Within the subset are the sheets. Each sheet in sheet set has 2 properties; a sheet number and a sheet title. The code that I need to run effects the sheet number.

[Lt Dan's legs]

For just the active document.



(vlax-for x (vla-get-Layouts (vla-get-activedocument (vlax-get-acad-object)))
 (and (setq n (strcase (vla-get-name x)))
   (eq (substr n (setq nl (strlen n)) 1) "D")
   (vla-put-name x (strcat (substr n 1 (1- nl)) "-D"))
 )
)

For multiple dwgs

(vlax-for d (vla-get-documents (vlax-get-acad-object))
 (vlax-for x (vla-get-Layouts d)
   (and (setq n (strcase (vla-get-name x)))
      (eq (substr n (setq nl (strlen n)) 1) "D")
     (vla-put-name x (strcat (substr n 1 (1- nl)) "-D"))
   )
 )
)

Edited October 6, 2015 by Lt Dan's legs
Cleaning things up

[adamsdr3]

Thanks for your help. Before I run this on the test sheetset I made, how does it select the sheetset that it runs on? is it the set that is currently active?

[Lt Dan's legs]

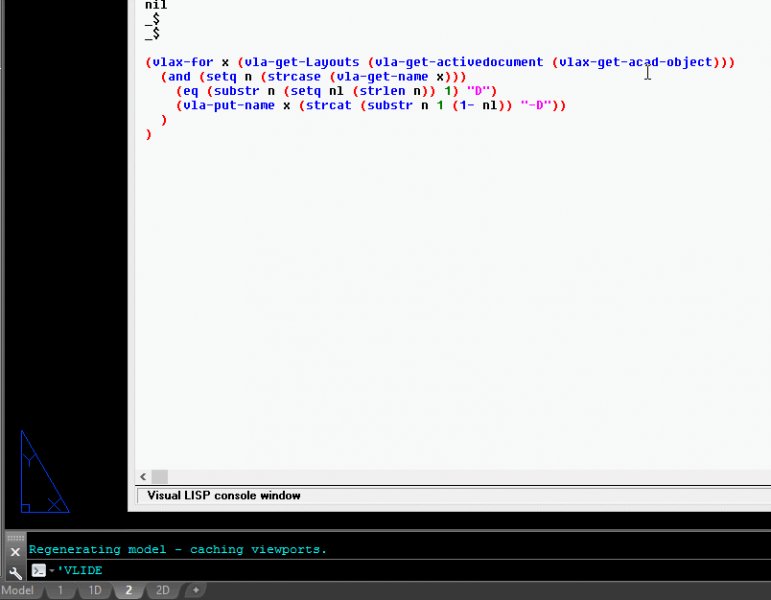

check the gif out. I hope this is what you want (fingers crossed)

[adamsdr3]

I'm honestly completely lost. I read up on how to load a LSP file. I pasted the text into notepad and saved the file with a .LSP extension. then I loaded it into autocad and typed the name into the prompt. here is the result.



Sorry. Still new to Lisp http://imgur.com/QCeXiC2

[Tharwat]

Dan, the Sheet set is different than layouts though Sheet set can not be modified or in other words AutoLISP have no access to Sheet sets at all.

[Lt Dan's legs]

I see. See comment #4. lol



Thank you for your input, Tharwat. I would've been driving myself crazy over this

[adamsdr3]

I found the code I need to change the sheet number property, now all I need is a way to loop through them all. In excel, I just defined the cells I need to loop through as a range. Does anyone know if there is a way to do something similar for the sheets in a subset in VBA?

[Tharwat]

I see. See comment #4. lol

Sorry , I have read all OP's replies to get sure if they meant Layout in any other words but couldn't find any, so that's why I wanted to pay your attention to it.

Edited October 7, 2015 by Tharwat
