Picking Dimension Points

gbradley

By gbradley
in Autodesk Inventor

 Share

Recommended Posts

gbradley Collaborator

gbradley

Posted
Posted

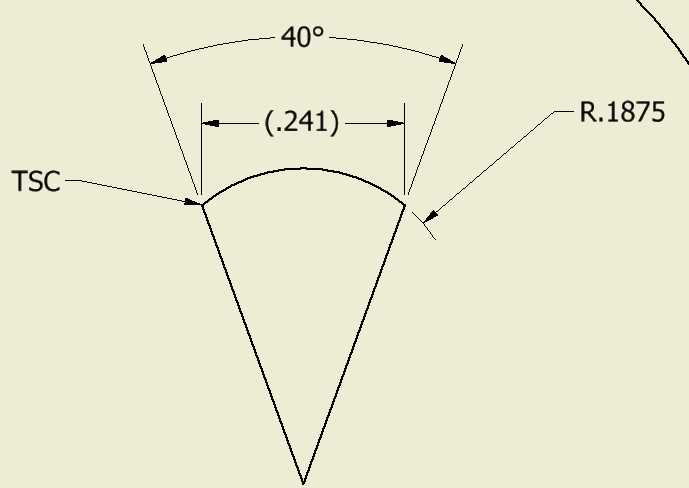

I tried Right-clicking and using Intersection, but I can't seem get the Theoretical sharp Corner pick points on this part.

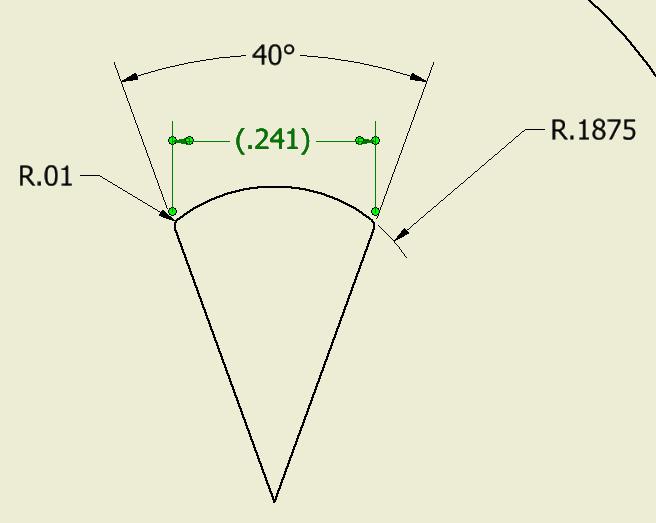

I went back and drew the sketch with sharp corners and then added the Fillets in the Model.

Then I was able and go back and Retrieve the Dimension.

I wonder if there is any other way?



BIGAL Grand Master

BIGAL

Posted
Posted

Try using the Node option the ends of the dimensions have a node.
