Need help to make a surface

Recommended Posts

Faouweb

Hi :)

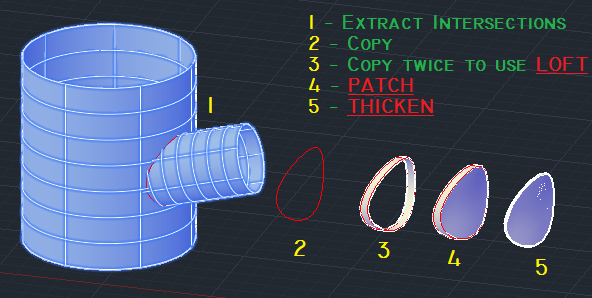

I have used the Extract Intersections between two surfaces to get a complex line but I dont know how to give a thickness to it :(

How can I give a thickness to make it a solid?

Thank you ;)


Share this post


Link to post
Share on other sites
ReMark

Have you tried the THICKEN command?



BTW...the red object. Is it a spline? If it is then THICKEN will not work. However you could loft two splines to create an extruded surface then use THICKEN to create a solid.

Edited by ReMark

Share this post


Link to post
Share on other sites
halam

Make the two primitive forms. Them use the interfere command to create the boolean operation. Them You get the surface that way (after you explode the solid) then all you need to do is thicken the surface.. You could also duplicate it and subtract them. Maybe there are smarter ways..)

Share this post


Link to post
Share on other sites
f700es

+1 to Halam. This is the method I thought of and it seems to work on my end in r2015

Share this post


Link to post
Share on other sites
Faouweb

Thank you ReMark and halam for your help.

BTW...the red object. Is it a spline? If it is then THICKEN will not work. However you could loft two splines to create an extruded surface then use THICKEN to create a solid.
Make the two primitive forms. Them use the interfere command to create the boolean operation. Them You get the surface that way (after you explode the solid) then all you need to do is thicken the surface.. You could also duplicate it and subtract them. Maybe there are smarter ways..)

I have 2 solutions ;)


Share this post


Link to post
Share on other sites
halam

Why so difficult anyway? Just ✂ it and throw away this pipe garbage.. :)

Share this post


Link to post
Share on other sites
ReMark

Probably because he thought he was already 90% of the way there?

Share this post


Link to post
Share on other sites
marmo

To obtain a solid like n.3 you could use sweep.

to obtain a form like n.5 you could break the curve in 4 parts.then use edgesurf and then thicken.

Share this post


Link to post
Share on other sites
