shadowblitz3

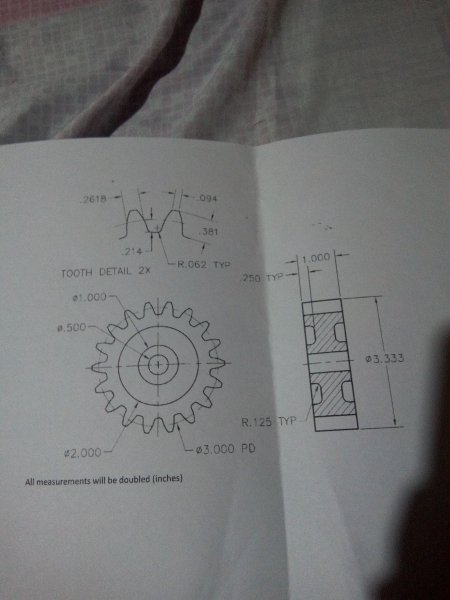

need help in my final plate, make this figure into oblique view with the upper right part removed

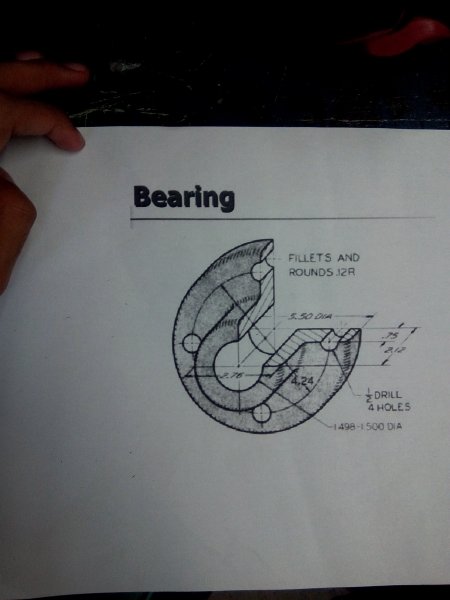

similar to this one


Share this post


Link to post
Share on other sites
ReMark

Does the assignment instructions actually use the word oblique? Personally, as regards the object (gear) you must draw, I don't see the benefit to creating an oblique view. In this situation I'd say an isometric view would be more preferable.

Edited by ReMark

Share this post


Link to post
Share on other sites
shadowblitz3

well our instructor literally just said make a view of the object similar to that of the second figure's which I thought was in oblique view

Share this post


Link to post
Share on other sites

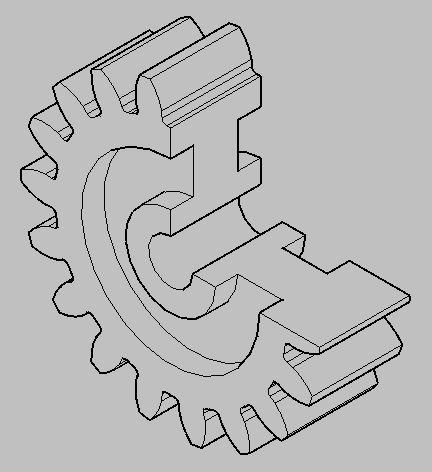

ReMark

Since he said "similar" I might interpret that as being isometric. Who's to say? So, for example, you might have this...






Add a little hatching and you're done.

Share this post


Link to post
Share on other sites
shadowblitz3

it should be in oblique/cavalier view apparently according to a classmate I asked

Share this post


Link to post
Share on other sites
RobDraw

IMHO, that type of projection is obsolete in CAD. I would make sure you are understanding the assignment correctly by checking with your instructor before proceeding.

Share this post


Link to post
Share on other sites
ReMark
it should be in oblique/cavalier view apparently according to a classmate I asked

Have you studied object orientations rules for the construction of oblique projection?

Share this post


Link to post
Share on other sites
rkent
well our instructor literally just said make a view of the object similar to that of the second figure's which I thought was in oblique view



You are correct and you have a good example of what is wanted. What help are you actually needing? You draw the gear front view and then receding lines all at a common angle.

Share this post


Link to post
Share on other sites
lrm

Make a front view drawing of the object then make a copy of it at and angle of 45° up to the right a distance of 0.75. Make another copy at an angle of 225° (45° down to the left) a distance of 1.37 (2.12-.75). Then edit as necessary.




Share this post


Link to post
Share on other sites
ReMark

I think the OP has to create an oblique view of a gear.

Share this post


Link to post
Share on other sites
