How to create multiple point offset.

gmmdinesh

By gmmdinesh
in AutoCAD 2D Drafting, Object Properties & Interface

 Share

Recommended Posts

gmmdinesh Collaborator

gmmdinesh

Posted
Posted

Hi.

Does anyone know how to offset a polyline to different distance?

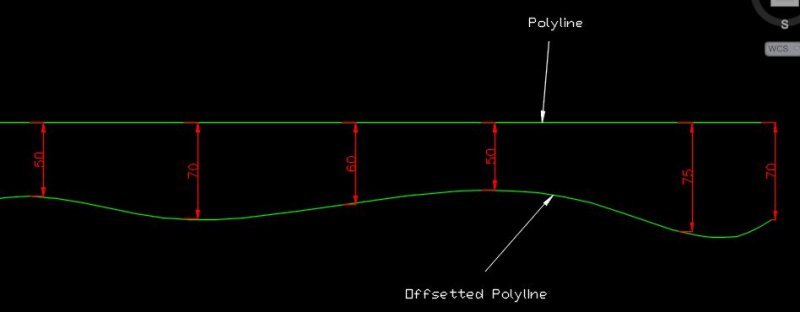

(like Attached file)






Thanks in advance.

Dinesh P

ReMark Grand Master

ReMark

Posted
Posted

I doubt it is possible to offset a single polyline multiple distances to produce a new (single) polyline as shown in the image you have posted.

BIGAL Grand Master

BIGAL

Posted
Posted

Like Remark you need a formula or rules as to how the "NEW" pline is to be created. Not offset.
