Multiple Actions On Lookup Parameter

Recommended Posts

RyanAtHC

I am having trouble accomplishing this in ACAD 2017.



https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2016/ENU/AutoCAD-Core/files/GUID-CCF67081-3278-42D6-8AB1-BFF4EB50FB6B-htm.html



When I add the second lookup action to the new parameter set, it will only show one action when I use the new parameter set, despite the fact that it shows two actions in the properties menu of the new parameter set. I cannot add a second action to the parameter. It says that it is already associated with a lookup table.



Any info would be very helpful.



Thanks!

Share this post


Link to post
Share on other sites
steven-g

What exactly are you trying to do?

Share this post


Link to post
Share on other sites
RyanAtHC

I'm trying to use the array command to only apply certain attributes based on the length of the array. I have the array command, a visibility set, and a lookup command. I need to reference the array length and the visibility from the lookup command, which are different objects and have the visibility set to make sure the appropriate attributes are displayed.



I tried adding the visibility column to the lookup table, but the block would not work quite right. The example I have (attached) shows two actions on one lookup, but I cannot recreate it. I can delete the old linework in the example, and replace it with my own, but I will not send anything out that I cannot create on my own.

SectionSample.dwg

Share this post


Link to post
Share on other sites
steven-g

So do you just want to be able to add a double lookup to the parameter set in the block editor, or figure out how to use that once you have it set up?

Share this post


Link to post
Share on other sites
RyanAtHC

Correct, when I follow the steps in the link in my first post, the new parameter set only shows one action when two are listed in the properties.

Share this post


Link to post
Share on other sites
RyanAtHC

Oops misread. I want to add the double parameter. I have already used the one to set up what I want. I want to be able to do it from scratch.

Share this post


Link to post
Share on other sites
RyanAtHC

Part of me thinks an issue with 2017 because I've seen videos of it being done in earlier versions. When the same steps from the link were followed in the video, a parameter appeared with two actions, just like in the example file I sent.

Share this post


Link to post
Share on other sites
steven-g

It does work, give me a minute to grab a few screen shots

Share this post


Link to post
Share on other sites
steven-g

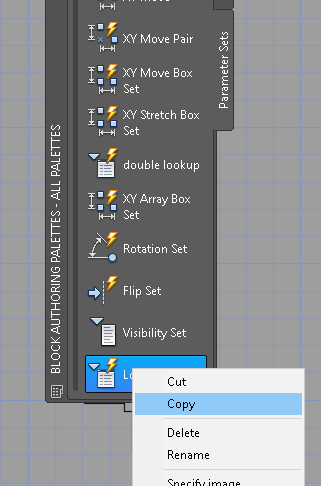

Right click the lookup parameter set and select copy

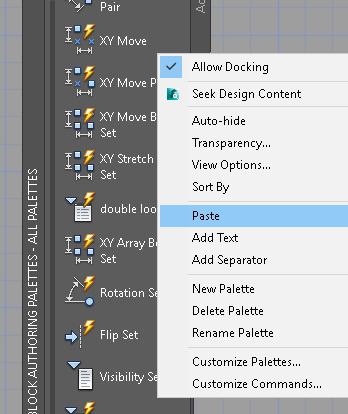

Right click again somewhere between 2 of the sets (where nothing is highlighted) and paste,

Right click on the new set and rename it “Double lookup set”, and then again right click on the new set and select properties

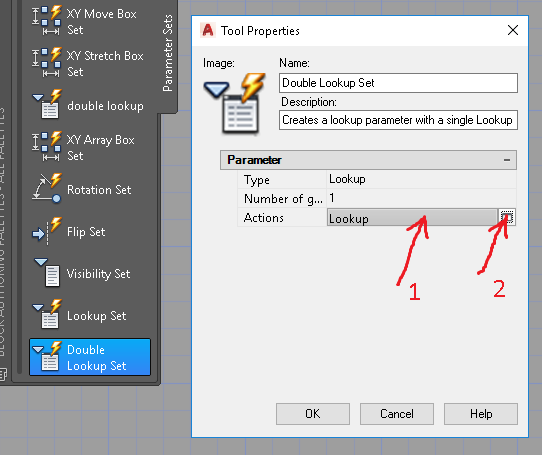

Click into the actions box to highlight it and you see a new icon appear on the right (2) click on this (lots of clicking here)

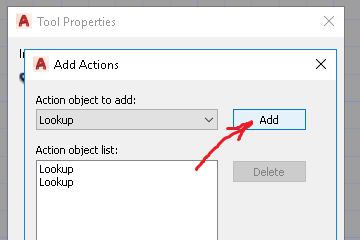

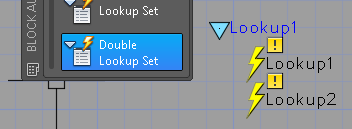

With some parameters you can select different ones in the “action object to add” drop down list but for lookups there is no choice available, so just click on the add button and another lookup will appear in the list, press ok twice to get out of the properties, and you should now have a working double lookup


Good luck and have fun you can do some fantastic things with this combination.

Share this post


Link to post
Share on other sites
RyanAtHC

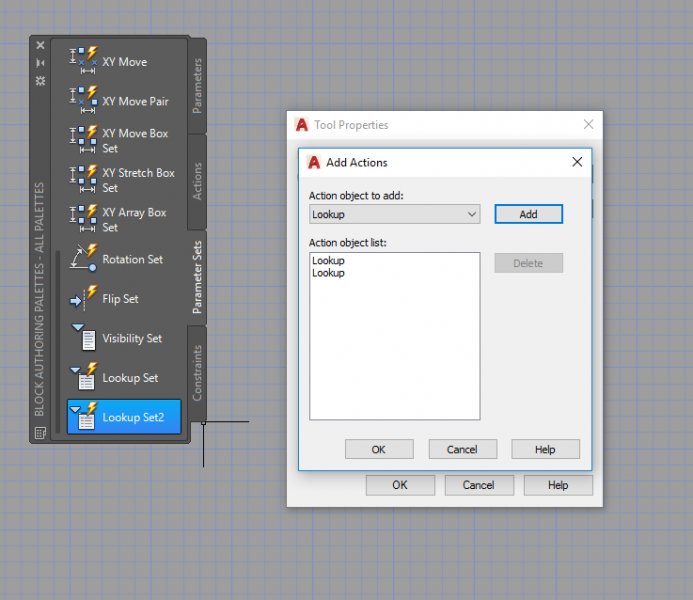

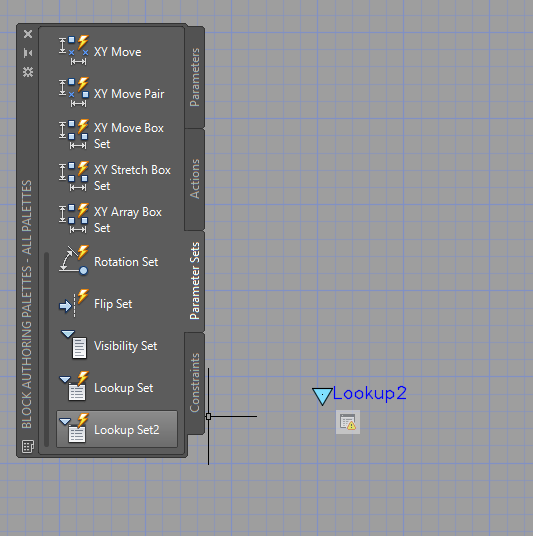

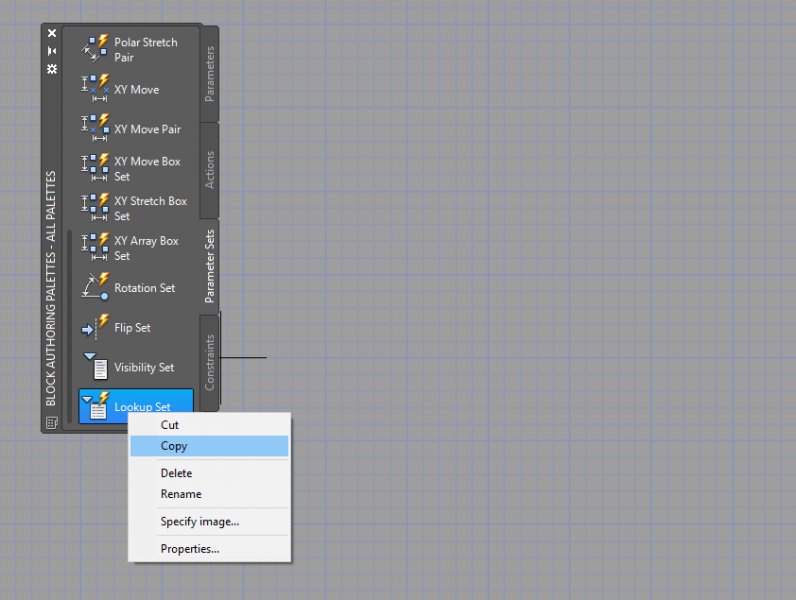

Those are the exact steps I followed in AutoCAD 2017. My result is a lookup1 with only one action. I'll attach my screenshots.

Share this post


Link to post
Share on other sites
steven-g

I just did this with 2017 LT no problems, just a thought check the variable bactionbarmode=0 otherwise you will get a different visual



Edit

You posted just before me yeah bactionbarmode is your problem

  • Like 1

Share this post


Link to post
Share on other sites
RyanAtHC

And it looks like you are using a different version of Acad than me. I am leaning more and more to an Acad 2017 issue.

Share this post


Link to post
Share on other sites
RyanAtHC

Ohhhhhh thanks so much!!!!

Share this post


Link to post
Share on other sites
RyanAtHC

It is always some system variable lol

Share this post


Link to post
Share on other sites
