Lots of similar drawings

[hydrographer]

Hi all,

I work for a small survey company that provides drawings mostly to engineers. Very repetitive, mostly profiles.



Whats the quickest way to fill 10-20 layouts with lots of profiles?



This is what i'm doing now but its slow work:

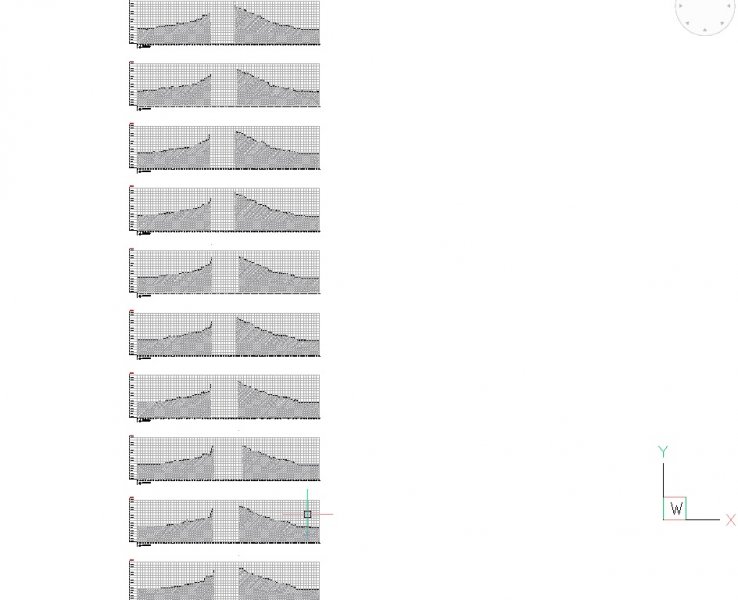

Arrange profiles in modelspace:

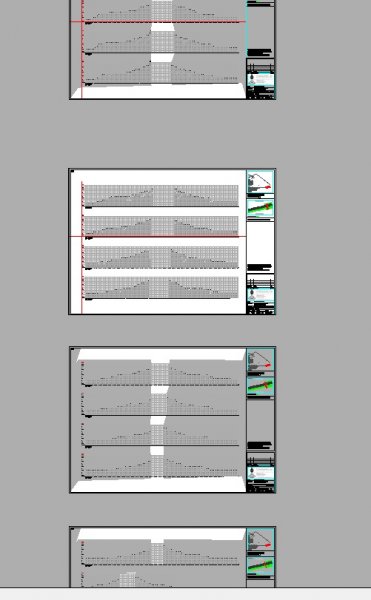

And then copy and paste a lot of chart layouts in paperspace, but tediously shift each viewport adjust keyplan and rename:









Maybe a Script could be implemented? ..not quite sure how to go about it

[maratovich]

Attach files example

Profile for insertion

and a final sample

This is to test possibility of

[Murph_map]

Quick way? Use Civil 3D it has these tools build in to it.

[BIGAL]

Like Murph_map Civil site design a 3rd party add on, multiple layouts is a std feature.



I agree with maratovich it could be automated particularly if profiles are same vertical spacing, pick top point, pick next profile so get spacing, enter hor scale, layouts appear.

[hydrographer]

Sorry for the late reply, i've been busy wasting my time on these profiles ...



I actually use Bricscad at the moment.. maybe I should trial Civil 3D,

so it will sequentially number multiple layouts and move the viewport by a specified amount?



maratovich, what should I attach?, my dwg? (profiles where generated using Geotools for Bricscad).

Before that my profiles were raw 3D polylines coming from CloudClompare!



Thanks a lot

[maratovich]

hydrographer

Yes, dwg

[hydrographer]

Here is a link



http://www45.zippyshare.com/v/8henMlVC/file.html



File was too big for cadtutor..

[hydrographer]

Cant seem to upload, file to big.. and my link to Zippyshare must have been 'moderated'

[hydrographer]

spoke too soon..

[BIGAL]

Look into Civil Site Design its available for Briscad and will not cost as much as CIV3D



www.civilsitedesign.com



I am pretty sure you can get a trial version.
