Hello guys,



I work for a society that makes voided slabs. Circles represent voids in the slab.

I was looking for a fast way to quote these circles.



Currently I have a lisp that convert poly-lines to quotes.



(defun quote_multiple ( / oldsnap oldlayer punto_ins_A punto_ins_B indice n_punti ent coordinate *error* ss sel)
(defun *error* ( msg )
       (princ (strcat "\nLa funzione è stata annullata"))
       (setvar 'osmode oldsnap)
       (_SetClayer oldlayer)
       (princ)
   )

   ;imposto variabili ambiente
;(setvar 'lunits 2)
 ;(setvar 'luprec 2)
 ;(setvar 'insunits 6)

 (setq oldlayer (getvar 'clayer))
 (_CreateLayer (dcl-Control-GetText Cobiax/Main/quota_layer) 5 "Continuous" -3 1)
 (_SetClayer (dcl-Control-GetText Cobiax/Main/quota_layer))
 (setq oldsnap (getvar 'osmode))
 (setvar 'osmode 0)

 (while (= 1 1)
 (setq indice 0)
 ;(_SetDimStyleCurrent "Centro Pil")
 (prompt "\nSeleziona una polilinea")

   (while (= nil (setq ss (ssget "_+.:E:S" '((0 . "LWPOLYLINE,POLYLINE")))))

 ;(setq ent (vlax-ename->vla-object (car (entsel))))
     )

   (setq ent (vlax-ename->vla-object (ssname ss 0)))

 (setq coordinate (vlax-safearray->list (vlax-variant-value (vlax-get-property ent 'Coordinates))))
 (vlax-invoke-method ent 'delete)
 (setq n_punti (/ (length coordinate) 2))

 (while (/= (1- indice) n_punti)

 (setq punto_ins_A (list (nth (* 2 indice) coordinate) (nth (+ (* 2 indice) 1) coordinate)))

   (IF (= (1+ indice) n_punti)

     (setq punto_ins_B (list (nth 0 coordinate) (nth 1 coordinate)))
     (setq punto_ins_B (list (nth (* 2 (1+ indice)) coordinate) (nth (+ (* 2 (1+ indice)) 1) coordinate)))

     )

 (command "_.DIMLINEAR" punto_ins_A punto_ins_B punto_ins_A)
   ;(command "_DIMALIGNED" punto_ins_A punto_ins_B punto_ins_A)
 (setq indice (1+ indice))
 )
   )
;;;  (_SetClayer oldlayer)
;;;  (setvar 'osmode oldsnap)
 )

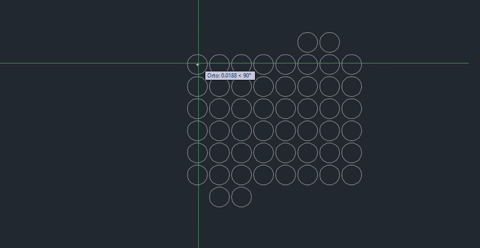

and this is his behavior:



attachment.php?attachmentid=61029&cid=1&stc=1



As you can see I'm interested only about the boundary quotes.



Any idea about how to perform that task without the the polyline? Maybe by selecting all the circles the lisp is able to understand if it's internal or at boundary.



This is an example: Test.dwg



Thanks for the help,



Dennis


Share this post


Link to post
Share on other sites
marko_ribar

On your posted DWG - test, this will work on simple case like in your gif, but on your bigger example in DWG it won't... So, better something than nothing, maybe it'll work on some other simple examples similar to animated gif...



(defun c:dimouterboundcircles ( / unique adoc dim spc s i ci p pl d plbound plboundd plround plr a plroundd pp aa plroundorth plroundorthrem )

 (vl-load-com)

 (defun unique ( l )
   (if l (cons (car l) (unique (vl-remove-if (function (lambda ( x ) (equal x (car l) 2.5e-2))) l))))
 )

 (setq adoc (vla-get-activedocument (vlax-get-acad-object)))
 (if (= 8 (logand 8 (getvar 'undoctl)))
   (vla-endundomark adoc)
 )
 (vla-startundomark adoc)
 (setq dim (vla-get-activedimstyle adoc))
 (vla-copyfrom dim adoc)
 (setq spc (vla-get-block (vla-get-activelayout adoc)))
 (prompt "\nSelect CIRCLES...")
 (setq s (ssget '((0 . "CIRCLE"))))
 (if s
   (progn
     (repeat (setq i (sslength s))
       (setq ci (ssname s (setq i (1- i))))
       (setq p (cdr (assoc 10 (entget ci))))
       (setq pl (cons p pl))
     )
     (setq pl (mapcar (function (lambda ( p ) (trans p 0 1))) pl))
     (setq pl (vl-sort pl (function (lambda ( a b ) (if (equal (car a) (car b) 2.5e-2) (< (cadr a) (cadr b)) (< (car a) (car b)))))))
     (setq p (car pl))
     (setq d (distance p (cadr (vl-sort pl (function (lambda ( a b ) (< (distance a p) (distance b p))))))))
     (foreach p pl
       (if
         (not
           (and
             (vl-some (function (lambda ( x ) (equal x (mapcar '+ p (list d 0 0)) 2.5e-2))) pl)
             (vl-some (function (lambda ( x ) (equal x (mapcar '+ p (list (- d) 0 0)) 2.5e-2))) pl)
             (vl-some (function (lambda ( x ) (equal x (mapcar '+ p (list 0 d 0)) 2.5e-2))) pl)
             (vl-some (function (lambda ( x ) (equal x (mapcar '+ p (list 0 (- d) 0)) 2.5e-2))) pl)
           )
         )
         (setq plbound (cons p plbound))
       )
     )
     (while plbound
       (setq plbound (vl-sort plbound (function (lambda ( a b ) (if (equal (car a) (car b) 2.5e-2) (< (cadr a) (cadr b)) (< (car a) (car b)))))))
       (setq plbound (reverse (cons (car plbound) (reverse plbound))))
       (while (and (setq p (car plbound)) (not (equal p (last plround) 2.5e-2)))
         (if plround
           (setq aa (angle (car plround) p))
         )
         (if (and aa (equal aa (* 2 pi) 2.5e-2))
           (setq aa 0.0)
         )
         (setq plbound (cdr plbound))
         (setq plbound (vl-sort plbound (function (lambda ( a b ) (< (distance a p) (distance b p))))))
         (if (or (equal p (car plbound) 2.5e-2) (equal (car plbound) (car plround) 2.5e-2))
           (setq plbound (cdr (reverse (cons (car plbound) (reverse plbound)))))
         )
         (setq plboundd (vl-remove-if-not (function (lambda ( x ) (equal (distance p x) d 2.5e-2))) (vl-remove-if (function (lambda ( x ) (vl-some (function (lambda ( y ) (equal x y 2.5e-2))) plround))) plbound)))
         (setq plboundd (vl-sort plboundd (function (lambda ( a b ) (if (or (equal (angle p a) aa 2.5e-2) (and (equal (angle p a) (* 2 pi) 2.5e-2) (= aa 0.0))) t nil)))))
         (if plboundd
           (progn
             (setq plbound (vl-remove (car plboundd) plbound))
             (setq plbound (cons (car plboundd) plbound))
           )
         )
         (setq plround (cons p plround))
       )
       (setq plround (cons (car plbound) plround))
       (setq plbound (cdr plbound))
       (setq plround (reverse plround))
       (setq plr pl)
       (foreach p plround
         (setq plr (vl-remove p plr))
       )
       (while (setq p (car plround))
         (setq a (if (cadr plround) (angle p (cadr plround))))
         (if
           (not
             (or
               (equal a 0.0 2.5e-2)
               (equal a (* 0.5 pi) 2.5e-2)
               (equal a pi 2.5e-2)
               (equal a (* 1.5 pi) 2.5e-2)
               (equal a (* 2 pi) 2.5e-2)
             )
           )
           (progn
             (setq plroundorth (cons p plroundorth))
             (setq plround (cdr plround))
             (if plround
               (progn
                 (setq plroundd (vl-sort plr (function (lambda ( a b ) (< (distance a (car plround)) (distance b (car plround)))))))
                 (setq plroundd (vl-remove-if-not (function (lambda ( x ) (equal (distance x (car plround)) d 2.5e-2))) plroundd))
                 (foreach pp plroundd
                   (setq a (angle p pp))
                   (if
                     (or
                       (equal a 0.0 2.5e-2)
                       (equal a (* 0.5 pi) 2.5e-2)
                       (equal a pi 2.5e-2)
                       (equal a (* 1.5 pi) 2.5e-2)
                       (equal a (* 2 pi) 2.5e-2)
                     )
                     (setq plround (cons pp plround))
                   )
                 )
               )
             )
             (cond
               ( (and (null a) plround)
                 (setq plroundorth (cons (car plround) plroundorth))
                 (setq plround nil)
               )
               ( (and (null a) (null plround))
                 (if (not (equal (distance (car plroundorth) (last plroundorth)) d 2.5e-2))
                   (progn
                     (setq plroundd (vl-sort plr (function (lambda ( a b ) (< (distance a (car plroundorth)) (distance b (car plroundorth)))))))
                     (setq plroundd (vl-remove-if-not (function (lambda ( x ) (equal (distance x (car plroundorth)) d 2.5e-2))) plroundd))
                     (foreach pp plroundd
                       (setq a (angle p pp))
                       (if
                         (or
                           (equal a 0.0 2.5e-2)
                           (equal a (* 0.5 pi) 2.5e-2)
                           (equal a pi 2.5e-2)
                           (equal a (* 1.5 pi) 2.5e-2)
                           (equal a (* 2 pi) 2.5e-2)
                         )
                         (setq plroundorth (cons pp plroundorth))
                       )
                     )
                   )
                 )
               )
             )
           )
           (progn
             (setq plround (cdr plround))
             (while (and plround (if (or (equal a 0.0 2.5e-2) (equal a (* 2 pi) 2.5e-2)) (or (equal 0.0 (angle p (car plround)) 2.5e-2) (equal (* 2 pi) (angle p (car plround)) 2.5e-2)) (equal a (angle p (car plround)) 2.5e-2)))
               (setq pp (car plround))
               (setq plround (cdr plround))
             )
             (if (or (equal a (angle p pp) 2.5e-2) (and (equal a 0.0 2.5e-2) (equal (angle p pp) (* 2 pi) 2.5e-2)) (and (equal a (* 2 pi) 2.5e-2) (equal (angle p pp) 0.0 2.5e-2)))
               (progn
                 (if (not (vl-position p plroundorth))
                   (setq plroundorth (cons p plroundorth))
                 )
                 (setq plroundd (vl-sort plr (function (lambda ( a b ) (< (distance a pp) (distance b pp))))))
                 (setq plroundd (vl-remove-if-not (function (lambda ( x ) (equal (distance x pp) d 2.5e-2))) plroundd))
                 (foreach ppp plroundd
                   (setq aa (angle p ppp))
                   (if (and (not (equal p ppp 2.5e-2)) (not (equal pp ppp 2.5e-2)) (or (equal a aa 2.5e-2) (and (equal aa 0.0 2.5e-2) (equal a (* 2 pi) 2.5e-2)) (and (equal aa (* 2 pi) 2.5e-2) (equal a 0.0 2.5e-2))))
                     (setq plround (cons ppp plround) tst t)
                   )
                 )
                 (if (and plround (null tst))
                   (setq plround (cons pp plround))
                 )
                 (if (null plround)
                   (if (and (not (equal (angle (car plroundorth) pp) (angle (car plroundorth) (last plroundorth)) 2.5e-2)) (not (or (and (equal (angle (car plroundorth) pp) 0.0 2.5e-2) (equal (angle (car plroundorth) (last plroundorth)) (* 2 pi) 2.5e-2)) (and (equal (angle (car plroundorth) pp) (* 2 pi) 2.5e-2) (equal (angle (car plroundorth) (last plroundorth)) 0.0 2.5e-2)))) (not (vl-position pp plroundorth)))
                     (setq plround (cons pp plround))
                   )
                 )
                 (setq tst nil)
               )
               (progn
                 (setq plroundd (vl-sort plr (function (lambda ( a b ) (< (distance a pp) (distance b pp))))))
                 (setq plroundd (vl-remove-if-not (function (lambda ( x ) (equal (distance x pp) d 2.5e-2))) plroundd))
                 (foreach ppp plroundd
                   (setq aa (angle p ppp))
                   (if
                     (or
                       (equal aa 0.0 2.5e-2)
                       (equal aa (* 0.5 pi) 2.5e-2)
                       (equal aa pi 2.5e-2)
                       (equal aa (* 1.5 pi) 2.5e-2)
                       (equal aa (* 2 pi) 2.5e-2)
                     )
                     (setq plround (cons ppp plround))
                   )
                 )
               )
             )
           )
         )
       )
       (setq plroundorth (reverse plroundorth))
       (setq plroundorth (mapcar (function (lambda ( p ) (trans p 1 0))) plroundorth))
       (setq plroundorth (unique plroundorth))
       (setq plroundorthrem (vl-remove nil (mapcar (function (lambda ( a b c ) (if (equal (distance a c) (+ (distance a b) (distance b c)) 2.5e-2) b))) plroundorth (cdr (reverse (cons (car plroundorth) (reverse plroundorth)))) (cddr (reverse (cons (cadr plroundorth) (cons (car plroundorth) (reverse plroundorth))))))))
       (foreach p plroundorthrem
         (setq plroundorth (vl-remove p plroundorth))
       )
       (mapcar (function (lambda ( a b ) (vla-adddimaligned spc (vlax-3d-point a) (vlax-3d-point b) (vlax-3d-point (mapcar '/ (mapcar '+ a b) (list 2.0 2.0 2.0)))))) plroundorth (cdr (reverse (cons (car plroundorth) (reverse plroundorth)))))
       (setq plround nil plroundorth nil)
     )
   )
 )
 (vla-endundomark adoc)
 (princ)
)

HTH., M.R.

Edited by marko_ribar
code finally changed...

Share this post


Link to post
Share on other sites
BIGAL

Just pondering an alternative method, select all circles, then do a ssget cp that is 2xRad of each circle, if the selection set is less than 8 then its an outside circle. Should work on test dwg as it has single row circles which stick out as well as connected together more grid like.



Code removed as not quite what was required.

Edited by BIGAL

Share this post


Link to post
Share on other sites
MastroLube

Hello guys! Thank for your help, there is a lot to learn from your code!



I've tested both of them in another DWG (later I'll try to understand each line of the code).



test.dwg



Code from Marko:



works with a little strange error in the left corner.. If you select too much objects (118 in my case) autocad enters in a loop :cry:






Code from Bigal has a strange behaviour..



(setq ss (ssget (list (cons 0 "Circle"))))
(setvar "osmode" 0)
(setq tot 0)
(repeat (setq x (sslength ss))
(setq obj (vlax-ename->vla-object (ssname SS (setq x (- x 1)))))
(setq cenpt (vlax-safearray->list (vlax-variant-value (vla-get-center obj))))
(setq rad (* 3.2 (vla-get-radius obj)))
(setq pt1 (polar cenpt (/ pi 4.0) rad))
(setq pt2 (polar cenpt (* pi 1.5) rad))
(command "_.line" pt1 pt2 "") ; for testing
(setq ss2 (ssget "_w" pt1 pt2))
(if (and (/= ss2 nil)(< (sslength ss2) )
(setq tot (+ Tot 1)) ; this is external circles
)
(princ (strcat "\n" (rtos tot 2 0)))
(setq ss2 nil)
)


Share this post


Link to post
Share on other sites
MastroLube
My posted code should now work with this attached DWG...



Hello Marko! Nice to see you again :)



yup the code as improved, has the little problem of the last point as in the gif I've posted (but only one error and not 2).. Try it on my last dwg... thanks for your help!



EDIT: look at his behavior.. (I've deleted a lot of frames because it takes too long)




Share this post


Link to post
Share on other sites
marko_ribar

Posted code finally updated... You can't select multiple groups of circles, just single group by group...



Regards, M.R.

Share this post


Link to post
Share on other sites
MastroLube
Posted code finally updated... You can't select multiple groups of circles, just single group by group...



Regards, M.R.



Thanks Marko, very cool code! I'll start to study it right now!



A little question.. do you think it's impossible to consider even the holes in the middle? (or ignore so I add them as in the gif)




Share this post


Link to post
Share on other sites
marko_ribar

One selection by one... For now avoid it or do it like in your gif... You can select entire group with inner islands...





[EDIT : Now added code for different grid dx and dy... I converted DWG with circles to block, changed Y scale factor and exploded block; result was ellipses instead of circles... Then I tested the code I'll post here...]





(defun c:dimouterboundellipses ( / unique adoc dim spc s i el p pp pl dx dy plbound plboundd plbounddd plround plr a plroundd aa plroundorth plroundorthrem )

 (vl-load-com)

 (defun unique ( l )
   (if l (cons (car l) (unique (vl-remove-if (function (lambda ( x ) (equal x (car l) 2.5e-2))) l))))
 )

 (setq adoc (vla-get-activedocument (vlax-get-acad-object)))
 (if (= 8 (logand 8 (getvar 'undoctl)))
   (vla-endundomark adoc)
 )
 (vla-startundomark adoc)
 (setq dim (vla-get-activedimstyle adoc))
 (vla-copyfrom dim adoc)
 (setq spc (vla-get-block (vla-get-activelayout adoc)))
 (prompt "\nSelect ELLIPSES...")
 (setq s (ssget '((0 . "ELLIPSE"))))
 (if s
   (progn
     (repeat (setq i (sslength s))
       (setq el (ssname s (setq i (1- i))))
       (setq p (cdr (assoc 10 (entget el))))
       (setq pl (cons p pl))
     )
     (setq pl (mapcar (function (lambda ( p ) (trans p 0 1))) pl))
     (setq pl (vl-sort pl (function (lambda ( a b ) (if (equal (car a) (car b) 2.5e-2) (< (cadr a) (cadr b)) (< (car a) (car b)))))))
     (setq p (car pl))
     (setq dx (distance p (list (car (car (vl-sort (vl-remove-if (function (lambda ( x ) (equal (car x) (car p) 2.5e-2))) pl) (function (lambda ( a b ) (< (car a) (car b))))))) (cadr p) (caddr p))))
     (setq dy (distance (setq pp (car (vl-sort pl (function (lambda ( a b ) (< (cadr a) (cadr b))))))) (list (car pp) (cadr (car (vl-sort (vl-remove-if (function (lambda ( x ) (equal (cadr x) (cadr pp) 2.5e-2))) pl) (function (lambda ( a b ) (< (cadr a) (cadr b))))))) (caddr pp))))
     (foreach p pl
       (if
         (not
           (and
             (vl-some (function (lambda ( x ) (equal x (mapcar '+ p (list dx 0 0)) 2.5e-2))) pl)
             (vl-some (function (lambda ( x ) (equal x (mapcar '+ p (list (- dx) 0 0)) 2.5e-2))) pl)
             (vl-some (function (lambda ( x ) (equal x (mapcar '+ p (list 0 dy 0)) 2.5e-2))) pl)
             (vl-some (function (lambda ( x ) (equal x (mapcar '+ p (list 0 (- dy) 0)) 2.5e-2))) pl)
           )
         )
         (setq plbound (cons p plbound))
       )
     )
     (while plbound
       (setq plbound (vl-sort plbound (function (lambda ( a b ) (if (equal (car a) (car b) 2.5e-2) (< (cadr a) (cadr b)) (< (car a) (car b)))))))
       (setq plbound (reverse (cons (car plbound) (reverse plbound))))
       (while (and (setq p (car plbound)) (not (equal p (last plround) 2.5e-2)))
         (if plround
           (setq aa (angle (car plround) p))
         )
         (if (and aa (equal aa (* 2 pi) 2.5e-2))
           (setq aa 0.0)
         )
         (setq plbound (cdr plbound))
         (setq plbound (vl-sort plbound (function (lambda ( a b ) (< (distance a p) (distance b p))))))
         (if (or (equal p (car plbound) 2.5e-2) (equal (car plbound) (car plround) 2.5e-2))
           (setq plbound (cdr (reverse (cons (car plbound) (reverse plbound)))))
         )
         (setq plboundd (vl-remove-if-not (function (lambda ( x ) (or (equal (polar p 0.0 dx) x 2.5e-2) (equal (polar p pi dx) x 2.5e-2) (equal (polar p (* 0.5 pi) dy) x 2.5e-2) (equal (polar p (* 1.5 pi) dy) x 2.5e-2)))) (vl-remove-if (function (lambda ( x ) (vl-some (function (lambda ( y ) (equal x y 2.5e-2))) plround))) plbound)))
         (setq plboundd (vl-sort plboundd (function (lambda ( a b ) (if (or (equal (angle p a) aa 2.5e-2) (and (equal (angle p a) (* 2 pi) 2.5e-2) (= aa 0.0))) t nil)))))
         (setq plbounddd (vl-remove-if-not (function (lambda ( x ) (or (equal (polar (polar p 0.0 dx) (* 0.5 pi) dy) x 2.5e-2) (equal (polar (polar p 0.0 dx) (* 1.5 pi) dy) x 2.5e-2) (equal (polar (polar p pi dx) (* 0.5 pi) dy) x 2.5e-2) (equal (polar (polar p pi dx) (* 1.5 pi) dy) x 2.5e-2)))) (vl-remove-if (function (lambda ( x ) (vl-some (function (lambda ( y ) (equal x y 2.5e-2))) plround))) plbound)))
         (setq plbounddd (vl-sort plbounddd (function (lambda ( a b ) (if (not (equal (angle p a) aa 2.5e-2)) t nil)))))
         (if plboundd
           (progn
             (setq plbound (vl-remove (car plboundd) plbound))
             (setq plbound (cons (car plboundd) plbound))
           )
           (if plbounddd
             (progn
               (setq plbound (vl-remove (car plbounddd) plbound))
               (setq plbound (cons (car plbounddd) plbound))
             )
           )
         )
         (setq plbounddd nil)
         (setq plround (cons p plround))
       )
       (setq plround (cons (car plbound) plround))
       (setq plbound (cdr plbound))
       (setq plround (reverse plround))
       (setq plr pl)
       (foreach p plround
         (setq plr (vl-remove p plr))
       )
       (while (setq p (car plround))
         (setq a (if (cadr plround) (angle p (cadr plround))))
         (if
           (not
             (or
               (equal a 0.0 2.5e-2)
               (equal a (* 0.5 pi) 2.5e-2)
               (equal a pi 2.5e-2)
               (equal a (* 1.5 pi) 2.5e-2)
               (equal a (* 2 pi) 2.5e-2)
             )
           )
           (progn
             (setq plroundorth (cons p plroundorth))
             (setq plround (cdr plround))
             (if plround
               (progn
                 (setq plroundd (vl-sort plr (function (lambda ( a b ) (< (distance a (car plround)) (distance b (car plround)))))))
                 (setq plroundd (vl-remove-if-not (function (lambda ( x ) (or (equal (polar (car plround) 0.0 dx) x 2.5e-2) (equal (polar (car plround) pi dx) x 2.5e-2) (equal (polar (car plround) (* 0.5 pi) dy) x 2.5e-2) (equal (polar (car plround) (* 1.5 pi) dy) x 2.5e-2)))) plroundd))
                 (foreach pp plroundd
                   (setq a (angle p pp))
                   (if
                     (or
                       (equal a 0.0 2.5e-2)
                       (equal a (* 0.5 pi) 2.5e-2)
                       (equal a pi 2.5e-2)
                       (equal a (* 1.5 pi) 2.5e-2)
                       (equal a (* 2 pi) 2.5e-2)
                     )
                     (setq plround (cons pp plround))
                   )
                 )
               )
             )
             (cond
               ( (and (null a) plround)
                 (setq plroundorth (cons (car plround) plroundorth))
                 (setq plround nil)
               )
               ( (and (null a) (null plround))
                 (if (not (equal (distance (car plroundorth) (last plroundorth)) d 2.5e-2))
                   (progn
                     (setq plroundd (vl-sort plr (function (lambda ( a b ) (< (distance a (car plroundorth)) (distance b (car plroundorth)))))))
                     (setq plroundd (vl-remove-if-not (function (lambda ( x ) (or (equal (polar (car plroundorth) 0.0 dx) x 2.5e-2) (equal (polar (car plroundorth) pi dx) x 2.5e-2) (equal (polar (car plroundorth) (* 0.5 pi) dy) x 2.5e-2) (equal (polar (car plroundorth) (* 1.5 pi) dy) x 2.5e-2)))) plroundd))
                     (foreach pp plroundd
                       (setq a (angle p pp))
                       (if
                         (or
                           (equal a 0.0 2.5e-2)
                           (equal a (* 0.5 pi) 2.5e-2)
                           (equal a pi 2.5e-2)
                           (equal a (* 1.5 pi) 2.5e-2)
                           (equal a (* 2 pi) 2.5e-2)
                         )
                         (setq plroundorth (cons pp plroundorth))
                       )
                     )
                   )
                 )
               )
             )
           )
           (progn
             (setq plround (cdr plround))
             (while (and plround (if (or (equal a 0.0 2.5e-2) (equal a (* 2 pi) 2.5e-2)) (or (equal 0.0 (angle p (car plround)) 2.5e-2) (equal (* 2 pi) (angle p (car plround)) 2.5e-2)) (equal a (angle p (car plround)) 2.5e-2)))
               (setq pp (car plround))
               (setq plround (cdr plround))
             )
             (if (or (equal a (angle p pp) 2.5e-2) (and (equal a 0.0 2.5e-2) (equal (angle p pp) (* 2 pi) 2.5e-2)) (and (equal a (* 2 pi) 2.5e-2) (equal (angle p pp) 0.0 2.5e-2)))
               (progn
                 (if (not (vl-position p plroundorth))
                   (setq plroundorth (cons p plroundorth))
                 )
                 (setq plroundd (vl-sort plr (function (lambda ( a b ) (< (distance a pp) (distance b pp))))))
                 (setq plroundd (vl-remove-if-not (function (lambda ( x ) (or (equal (polar pp 0.0 dx) x 2.5e-2) (equal (polar pp pi dx) x 2.5e-2) (equal (polar pp (* 0.5 pi) dy) x 2.5e-2) (equal (polar pp (* 1.5 pi) dy) x 2.5e-2)))) plroundd))
                 (foreach ppp plroundd
                   (setq aa (angle p ppp))
                   (if (and (not (equal p ppp 2.5e-2)) (not (equal pp ppp 2.5e-2)) (or (equal a aa 2.5e-2) (and (equal aa 0.0 2.5e-2) (equal a (* 2 pi) 2.5e-2)) (and (equal aa (* 2 pi) 2.5e-2) (equal a 0.0 2.5e-2))))
                     (setq plround (cons ppp plround) tst t)
                   )
                 )
                 (if (and plround (null tst))
                   (setq plround (cons pp plround))
                 )
                 (if (null plround)
                   (if (and (not (equal (angle (car plroundorth) pp) (angle (car plroundorth) (last plroundorth)) 2.5e-2)) (not (or (and (equal (angle (car plroundorth) pp) 0.0 2.5e-2) (equal (angle (car plroundorth) (last plroundorth)) (* 2 pi) 2.5e-2)) (and (equal (angle (car plroundorth) pp) (* 2 pi) 2.5e-2) (equal (angle (car plroundorth) (last plroundorth)) 0.0 2.5e-2)))) (not (vl-position pp plroundorth)))
                     (setq plround (cons pp plround))
                   )
                 )
                 (setq tst nil)
               )
               (progn
                 (setq plroundd (vl-sort plr (function (lambda ( a b ) (< (distance a pp) (distance b pp))))))
                 (setq plroundd (vl-remove-if-not (function (lambda ( x ) (or (equal (polar pp 0.0 dx) x 2.5e-2) (equal (polar pp pi dx) x 2.5e-2) (equal (polar pp (* 0.5 pi) dy) x 2.5e-2) (equal (polar pp (* 1.5 pi) dy) x 2.5e-2)))) plroundd))
                 (foreach ppp plroundd
                   (setq aa (angle p ppp))
                   (if
                     (or
                       (equal aa 0.0 2.5e-2)
                       (equal aa (* 0.5 pi) 2.5e-2)
                       (equal aa pi 2.5e-2)
                       (equal aa (* 1.5 pi) 2.5e-2)
                       (equal aa (* 2 pi) 2.5e-2)
                     )
                     (setq plround (cons ppp plround))
                   )
                 )
               )
             )
           )
         )
       )
       (setq plroundorth (reverse plroundorth))
       (setq plroundorth (mapcar (function (lambda ( p ) (trans p 1 0))) plroundorth))
       (setq plroundorth (unique plroundorth))
       (setq plroundorthrem (vl-remove nil (mapcar (function (lambda ( a b c ) (if (equal (distance a c) (+ (distance a b) (distance b c)) 2.5e-2) b))) plroundorth (cdr (reverse (cons (car plroundorth) (reverse plroundorth)))) (cddr (reverse (cons (cadr plroundorth) (cons (car plroundorth) (reverse plroundorth))))))))
       (foreach p plroundorthrem
         (setq plroundorth (vl-remove p plroundorth))
       )
       (mapcar (function (lambda ( a b ) (vla-adddimaligned spc (vlax-3d-point a) (vlax-3d-point b) (vlax-3d-point (mapcar '/ (mapcar '+ a b) (list 2.0 2.0 2.0)))))) plroundorth (cdr (reverse (cons (car plroundorth) (reverse plroundorth)))))
       (setq plround nil plroundorth nil)
     )
   )
 )
 (vla-endundomark adoc)
 (princ)
)

M.R.

P.S. Now you should be able to select group with empty spaces and in most cases it should dimension both outer boundary and inner boundaries fine if inner spaces aren't to close to outer boundary...

Edited by marko_ribar
added additional code for grid points with different dx and dy...

Share this post


Link to post
Share on other sites
MastroLube

Thanks Marko, that helps me very much! :notworthy:

Edited by MastroLube

Share this post


Link to post
Share on other sites
BIGAL

Mastrolube I misinterpreted your request as just wanting to know how many holes. So I have removed the code.

Edited by BIGAL

Share this post


Link to post
Share on other sites
MastroLube

Sorry Bigal, I didn't get the notification about your reply.. I'm looking for a fix that consider the holes but it's very hard (at least for me). :(

Share this post


Link to post
Share on other sites
marko_ribar

I've updated both my codes from this thread...





Regards, M.R.

Share this post


Link to post
Share on other sites
MastroLube
Posted (edited)

Wow thanks marko!! I'll test them right now :)



Thank you very very much





Edit:










Yay! It works :)





Maybe my computer is a little bit old because I've tried to quote the right corner of this 2000 m^2 slab with 10221 circles and after few minutes had to stop the code :(





What's the limit in your opinion?







Thanks again!

Edited by MastroLube

Share this post


Link to post
Share on other sites
marko_ribar

Look I've changed codes once again...

Don't know for limits, but it is slow if you have many circles... That's simply unavoidable...





P.S. Looking at your picture, you have in some portions of inner holes one row or column of circles - that is not desirable - you have to have at least 2 rows or columns between holes - outer boundary...

Share this post


Link to post
Share on other sites
MastroLube
Look I've changed codes once again...

Don't know for limits, but it is slow if you have many circles... That's simply unavoidable...





P.S. Looking at your picture, you have in some portions of inner holes one row or column of circles - that is not desirable - you have to have at least 2 rows or columns between holes - outer boundary...





Thanks you Marko! I'll test it tomorrow!





Thanks and good evening :)

Share this post


Link to post
Share on other sites
marko_ribar

I've updated codes once again in order to speed things up...

My previous comments stands unchanged... (2 row or 2 columns minimum between)

Share this post


Link to post
Share on other sites
MastroLube
I've updated codes once again in order to speed things up...

My previous comments stands unchanged... (2 row or 2 columns minimum between)





Hello Marko!







I admire you so much!! :)





I've tried your code with my huge slab and after 1 hour I've pressed cancel for mistake :(





Anyway I found a good use of it even for big slabs! If i select only external circles it works very well and haven't to wait ages.





For small slabs it's perfect!



I've created a tool in these years and we give it for free in our site.







If you agree I could add your code inside it and add credits to you :)





Your code is the cherry on top. :notworthy:

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

×
