lilrose Posted January 13, 2009 Posted January 13, 2009 How do u make the wrinkles as in blankets or cutains from autocad 2007. Ive tried lofting which produces a solid bt i want a surface. Can i use sweep command? Quote
fuccaro Posted January 13, 2009 Posted January 13, 2009 Y see you work in AutoCAD 2007 -but you still have the old tools for surfaces. I will try with EDGESURF first and my next try would be the 3DMESH command. See the help file for these commands. As an alternative: booth the curtain and the blanket can be modeled in something like 3D Studio and imported in AutoCAD. An other way: a lisp routine could generate the surface letting some random numbers to affect the positions of the vertexes. These advices are for people using AutoCAD up to 2006 -this is what I use. In the newer versions there are other ways I am not familiar with. Quote
rgarjr Posted January 13, 2009 Posted January 13, 2009 I believe Loft and Edgesurf are your arsenal for making these types of things. Quote
lilrose Posted January 13, 2009 Author Posted January 13, 2009 Where can i get help files for those commands? Quote
JD Mather Posted January 13, 2009 Posted January 13, 2009 Where can i get help files for those commands? I would not use edgesurf, rulesurf and the like -there are more powerful surfacing commands in r2007 and later. Ive tried lofting which produces a solid bt i want a surface. If you Loft open profiles you will get surfaces rather than solids. You might want to go through the tutorials in my signature. Quote
arjun_samar Posted January 13, 2009 Posted January 13, 2009 How do u make the wrinkles as in blankets or cutains from autocad 2007. Ive tried lofting which produces a solid bt i want a surface. Can i use sweep command? sir, welcome to the forum, hope this may help.... just click this... see the page 1 to 2 http://www.cadtutor.net/forum/showthread.php?t=30563 Quote
lilrose Posted January 14, 2009 Author Posted January 14, 2009 Thank u all for the help:) n btw arjun_samar u rather call me madam...im a gal, not a boy;) Quote
arjun_samar Posted January 14, 2009 Posted January 14, 2009 oppsss... sorry.... if happen to create another 3d with cloth like effect can you post it? thanks.... it would be really nice to see it.... Quote

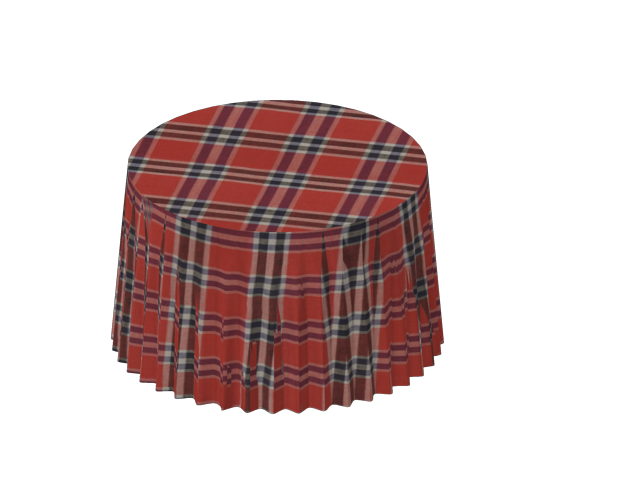

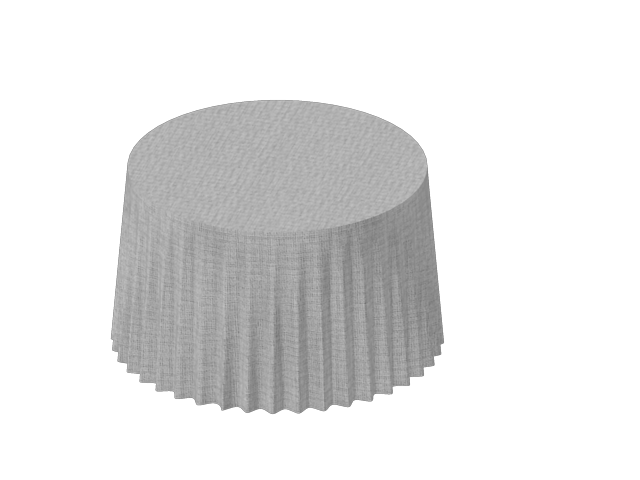

lilrose Posted January 15, 2009 Author Posted January 15, 2009 Here it is..not so smooth though:huh: . I made it using the LOFT command. Quote
lilrose Posted January 15, 2009 Author Posted January 15, 2009 Btw i dont know how to get much fabric like materials..Where do u get em? Quote
arjun_samar Posted January 15, 2009 Posted January 15, 2009 Btw i dont know how to get much fabric like materials..Where do u get em? nice..... nice table....... here is some of my fabric materials.... hope you like it.... some of them are from the net... here is a thread for free sites for materials..... http://www.cadtutor.net/forum/showthread.php?t=25546 set A.zip set B.zip set C.zip set D.zip set E.zip set F.zip set G.zip Quote
