Hi,



I need to add a lot of spot height in a road pavement an I would like to use a lisp.



In need to add 2 spot value under the kerb line.



The first one (11.11 ex.) in under the kerb the second one (22.22 ex.) is below the kerb.



I built a block with 2 prompt values:



STREET.dwg



Height_1=11.11

Height_2: 22.22



This lisp should work:



1: PICK THE INSERTION POINT.

2: PICK THE FIST VALUE (Height_1)

3: PICK THE SECOND VALUE (Height_2)



Usually i used the follow lisp but it is able to add just one value at time.



(defun c:CRC (/ sp p)
 ;; Tharwat 15.Feb.2016 ;;
 (setq sp
        (vlax-get (vla-get-activelayout
                    (vla-get-ActiveDocument (vlax-get-acad-object)))
                  'Block)
       )
 (if (tblsearch "BLOCK" "STREET" )
   (while (setq p (getpoint "\nSpecify point :"))
     (vla-put-textstring
       (car (vlax-invoke
              (vla-insertblock
                sp
                (vlax-3d-point p)
                "STREET"
                1.0
                1.0
                1.0
                0.0)
              'getattributes))

(rtos (/ (caddr p) 1000.) 2 2)
       )

     )
   )
 (princ)
 )(vl-load-com)










Thanks in advance

Posted

I would use:



(setvar "ATTDIA" 0 )
(setvar "ATTREQ" 1 )
(command "-insert" "STREET" p "1" "1" "0")



Because of the ATTREQ variable when inserting the block itll ask for the attributes.

Posted

Thanks, unfortunately I don't know the Lisp code. Can you suggest me how I need to modify the lisp?



Thanks

Posted

Hi,



Are you after picking two points then write them into the Attributed block 'STREET' in order ?

Posted
(defun c:CRC (/ sp p)
(if (tblsearch "BLOCK" "STREET" )
	(progn
		(setq p (getpoint "\nSpecify point :"))
		(setvar "ATTDIA" 0 )
		(setvar "ATTREQ" 1 )
		(command "-insert" "STREET" p "1" "1" "0")
	)
)
(princ)
)
(vl-load-com)

Posted

Hi @Aftertouch,



this work well but i need to add the value manually. I would like to pick 2 point, get the z value, and use it to fill the attribute values



Thanks

Posted
yes, i would like to do this.



(defun c:crc (/ sp p p1 p2 ats)
 ;; Tharwat 10.Mar.2017 ;;
 (setq sp
        (vlax-get (vla-get-activelayout
                    (vla-get-activedocument (vlax-get-acad-object))
                  )
                  'block
        )
 )
 (if (tblsearch "BLOCK" "STREET")
   (while (and (setq p (getpoint "\nSpecify insertion point :"))
               (setq p1 (getpoint "\nSpecify 1st point :"))
               (setq p2 (getpoint "\nSpecify 2nd point :"))
          )
     (setq ats (vlax-invoke
                 (vla-insertblock
                   sp
                   (vlax-3d-point p)
                   "STREET"
                   1.0
                   1.0
                   1.0
                   0.0
                 )
                 'getattributes
               )
     )
     (mapcar
       '(lambda (at)
          (vla-put-textstring
            at
            (rtos (/ (caddr (if (= (vla-get-tagstring at) "Height_1")
                              p1
                              p2
                            )
                     )
                     1000.
                  )
                  2
                  2
            )
          )
        )
       ats
     )
   )
 )
 (princ)
)(vl-load-com)

Posted

Sorry, i misunderstood the question. :-)

Posted

Tharwat, thanks for that.



i tried the lisp but i get the same height values in two different point with different z value.

Posted
Tharwat, thanks for that.



i tried the lisp but i get the same height values in two different point with different z value.



So is that what you wanted or you still in need of any changes?

Posted (edited)

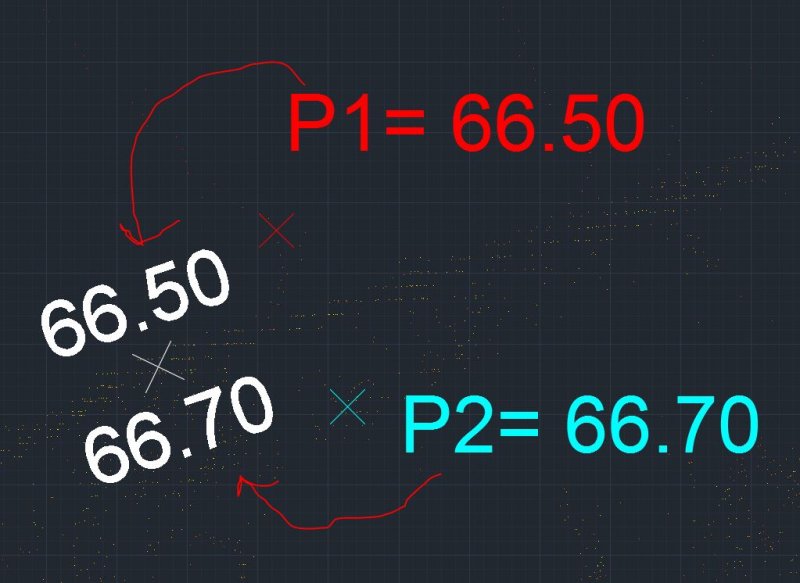

I would like to add the z value of the first point in Height_1 and the z value of the 2nd point on Height_2. Right now your new version of the lisp copy the first z value on both the place (Height_1 and Height_2).



Thanks




Edited by whosa
Posted
(if (= (vla-get-tagstring at) "Height_1")
                              p1
                              p2
                            )



I would like to add the z value of the first point in Height_1 and the z value of the 2nd point on Height_2



That's what the program does and you can have a look at the above part of codes which means if the tag name is equal to "Height_1" then get the Z coordinate of point one ( p1 ) otherwise get Z of ( p2 ).

Posted

The tag name is 11.11 and not Height_1 or Height_2



So just change the string in my last posted codes "Height_1" to "11.11"
