vb.net need help please

January 13, 2009

im having trouble with drawing a xline in vb.net

its seems to be saying that there is a issue with how im setting the startpoint for the xline.

Would someone please give me an example of how to draw a xline in vb.net??

here is some of what i have


[size=2][color=#0000ff]Dim [/color][/size][size=2]PEO1 [/size][size=2][color=#0000ff]As [/color][/size][size=2]PromptEntityOptions = [/size][size=2][color=#0000ff]New [/color][/size][size=2]PromptEntityOptions(VBCR & "Select top of batter: ")
peo1.SetRejectMessage(" Invalid entity! Select LWPoly, 2DPoly, 3DPoly, Line, Arc or Spline only!")
peo1.AddAllowedClass([/size][size=2][color=#0000ff]GetType[/color][/size][size=2](polyline),[/size][size=2][color=#0000ff]True[/color][/size][size=2])
peo1.AddAllowedClass([/size][size=2][color=#0000ff]GetType[/color][/size][size=2](polyline2d),[/size][size=2][color=#0000ff]True[/color][/size][size=2])
peo1.AddAllowedClass([/size][size=2][color=#0000ff]GetType[/color][/size][size=2](polyline3d),[/size][size=2][color=#0000ff]True[/color][/size][size=2])
peo1.AddAllowedClass([/size][size=2][color=#0000ff]GetType[/color][/size][size=2](Line),[/size][size=2][color=#0000ff]True[/color][/size][size=2])
peo1.AddAllowedClass([/size][size=2][color=#0000ff]GetType[/color][/size][size=2](spline),[/size][size=2][color=#0000ff]True[/color][/size][size=2])
peo1.AddAllowedClass([/size][size=2][color=#0000ff]GetType[/color][/size][size=2](arc),[/size][size=2][color=#0000ff]True[/color][/size][size=2])
[/size][size=2][color=#0000ff]Dim [/color][/size][size=2]PER1 [/size][size=2][color=#0000ff]As [/color][/size][size=2]PromptEntityResult = ED.GetEntity(PEO1)
[/size][size=2][color=#0000ff]If [/color][/size][size=2]PER1.Status <> PROMPTSTATUS.OK [/size][size=2][color=#0000ff]Then Exit Function
[/color][/size][size=2]TopCurve = trans.GetObject(per1.ObjectId, Autodesk.AutoCAD.DatabaseServices.OpenMode.ForRead)

[/size][size=2][color=#0000ff]Dim [/color][/size][size=2]PEO2 [/size][size=2][color=#0000ff]As [/color][/size][size=2]PromptEntityOptions = [/size][size=2][color=#0000ff]New [/color][/size][size=2]PromptEntityOptions(VBCR & "Select bottom of batter: ")
peo2.SetRejectMessage(" Invalid entity! Select LWPoly, 2DPoly, 3DPoly, Line, Arc or Spline only!")
peo2.AddAllowedClass([/size][size=2][color=#0000ff]GetType[/color][/size][size=2](polyline),[/size][size=2][color=#0000ff]True[/color][/size][size=2])
peo2.AddAllowedClass([/size][size=2][color=#0000ff]GetType[/color][/size][size=2](polyline2d),[/size][size=2][color=#0000ff]True[/color][/size][size=2])
peo2.AddAllowedClass([/size][size=2][color=#0000ff]GetType[/color][/size][size=2](polyline3d),[/size][size=2][color=#0000ff]True[/color][/size][size=2])
peo2.AddAllowedClass([/size][size=2][color=#0000ff]GetType[/color][/size][size=2](Line),[/size][size=2][color=#0000ff]True[/color][/size][size=2])
peo2.AddAllowedClass([/size][size=2][color=#0000ff]GetType[/color][/size][size=2](spline),[/size][size=2][color=#0000ff]True[/color][/size][size=2])
peo2.AddAllowedClass([/size][size=2][color=#0000ff]GetType[/color][/size][size=2](arc),[/size][size=2][color=#0000ff]True[/color][/size][size=2])
[/size][size=2][color=#0000ff]Dim [/color][/size][size=2]PER2 [/size][size=2][color=#0000ff]As [/color][/size][size=2]PromptEntityResult = ED.GetEntity(PEO2)
[/size][size=2][color=#0000ff]If [/color][/size][size=2]PER2.Status <> PROMPTSTATUS.OK [/size][size=2][color=#0000ff]Then Exit Function
[/color][/size][size=2]BottomCurve = trans.GetObject(per2.ObjectId, Autodesk.AutoCAD.DatabaseServices.OpenMode.ForRead)
[/size]
[size=2][color=#0000ff]Dim [/color][/size][size=2]PDO [/size][size=2][color=#0000ff]As [/color][/size][size=2]PromptDoubleOptions = [/size][size=2][color=#0000ff]new [/color][/size][size=2]PromptDoubleOptions(vbcr & "Specify distance between batter ticks: ")
PDO.AllowNegative = [/size][size=2][color=#0000ff]False
[/color][/size][size=2]PDO.AllowZero = [/size][size=2][color=#0000ff]False
[/color][/size][size=2]PDO.AllowArbitraryInput = [/size][size=2][color=#0000ff]False
[/color][/size][size=2]PDO.AllowNone = [/size][size=2][color=#0000ff]False
[/color][/size][size=2]PDO.DefaultValue = 5
[/size][size=2][color=#0000ff]Dim [/color][/size][size=2]PDR [/size][size=2][color=#0000ff]As [/color][/size][size=2]PromptDoubleResult = ed.GetDouble(PDO)
[/size][size=2][color=#0000ff]If [/color][/size][size=2]PDR.Status <> Promptstatus.OK [/size][size=2][color=#0000ff]Then Exit Function
[/color][/size]

[size=2][color=#0000ff]Dim [/color][/size][size=2]TopCurveLen [/size][size=2][color=#0000ff]As [/color][/size][size=2][color=#6f002f]Long [/color][/size][size=2]= topcurve.GetDistanceAtParameter(topcurve.EndParam)[/size]
[color=#008000][/color]
[size=2][color=#0000ff]Dim [/color][/size][size=2]DistBetween [/size][size=2][color=#0000ff]as [/color][/size][size=2][color=#6f002f]Integer [/color][/size][size=2]= PDR.Value
[/size][size=2][color=#0000ff]Dim [/color][/size][size=2]StepLength1 [/size][size=2][color=#0000ff]As [/color][/size][size=2][color=#6f002f]double [/color][/size][size=2]= DistBetween
[/size][size=2][color=#0000ff]Dim [/color][/size][size=2]StepLength2 [/size][size=2][color=#0000ff]As [/color][/size][size=2][color=#6f002f]double [/color][/size][size=2]= (steplength1 / 2)
[/size]
[size=2][color=#0000ff]Dim [/color][/size][size=2]StartPt1 [/size][size=2][color=#0000ff]As [/color][/size][size=2]Point3d = [/size][size=2][color=#0000ff]New [/color][/size][size=2]Point3d()
StartPt1 = topCurve.GetPointAtDist(StepLength1)
''msgbox (startpt1.ToString)

[/size][size=2][color=#0000ff]Dim [/color][/size][size=2]StartPt2 [/size][size=2][color=#0000ff]As [/color][/size][size=2]Point3d = [/size][size=2][color=#0000ff]New [/color][/size][size=2]Point3d()
StartPt2 = topcurve.GetPointAtDist(StepLength2)

[/size][size=2][color=#0000ff]Dim [/color][/size][size=2]EndPt1 [/size][size=2][color=#0000ff]As [/color][/size][size=2]Point3d = [/size][size=2][color=#0000ff]New [/color][/size][size=2]Point3D()
EndPt1 = bottomcurve.GetClosestPointTo(StartPt1, [/size][size=2][color=#0000ff]True[/color][/size][size=2])
''msgbox (endpt1.ToString)
[/size][size=2][color=#0000ff]Dim [/color][/size][size=2]EndPt2 [/size][size=2][color=#0000ff]As [/color][/size][size=2]Point3d = BottomCurve.GetClosestPointTo(StartPt2, [/size][size=2][color=#0000ff]true[/color][/size][size=2])
[/size]

[size=2][color=#0000ff]Dim [/color][/size][size=2]Xline1 [/size][size=2][color=#0000ff]As [/color][/size][size=2]Xline = [/size][size=2][color=#0000ff]New [/color][/size][size=2]Xline()
xline1.StartPoint = startpt1[/size][size=2][color=#008000]'PROBLEM HERE
[/color][/size][size=2]xline1.EndPoint = ENDPT1[/size][size=2][color=#008000]'PROBLEM HERE
[/color][/size][size=2]Xline1.Visible = [/size][size=2][color=#0000ff]True
[/color][/size][size=2]AcadBTR.AppendEntity(xLINE1)
Trans.AddNewlyCreatedDBObject(Xline1, [/size][size=2][color=#0000ff]True[/color][/size][size=2])
Trans.Commit()
[/size]

I'm new to vb.net so please be kind.

Any example material or websites would help also

January 14, 2009

Have you tried:

xline1.BasePoint = startpt1

xline1.SecondPoint = ENDPT1

January 14, 2009

it says that "Secondpoint - is not a member of AutoDesk.Autocad.DatabaseServices.XLINE"

Any Other ideas??

Atleast it skipped the StartPt1 as being a error

Getting there

January 14, 2009

it says that "Secondpoint - is not a member of AutoDesk.Autocad.DatabaseServices.XLINE"

Any Other ideas??

Atleast it skipped the StartPt1 as being a error

Getting there

That's odd. It is listed in the Docs, and I can get it to work with some C# code I have available.

January 14, 2009

Where did you get that help guide??

Does it come with autocad 2009??

That would be really helpful. Im just learning off the net and trial and error

January 14, 2009

Go to: http://usa.autodesk.com/adsk/servlet/index?id=773204&siteID=123112

and click on the License and Download link.

That link asks you to provide some information, but in return allows the download of the ObjectARX SDK. In there you find the help files for .NET, as well as ObjectARX, along with some visual Class Maps and numerous code examples for Managed and UnManaged code.

January 14, 2009

Thanks very much for that

I think that will help a bit having that help guide.

Hey i still didnt work out the xline.secondpoint thing in vb.net.

So if you find out would you please let me know - thanks mate

January 14, 2009

Thanks very much for that

I think that will help a bit having that help guide.

Hey i still didnt work out the xline.secondpoint thing in vb.net.

So if you find out would you please let me know - thanks mate

I have to agree there.

If these imports are included:

Imports Autodesk.AutoCAD.Runtime

Imports Autodesk.AutoCAD.Geometry

Imports Autodesk.AutoCAD.ApplicationServices

Imports Autodesk.AutoCAD.EditorInput

Imports Autodesk.AutoCAD.DatabaseServices

How does this sample work for you:

   <CommandMethod("QA")> _
Public Sub Asdkcmd1()
       Dim db As Database = HostApplicationServices.WorkingDatabase
       Dim ed As Editor = Application.DocumentManager.MdiActiveDocument.Editor
       Using trans As Transaction = db.TransactionManager.StartTransaction()
           Dim ppo As PromptPointOptions = New PromptPointOptions("Select Base Point :")
           Dim ppr As PromptPointResult = ed.GetPoint(ppo)
           If ppr.Status <> PromptStatus.OK Then Exit Sub
           Dim base As Point3d = ppr.Value
           ppo.Message = "Select Second Point :"
           ppo.BasePoint = base
           ppo.UseBasePoint = True
           ppr = ed.GetPoint(ppo)
           If ppr.Status <> PromptStatus.OK Then Exit Sub
           Dim second As Point3d = ppr.Value
           If base <> second Then
               Dim entXline As Xline = New Xline()
               entXline.BasePoint = base
               entXline.SecondPoint = second
               Dim btr As BlockTableRecord = trans.GetObject(db.CurrentSpaceId, OpenMode.ForWrite)
               btr.AppendEntity(entXline)
               trans.AddNewlyCreatedDBObject(entXline, True)
           End If
           trans.Commit()

       End Using

   End Sub

January 14, 2009

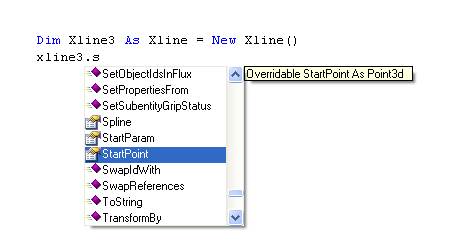

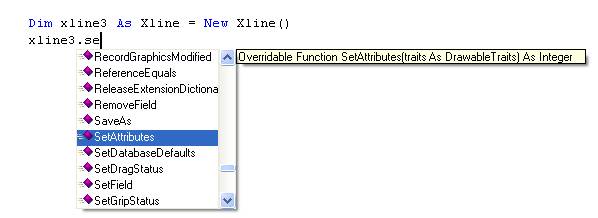

i don't know why its not working - but i can't add a "secondpoint" to the xline.

Pic Attached.

Im using these Imports

[size=2][color=#0000ff]Imports [/color][/size][size=2]System
[/size][size=2][color=#0000ff]Imports [/color][/size][size=2]System.Type
[/size][size=2][color=#0000ff]Imports [/color][/size][size=2]System.CLSCompliantAttribute
[/size][size=2][color=#0000ff]Imports [/color][/size][size=2]System.Reflection
[/size][size=2][color=#0000ff]Imports [/color][/size][size=2]System.Runtime.InteropServices
[/size][size=2][color=#0000ff]Imports [/color][/size][size=2]Microsoft.VisualBasic
[/size][size=2][color=#0000ff]Imports [/color][/size][size=2]Autodesk.AutoCAD.Runtime
[/size][size=2][color=#0000ff]Imports [/color][/size][size=2]Autodesk.AutoCAD.Geometry
[/size][size=2][color=#0000ff]Imports [/color][/size][size=2]Autodesk.AutoCAD.ApplicationServices
[/size][size=2][color=#0000ff]Imports [/color][/size][size=2]Autodesk.AutoCAD.EditorInput
[/size][size=2][color=#0000ff]Imports [/color][/size][size=2]Autodesk.AutoCAD.DatabaseServices
[/size][size=2][color=#0000ff]imports [/color][/size][size=2]Autodesk.AutoCAD.GraphicsInterface
[/size][size=2][color=#0000ff]Imports [/color][/size][size=2]AcadApp = autodesk.AutoCAD.ApplicationServices.Application
[/size]

Also my Acad references are;

acdbmgd.dll

acmdg.dll

Any ideas??

January 14, 2009

12345678910

January 14, 2009

That is indeed odd. I suppose it's possible that Civil 3D does something different with the Xline implementation.

Do you have a standard AutoCAD setup? Does the routine I posted above throw and error when run?

January 15, 2009

Well I do have acad 2007 aswell - i have changed the references to that and am running it through acad2007 - still unfortunately the same error.

I will try a few more things and get back to you asap.

Thanks for your help so far

January 15, 2009

one quick one - how do you insert a block and scale it with vb.net.

Say block name is "SWPIT"

and insertion point is (0, 0, 0)

??

January 15, 2009

Look at this thread:

http://www.cadtutor.net/forum/showthread.php?t=29882

It has some sample code which deal with block references. The BlockReference.ScaleFactors Property controls scaling.

January 19, 2009

thanks for that - i had a look over the weekend - was very useful indeed!

Hey how do you access a drawings utility and do this??

Code from VBA

[size=2][color=#008000]
EndPt1 = ThisDrawing.Utility.PolarPoint(StartPt1, Ang1, Dist1)
[/color][/size]

How do i do that in VB.net??

Thanks

January 19, 2009

actually something like this should work

[size=2][color=#0000ff]
Public Function [/color][/size][size=2]PolarPoint([/size][size=2][color=#0000ff]ByVal [/color][/size][size=2]basepoint [/size][size=2][color=#0000ff]As [/color][/size][size=2]Point3d, [/size][size=2][color=#0000ff]ByVal [/color][/size][size=2]angle [/size][size=2][color=#0000ff]As [/color][/size][size=2][color=#6f002f]Double[/color][/size][size=2], [/size][size=2][color=#0000ff]ByVal [/color][/size][size=2]distance [/size][size=2][color=#0000ff]As [/color][/size][size=2][color=#6f002f]Double[/color][/size][size=2]) [/size][size=2][color=#0000ff]As [/color][/size][size=2]Point3d
[/size][size=2][color=#0000ff]Return New [/color][/size][size=2]Point3d(basepoint.X + (distance * Math.Cos(angle)), basepoint.Y + (distance * Math.Sin(angle)), basepoint.Z)
[/size][size=2][color=#0000ff]End Function
[/color][/size]

Cheers
