Complex sheet metal issue

Recommended Posts

mattador04

Hello Everyone,

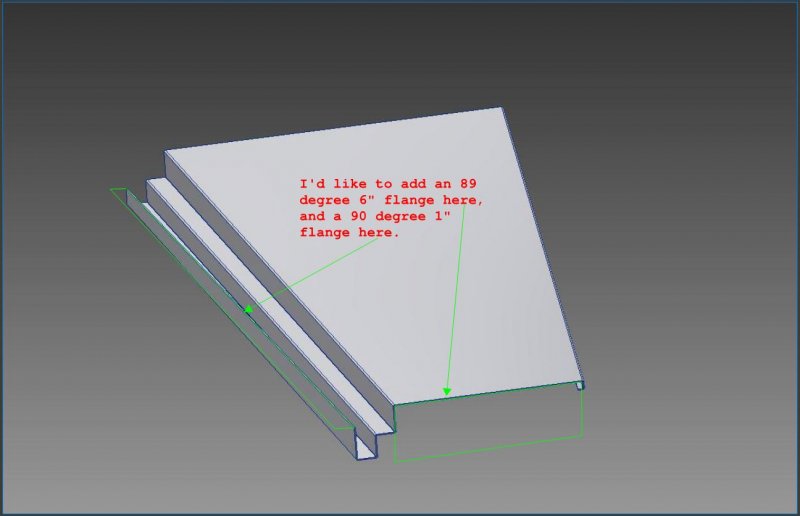

I have a sheet metal .ipt I'd like to add some flanges to, but am unable. It may have to do with the fact that i had to use extrusions to 'square up' the part. Does anyone have any advice on how to model this more efficiently? See attached .ipt and the .jpg describing issue further. Thanks in advance! :geek:

SW Roof Tie In - Tower Bridge.ipt

Roof Panel flanges problem.jpg

Share this post


Link to post
Share on other sites
mattador04

Can a flange be "tapered", so as not to have to make sketch 13 and extrusion 4 in the model?? What's the best way to do this??
