How do I 3D trim this?

Recommended Posts

Zox

So my case is this






I want blue object to stop protruding after red arches. I would usually make copy of red object somewhere on the side then use "solid subtract" to cut blue object the way I want it and the blue stuff floating above arches would get rid of by "separate" command but this doesn't work in this case.



Can someone give me some tips on what to do?

Share this post


Link to post
Share on other sites
ReMark

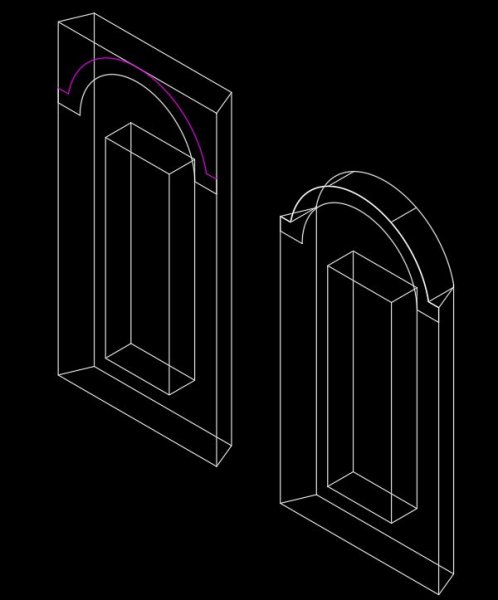

I would take one section of wall and slice it using a profile of the arch using the object or surface option. Then I would array the wall section to complete the other sides.

Edited by ReMark

Share this post


Link to post
Share on other sites
ReMark

Sorry, had to go with my own version.




Share this post


Link to post
Share on other sites
Zox

I guess I don't know how to use "slice" option: I choose "slice" then I chose the blue object and then I choose object or surface but I don't know how to choose profile of the arch. I click and click and nothing happens.

Share this post


Link to post
Share on other sites
ReMark

I used the profile of the arch BEFORE it was extruded. And I sliced only one section of the octagonal wall.
