Array problem


Recommended Posts

Hi All,





trying to draw something using path array.





I've attached part of the drawing. I want the objects to have a 2mm space between them.





any how or info on how to do this would be hugely greatful

Drawing1.dwg

Link to post
Share on other sites

I see a couple of problems. 1) The path is not continuous (i.e. - it is a series of separate lines and arcs). 2) The first, short, line segment does not connect to the first arc segment.



Why do you want such a small space between the objects given the shape of your 3D solid (identified as a "car_top")?



I would recommend that you first move the line segment into the proper position. Next I would use the PEDIT or JOIN command to make your lines and arcs (I think there is even a single lightweight polyline too) into one continuous polyline. Reposition the car top relative to the beginning of the line and invoke the ARRAY command.

Link to post
Share on other sites

Here's what I was able to accomplish. For the sake of clarity I made the path layer white and the car_top layer magenta. Having both objects the same dark color just doesn't work for me.



Top down view in 2Dwireframe visual style.

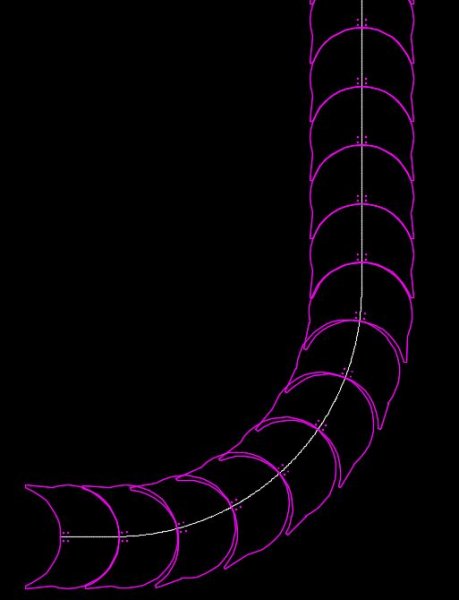

A portion of the array along the path.

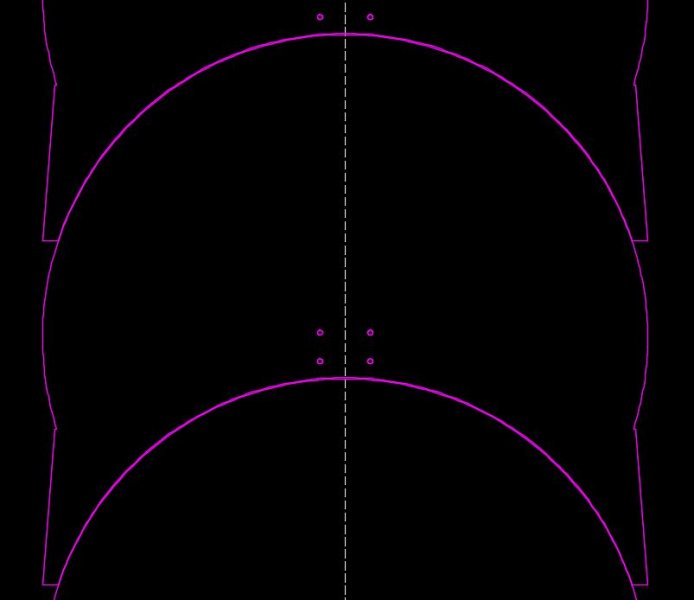

Closeup of array in a straight segment of the path.

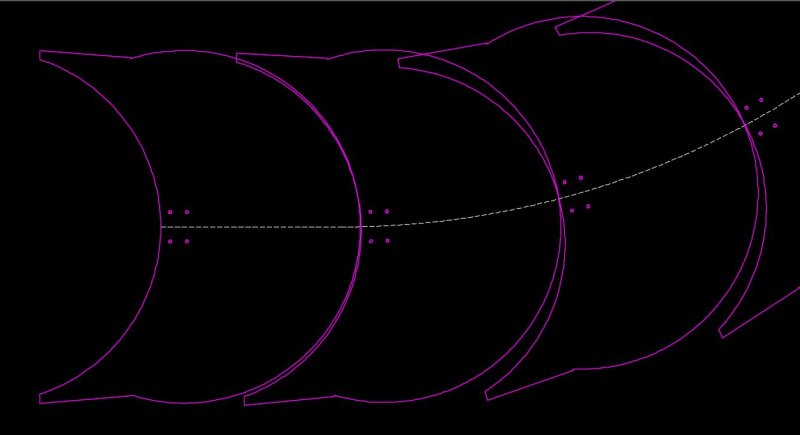

Closeup of array at beginning of path. See what is happening with the corners of the "car_top" as it makes the turn?


Link to post
Share on other sites

Thanks for the input ReMark. I see what you mean by the corners.





This is a segment of a piece of machinery I seen. It's a carousel, which is a loop around a warehouse.





If I move the base point, would it prevent the corners overlapping?

Link to post
Share on other sites
