BIM Time is Here

Recommended Posts

Bill Tillman

I've been advising clients that sooner or later everything will be done in BIM. At least the bigger commercial projects. Well, this morning I had to watch as a client had to turn down a big contract because no one in his staff has the necessary experience to draft the shop drawings in a BIM compatible format. Okay, now the time has come when I must stop using the excuse of "someday I'll finally learn what I need to know about BIM to do it." So as I start this journey let me ask the following questions:



I've been told that BIM is total 3D. So does that mean the drawings must be produced in 3D models?



As I understand BIM, the models are produced in 3D and a datum point is used as the origin point. This data is then transmitted to the project owners and they import it into their master database. So again, it's a question of 3D or 2D.



I just read an article that you can take your 2D CAD files and using a conversion program to convert them to BIM compatible files. I'm not sure I follow this as 3D models are what the end product is. I don't see how you get a 3D model from a 2D model unless there is a lot of linking and hand holding throughout the conversion process.



IS Revit the only AutoDesk product to work with BIM. I seem to recall a tutorial I did years ago which used ACAD Architecture version. Never got to finish this tutorial so now I guess I'll have to polish it off.

Share this post


Link to post
Share on other sites
tzframpton

Bill, BIM is a process and yes it can be 2D. It's a process of embedding information into a model. And yes, Revit is the flagship platform from Autodesk. Bentley and Bricsys, among others, have their versions as well.

Share this post


Link to post
Share on other sites
halam

I agree with Tannar that Bim isn't invented to exclude 2d and certain software. I personally find AutoCAD (DWG if you like) better at this proces than Revit. Because it can combine more and better different sorts of *MEDIA*.(sorry Tannar) And if you like to read a good article about the function of 2d versus 3d you should read..



https://tangerinefocus.com/2017/09/02/the-drawing-vs-model-debate-is-wasting-this-industrys-energy/



And what is your opinion, does the Robot in quantum mechanics have a opinion?

Edited by halam

Share this post


Link to post
Share on other sites
lrm

Before ever having used Revit I wondered how it was conceptually different than AutoCAD. I asked some Revit users and they could not really articulate the difference. They said “you can use a library of standard parts”. I said “well, AutoCAD can do that”. They said “Revit let’s you associate miscellaneous data with an object”. I said “well, AutoCAD can do that”. And so the conversation went without me getting a good understanding of the conceptual difference between the two products.



Here then is my brief explanation of the conceptual similarities and difference between AutoCAD and Revit for the AutoCAD user who has never used Revit.



AutoCAD, 3ds Max, and many other traditional 3D CAD systems can be thought of as having a 3D world where geometry is constructed. The 3D geometry may be composed of wires, surfaces (flat or sculptures) and solids. The user can view the 3D model from any orientation. To create an engineering drawing a particular viewing orientation is chosen (front, top, auxiliary,…) and the user adds drafting details like notes, dimension lines, and crosshatching. Additional views are made as needed to provide detail views. I call these drafting additions “cosmetic” graphics. They are not part of the nominally sized geometric model but do provide additional information to help interpret the model. AutoCAD over the years implemented various ways to address the need to make drawings from 3D models. The introduction of “paper space” and the awkward scheme of controlling object visibility via viewports was done to better enable the creation of engineering drawings from a 3D model.



Revit in contrast relies on a series of 2D models and a 3D model that are both independent and dependent on each other. Since architects and civil engineers often use plan and elevation views Revit specifically let’s you create 2D plan and elevation views (models) that are not in the same 2D/3D world of the other views. They are linked to each other behind the scene. This conceptual approach has several advantages. For example, when you look at the front view of a 3D AutoCAD model of a box each edge that you see is actually two lines, the edge in the front of the box and the edge behind it at the back of the box. Revit doesn’t have this problem. In defining standard building components such as a window in Revit you typically define a 2D plan view of the window and one or more elevation views. These are separate graphics that are imported into your Revit file when the window is inserted you’re your file. This approach plus a modern user interface makes many tasks for creating a model of a building and its drawings much easier in Revit than AutoCAD. In addition, whereas AutoCAD is a general purpose geometry modeling system Revit is targeted for buildings, bridges, and other constructed systems. Features such as reflected ceilings and an understanding of the floors of a building are an integral part of Revit. Revit is not well suited for creating a model of a complex 3D manufactured products like a valve or desktop printer.



The real “BIM” aspect of Revit is not so much this separation of drawing views but a much more sophisticated capability to associate non-geometric data (e.g., manufacturer, serial number, service schedule, etc.) with building components.



As Autodesk’s Inventor addressed the need to distinguish between drawings and models via part files, assembly files and drawing files, Revit addressed the difference between these needs for architects and civil engineers.

Share this post


Link to post
Share on other sites
tzframpton
Before ever having used Revit I wondered how it was conceptually different than AutoCAD. I asked some Revit users and they could not really articulate the difference. They said “you can use a library of standard parts”. I said “well, AutoCAD can do that”. They said “Revit let’s you associate miscellaneous data with an object”. I said “well, AutoCAD can do that”. And so the conversation went without me getting a good understanding of the conceptual difference between the two products.
While those answers are certainly correct regarding Revit and BIM, it's not the whole picture.



When it comes to Revit, it expects - almost requires - you to plug information in. Consider the two following screenshots of information population of a fire protection pipe and a duct in Navisworks:

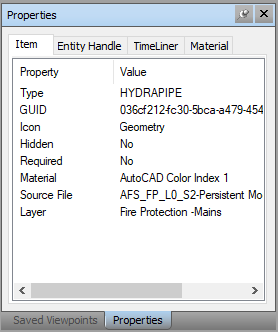

AutoCAD file: FP Piping

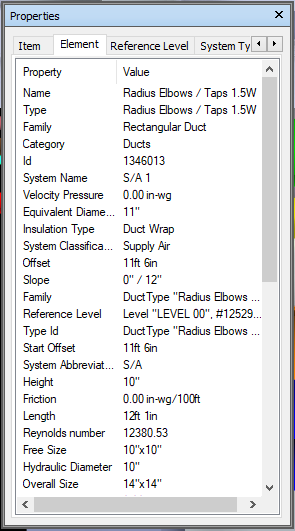

Revit File: HVAC Duct




Now, could you have AutoCAD populate all of this info in the AutoCAD file? Sure. But at what cost? And what about environmental parameters such as what level you're on (2nd floor, mezzanine, roof, etc)? You'd have to, quite literally, manually include all of this information. This is not at all a usable solution. So while you responded that "AutoCAD can do that", you're not wrong, but it's an unreasonable solution (unless of course you're using a vertical product such as ACA or AMEP).



Revit is a platform that gives you a reasonable solution to managing data from a material building perspective. Is it the best at it? Not at all, but it's a solution nonetheless.



AutoCAD gives you "Layer" and "Color" and "Material" by default, and that's about it. Revit at least gives you Categories, and at best gives you robust data managing for your own use. 3D modeling is a side bar, honestly. It's the information. To have it already there, ready to grab if you take a few minutes to add whatever data you want is invaluable and is the true selling point of BIM. I've been on the receiving end of incoming architectural and structural Revit models that are stripped of any and all documentation, and yet I still know exactly what's going on in that building, because of the information embedded into the model elements and environment.



This is my response to the "AutoCAD does that too" response. Logically, yes it can. Reasonably, no it can't.



Hope this helps. 8)



-TZ

Share this post


Link to post
Share on other sites
halam

Notuced you made these screenshots from Navisworks.

The conversion to nwc/nwd from either rvt or dwg only pick up certain parts. Parts of information that Autodesk want you to see in navisworks

Information you refer to is metadata that sticks to 3d forms. Dwg is just as compatible to

A. Model 3d

B. Stick metadata to it

do that as the rvt file. All autocad verticals prove it if you use Navisworks on these.



There is tons of information available if you convert these in navisworks. Not only freaking layers ;-) So there really is no real difference there. For me, still, rvt It just is being marketed as 'bim tool' for us to believe that (.. to buy)

Openbim based IFC is the closest real thing what the idea really is. But ifc development is sooooo slow.

Edited by halam

Share this post


Link to post
Share on other sites
tzframpton

There's "no real difference"? Can you elaborate please?

Share this post


Link to post
Share on other sites
halam

To make that more clear, and since this forum is very much for dwg users.

I personally don't see BricsCAD Bim suite (based on dwg) any less or more capable of doing Bim than Revit, Tekla structures, ArchiCAD or Allplan.. Hell, even Sketchup can do Bim these days..



Do you?

Edited by halam

Share this post


Link to post
Share on other sites
lrm

tzframpton, It appears I was not clear in my post (#5) regarding the strength of Revit vs. AutoCAD for building design and documentation. I wholeheartedly agree that Revit can be the superior product in many ways for AEC applications.



What I was trying to express in the first paragraph of my post was the frustration and confusion I faced several years ago when I heard many raves for Revit but I had never used it myself. I wanted to know more about Revit but the Revit users I talked to couldn’t articulate what made it so good and how it was different from AutoCAD. The response in my post “well, AutoCAD can do that” was aimed at the non-Revit user who might be wondering how the products differ. The answer is more complex than the superficial comparison of the couple of features I was asking about. In no way was I trying to say that AutoCAD and Revit are equivalent!



Your excellent post (#6) surely address some of the differences. Your example of the information for a fire protection pipe should help the AutoCAD user who is not familiar with Revit gain a feel for one way that the two products differ. As you know, Revit is hard-wired for building design whereas AutoCAD is a general purpose CAD system and as a result the Revit user has many built-in features for building design that are not available in AutoCAD.



I found it useful to me that to understand and appreciate the uniqueness of Revit it was helpful to understand that unlike AutoCAD, Revit does not rely on a single 3D geometric model. The concept of multiple 2D plan views and 2D elevation views tied to a 3D model provide many benefits in ease-of-use and the creation of formal engineering drawings. Of course, the strong database capabilities are also key to Revit's strength. On the downside, I have found it much more challenging to create complex 3D geometry (I am an infrequent Revit user).



My comment “well, AutoCAD can do that” was my way of provoking the reader to ask “How do these products differ?” and “Is Revit something I should consider?”. It is good to see experienced BIM users on this forum detail what they think are the issues and their experience with the technology.



Lee

Share this post


Link to post
Share on other sites
Bill Tillman

Thanks all. I see that like most things in design/construction there's always lots to talk about. I'm going to be hacking through the processes over the next few days and have to make a presentation by mid next week to the decision makers. Wish me luck.



BTW: I found this article and it was some reasonable and sound thinking about the decisions which have to be made when moving to BIM/Revit.

Share this post


Link to post
Share on other sites
halam

Somewhere in the beginning of the article..



"To be clear, however, when the acronym BIM is used in this article, it is referring to Revit"

Don't ask why?



Good luck Bill!

Share this post


Link to post
Share on other sites
tzframpton
tzframpton, It appears I was not clear in my post (#5) regarding the strength of Revit vs. AutoCAD for building design and documentation. I wholeheartedly agree that Revit can be the superior product in many ways for AEC applications.



What I was trying to express in the first paragraph of my post was the frustration and confusion I faced several years ago when I heard many raves for Revit but I had never used it myself. I wanted to know more about Revit but the Revit users I talked to couldn’t articulate what made it so good and how it was different from AutoCAD. The response in my post “well, AutoCAD can do that” was aimed at the non-Revit user who might be wondering how the products differ. The answer is more complex than the superficial comparison of the couple of features I was asking about. In no way was I trying to say that AutoCAD and Revit are equivalent!



Your excellent post (#6) surely address some of the differences. Your example of the information for a fire protection pipe should help the AutoCAD user who is not familiar with Revit gain a feel for one way that the two products differ. As you know, Revit is hard-wired for building design whereas AutoCAD is a general purpose CAD system and as a result the Revit user has many built-in features for building design that are not available in AutoCAD.



I found it useful to me that to understand and appreciate the uniqueness of Revit it was helpful to understand that unlike AutoCAD, Revit does not rely on a single 3D geometric model. The concept of multiple 2D plan views and 2D elevation views tied to a 3D model provide many benefits in ease-of-use and the creation of formal engineering drawings. Of course, the strong database capabilities are also key to Revit's strength. On the downside, I have found it much more challenging to create complex 3D geometry (I am an infrequent Revit user).



My comment “well, AutoCAD can do that” was my way of provoking the reader to ask “How do these products differ?” and “Is Revit something I should consider?”. It is good to see experienced BIM users on this forum detail what they think are the issues and their experience with the technology.



Lee

You were clear in your post. I knew exactly what you were truly conveying, so don't think I was in any way singling this part out. I was merely giving an actual response whereas those colleagues of yours couldn't, just for the simple sake of continuing the conversations.



I wonder, though, if those colleagues of yours were AutoCAD users? These days, I am beginning to find people who've only used Revit and not AutoCAD, so they really cannot provide a decent critique of AutoCAD while simultaneously defending Revit. It's kind of funny, actually, when these situations have arose. By that I mean you have the AutoCAD only user defending AutoCAD to the Revit only user defending Revit, but either side hasn't used the other program to have a real understanding. Two of my employees do not touch AutoCAD, nor will they be taught AutoCAD because our industry that we serve has moved beyond AutoCAD.



And you are right: Revit is very specific. Even for certain markets it's specific for, I wouldn't say it's the best program. Things like complex geometry is not at all what Revit was ever intended to be used for and shouldn't be faulted for such obvious truths. Components that make up a building (walls, doors, windows, ceilings, lights, furniture, ducts, pipes, equipment, etc) do not need high level of complexity. Now, if you only stay in the conceptual massing environment, you can make as complex of a 3D model as anything, but you can't do much with that afterward. Complex 3D modeling should stay where it's intended, such as AutoCAD, SolidWorks, Inventor, Fusion, and so on. If you're an architectural firm and need the best solution on the market for commercial building design and modeling, Revit cannot be beat at this point in time. That'll all change someday when the free market develops something new and better and Revit will then become dethroned.



Ultimately, the BIM industry and the platform BIM was built on, is absolutely better than anything AutoCAD can deliver for specific AEC markets and industries. It is in fact true and in my mind it is not open for debate or discussion. Find another program, then the debate and discussion can continue, but there is no debate or discussion with AutoCAD. And this is not based on what AutoCAD can do, it's what AutoCAD cannot do. No AutoCAD program allows multiple users in the same file at the same time, while delegating object-based borrowing, synced to a central model on a server that offices nationwide can connect to and the performance be as good as if it were all in a local area network on a gigabit connection in a single office location. Nor can AutoCAD offer the tools to create 3D building models with bidirectional documentation outputs in a natural and dynamic environment. It just can't. So I don't use it for any BIM processes, simple as that. If this topic moves outside of the realm and domain of the specific BIM processes, then Revit becomes null and void of any discussion whatsoever.



Again, this is only my $0.02 and I'm just jumping in conservation is all. 8)



-TZ

Share this post


Link to post
Share on other sites
SLW210

I was using AutoCAD for BIM way back in the '90s, doing conveyor construction, with a good set of LISPs as well as some VBA, using blocks with appropriate information included as attributes. After designing the conveyor layout, a few clicks and I had the quantities as well as the shop drawings with the bill of materials, including the structural steel details and connections. It was all 2D though, if we were using 3D back then it would have made the section views a lot easier to make. Most of my CAD work then was designing some of the one off components and redoing some of the standard components. To be honest, getting some good LISPs and other programs, depending on the field of work, is not at all cost prohibitive, even now, some of the verticals and third party add-ons available now for AutoCAD and verticals are pretty well priced, not to mention Inventor, Solidworks, etc.. Not to mention they all do shop drawings very well. I've used AutoCAD (since R10 on a regular basis), AutoCAD Mechanical, AutoCAD Mechanical Desktop, Inventor, Solidworks and ProE (now CREO). They all do shop drawing with information pretty good IMHO, when properly used.



As per all of those articles, REVIT and other programs labeled as BIM aren't the only BIM game, BIM = Building (as constructing not "a building") Information (AutoCAD, Inventor, Solidworks, etc. all allow information to be included in the model) Modeling (a physical representation of an object which maintains general relationships between its constituent aspects). This is something many seem to get confused..



Yes indeed, "for specific AEC markets and industries" like "commercial building design and modeling" and the collaboration abilities needed in these industries, Revit or similar software is becoming more and more a necessity, no doubt about that. The reason most other CAD users knock the Revit users is because most of them are unaware of Revit's limitations nor as mentioned the abilities of other software. And it is erroneous to call them BIM industries to begin with, all industries have use of BIM, not just commercial buildings.



Which brings me to my question from the original post, How do you "create shop drawings in BIM compatible formats"? The few times I looked into using Revit products (been a few years), I could find no easy way to create the detailed shop drawings straight from Revit (though I recall Revit Structure may have done them), though it seems there are some third party add-ons that claim to do this. Though it appears the original question is going in the "other direction" to "create shop drawings in Revit compatible formats".



I am curious as to how you do this.

Share this post


Link to post
Share on other sites
tzframpton
The reason most other CAD users knock the Revit users is because most of them are unaware of Revit's limitations nor as mentioned the abilities of other software.
This is exactly my point, though. It's the other side of the same coin. I know both programs, very well indeed, so I personally can have an opinion on both through actual experience. Take your sentence above, and I'll reword it this way: "The reason most Revit users knock the AutoCAD users is because most of them are unaware of AutoCAD's limitations nor as mentioned the abilities of other software."



Exactly the same.



Which brings me to my question from the original post, How do you "create shop drawings in BIM compatible formats"? The few times I looked into using Revit products (been a few years), I could find no easy way to create the detailed shop drawings straight from Revit (though I recall Revit Structure may have done them), though it seems there are some third party add-ons that claim to do this. Though it appears the original question is going in the "other direction" to "create shop drawings in Revit compatible formats".



I am curious as to how you do this.

I mean... what's Revit incapable of when it comes to shop drawings? I'm not sure I'm following your inquiry here. I create fabrication level shop drawings day in day out. I would propose that it's no better or worse than AutoCAD, so as long as we're talking about building-related shop drawings (in other words, no super complex modeling such as the detail parts of printer manufacturing or the inner components of a cell phone).



In the event that AutoCAD by itself can't create things, you can always fall on a 3rd party add-on. Same with Revit, whatever it cannot do OOTB, 3rd party add-ons exist. Same thing or no?



-TZ

Share this post


Link to post
Share on other sites
SLW210
In the event that AutoCAD by itself can't create things, you can always fall on a 3rd party add-on. Same with Revit, whatever it cannot do OOTB, 3rd party add-ons exist. Same thing or no?



Exactly my point, same thing. OOTB AutoCAD is capable of quite a lot on it's on, with verticals and many specific add-ons it can pretty much match up to many specific CAD platforms, including BIM and doesn't really need add-ons for most, the programing just makes it more automated. I do all kinds of work in just vanilla AutoCAD, as far as LISP I use mostly Al's Steel Mill occasionally when I need that sort of thing, other than that not much on any regular basis.



I mean... what's Revit incapable of when it comes to shop drawings? I'm not sure I'm following your inquiry here. I create fabrication level shop drawings day in day out. I would propose that it's no better or worse than AutoCAD, so as long as we're talking about building-related shop drawings (in other words, no super complex modeling such as the detail parts of printer manufacturing or the inner components of a cell phone).

-TZ



I thought my question was just that, a question. How are you creating shop level fabrication drawings? More precisely I was inquiring as to the OP "draft the shop drawings in a BIM compatible format", it seems they were asking for shop level fabrication drawings to use in Revit, which seems backwards to me, I would think the process would start with a model then work towards a fabrication drawing. There's nothing more to the question, I seem to never get an answer to this question. I know several on some of the Revit forums a few years ago were using Inventor, Solidworks, etc. to make drawings for the shop.



So, once again, how would you "draft the shop drawings in a BIM compatible format"?



As to the my specific needs, sheet metal layouts and pipe cut templates would work nicely. I do see where Autodesk has the Fabrication tools for MEP and Revit(?), that might be workable.

Share this post


Link to post
Share on other sites
tzframpton
So, once again, how would you "draft the shop drawings in a BIM compatible format"?
I mean, you just... do it. Still not sure how you can't. I guess I'm missing a point here.



As to the my specific needs, sheet metal layouts and pipe cut templates would work nicely. I do see where Autodesk has the Fabrication tools for MEP and Revit(?), that might be workable.
Pipe cut templates is not possible with Revit, and sheet metal layouts is not possible if you mean "unfolding" flat patterns. All of this would have to be 3rd party, or done in another program.



-TZ

Share this post


Link to post
Share on other sites
halam

I am just a average 'bim expert', but I know "drawing" and "bim" should not be used in the same sentence.
