How to get this file cut ready (What am i missing)

Recommended Posts

paddynel0

Hi all. am using AutoCAD 07. (A dinosaur i now) along with solid-works.

For some reason i cant get the file to extrude in solid-works as it says end point is wrongly shared by multiple entities, and cant find the problem in AutoCAD ether.

Iv attached the file hopefully one of you guys can see where am going wrong.

angel1.DXF

Share this post


Link to post
Share on other sites
Cad64

I ran the OVERKILL command on your drawing. It found and deleted 25 duplicates and 4 overlapping objects. I don't use Solidworks, so I don't know if that's what's causing the problem, but I see that all of your polylines are individual line segments, not continuous polylines like I would expect. You may need to join your polylines.

Share this post


Link to post
Share on other sites
SLW210

I had a lot of items that were removed when I ran it through the clean up tool for the water jet. And as stated by Cad64, it is made up of lots of lines, it looks like it was made (poorly) for some sort of cutter. What is the need for extruding?


Share this post


Link to post
Share on other sites
paddynel0

I would mostly use solid works so extruding it is may way of making sure it will cut ok.

Share this post


Link to post
Share on other sites
paddynel0

This was a bitmap trace from google image so that's why it was poor quality.

Share this post


Link to post
Share on other sites
SLW210

Do you have any cleanup tools that came with your cutter? What cutter are you using?

Share this post


Link to post
Share on other sites
SLW210

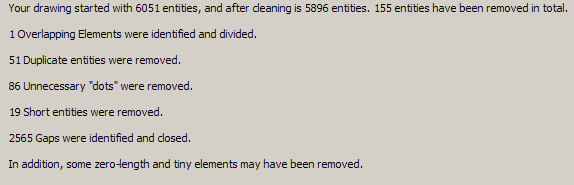

Here is the cleaned up file, see if this works.

angel1_imported.dxf

Share this post


Link to post
Share on other sites
