Island infiil corridor modeling

drnicifor

By drnicifor
in Civil 3D & LDD

 Share

Recommended Posts

drnicifor Newbie

drnicifor

Posted
Posted

Hi All

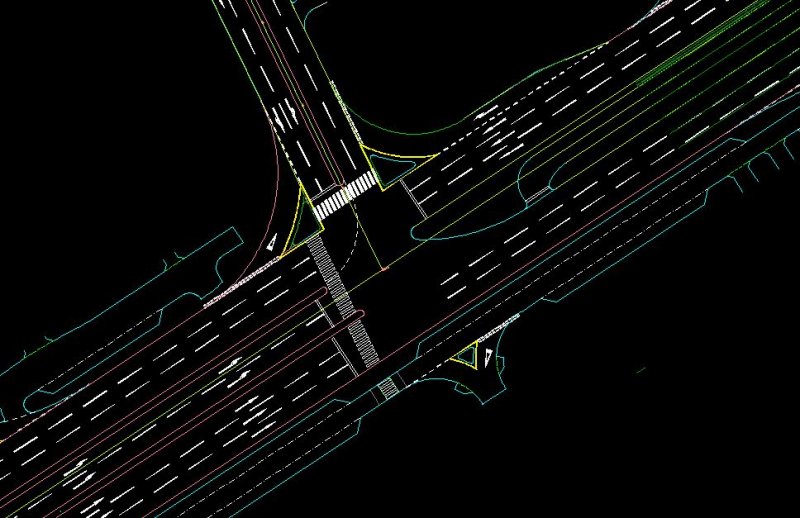

I am using C3D 2014 and I am trying to make a corridor model for the attached intersection.

Does anyone know how to do corridor model island infill and which subassembly should be used in that case in the attached image?



Many thanks

Nose island.jpg

Junction 1.jpg

drnicifor Newbie

drnicifor

Posted
  • Author
Posted

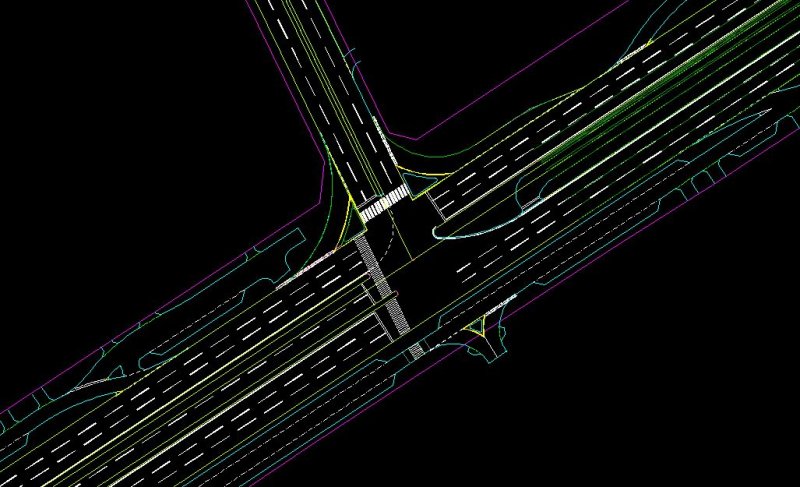

In the previous post, the actual junction is in the image 1a.

Junction 1a.jpg
