Drawing Roof Tiles to Inclined Canopy

Recommended Posts

nicolas

Hi,



I need help in drawing roof tiles to an inclined or lean-to canopy. The roof tiles are the vortex-made ones more precisely the Double Roman.



Thanks,



Nicolas.





RoofTiles 01 Elevation.jpg

RoofTiles 01.dwg

Share this post


Link to post
Share on other sites
ReMark

Orthographic projection is not a viable option here?



BTW...In your drawing the tiles are merely a simplistic representation of true Double Roman roof tiles.  Since you did not go into great detail with those tiles the same approach could be used for the tiles as viewed from the side.

Edited by ReMark

Share this post


Link to post
Share on other sites
ReMark

This is what the profile of three double roman roof tiles would look like.




  • Like 1

Share this post


Link to post
Share on other sites
ReMark

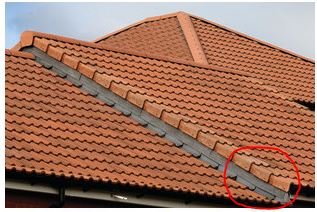

I found this side view of a roof covered with double roman roof tiles.  It may be of some help to you.




  • Like 1

Share this post


Link to post
Share on other sites
