CADsince07 Posted January 26, 2009 Posted January 26, 2009 Hi All, I am currently doing a course and the first task requires me to 'set limits to suit A3 paper sizes'. I dont work with limits in my current job and so i am a bit stuck as to how to set them and what suitable limits for A3 would be?? How do i set limits in a drawing and what would suitable limits be?? Cheers for your help!!!! Quote
Raggi_Thor Posted January 26, 2009 Posted January 26, 2009 If you work in mm (millimeters) it's quite simple. A3 = 420 x 210 Divide with your planned plotscale If you plan to plot in 1:100 set your limits to 42000 x 21000, for example Lower Left = 0,0 Upper Right = 42000,21000 If you do this often you should have a menu made to do for you or save some template files (dwt) to use later. Quote
CADsince07 Posted January 26, 2009 Author Posted January 26, 2009 I do work in mm - and i am in the process of setting up a template file. How do i actually set the limits?? Thanks for your quick answer - but i need a step by step guide. It sounds like its pretty simple? Quote
Lee Mac Posted January 26, 2009 Posted January 26, 2009 This may be a stupid interruption, but, when working with a template, I would just have a border with dimensions of A3, in layout space and scale a viewport to suit my drawing. Quote
Tiger Posted January 26, 2009 Posted January 26, 2009 the command LIMITS will set your limits. I never use limits myself, however I see the point of doing what the teacher says... Quote
CADsince07 Posted January 26, 2009 Author Posted January 26, 2009 yes i never work with limits myself but I have to follow the exact method used in the course. So if i type limits then what would sensible limits be for my template file? I am going to be plotting a drawing on A4 and then on A3 at 1:2 Sorry if im being dim here but i never use limits and so im not sure what figures im supposed to use? Quote
Raggi_Thor Posted January 26, 2009 Posted January 26, 2009 A3 1:2 will be 420 multiplied with 2 by 210 multiplied with 2. Type LIMITS 0,0 840,420 Quote
Tiger Posted January 26, 2009 Posted January 26, 2009 yes i never work with limits myself but I have to follow the exact method used in the course. So if i type limits then what would sensible limits be for my template file? I am going to be plotting a drawing on A4 and then on A3 at 1:2 Sorry if im being dim here but i never use limits and so im not sure what figures im supposed to use? Following Raggi's calculations and if you're going to plot them both in scale 1:2 the sequence would be LIMITS Specify lower left corner: 0.00,0.00 Specify upper right corner: 594,420 (for A4) or 820,594 (for A3) edit: Raggi was just a taad faster :wink: Quote

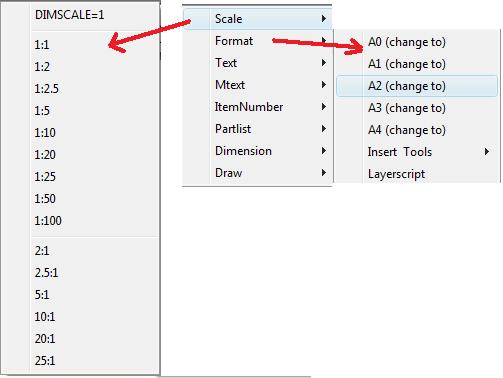

Raggi_Thor Posted January 26, 2009 Posted January 26, 2009 After doing this manually a few times for the trainig, setting limits, dimscale, textsize, hpscale, grid, snap etc, I think your teacher should give you a pulldown menu like this: Quote
Raggi_Thor Posted January 26, 2009 Posted January 26, 2009 Yes, I have mixed some numbers... Tiger is right.. 420 x 297 is the A3! Quote
CADsince07 Posted January 26, 2009 Author Posted January 26, 2009 Thanks a lot guys! Hopefully i have set it up right now! Quote
Tiger Posted January 26, 2009 Posted January 26, 2009 Yes, I have mixed some numbers...Tiger is right.. 420 x 297 is the A3! It's not like they need to exact, right? And no problem CAD, glad to help. Quote
vicvel4691 Posted January 17, 2016 Posted January 17, 2016 I'm new in AutoCAD, i think command "limits" in AutoCAD its about setting limits for the printable boundary in the surface of A3 size paper not actually for the size of A3 paper. I would suggest like this: i'm not perfect but i'll just try. LIMITS Specify lower left corner: 0.00,0.00 Specify upper right corner: 788,514 (for A3) Because printable surface including margins is 394 x 257 mm for 420 x 297 size of A3 paper. scale 1:2 Quote
