Help to create blank dimensions with a box

[AbdRF]

Hi all,

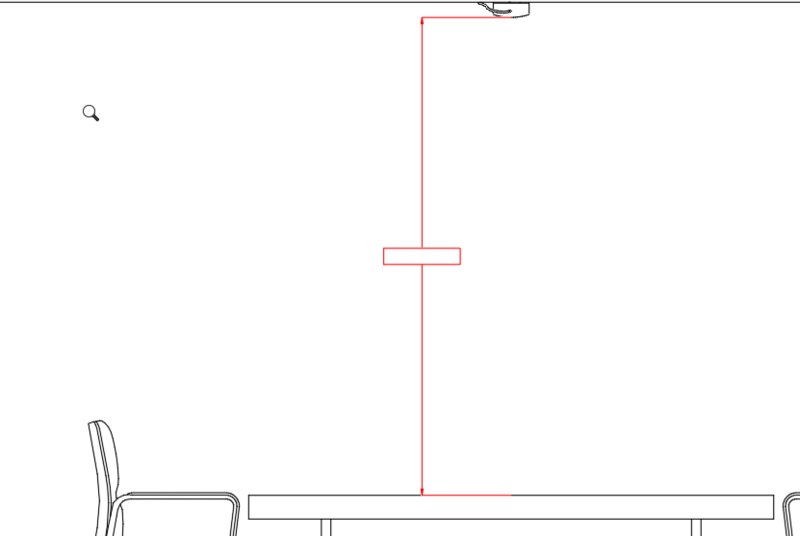

I need to create the blank dimensions with a box in the gap for few drawings .Can somebody suggest how this can be done?   I am attaching the sample pic below.Thanks in advance

Edited September 30, 2019 by AbdRF

[lrm]

Method 1 - explode the dimension and check the box for Frame for the text and change the text to space characters.



Method 2 - create a rectangle with a hatch of color 255,255,255 and cover the dimension text of the dimension line.  Use draworder or have the rectangle at a z > 0 to make sure the rectangle is displayed after the dimension line.

[rkent]

Place the dimension, select and open properties, in text override just enter a bunch of spaces.

[tombu]

What rkent said & set Text offset (DIMGAP) to a negative number or

https://forums.autodesk.com/t5/autocad-forum/drawing-frame-aroud-dimension-text/m-p/2516745#M324150

or

https://forums.autodesk.com/t5/autocad-forum/providing-text-box-to-the-dimension/td-p/8112021

or Toggle the TextBox On/Off of selected Dimensions using:

;| Toggle Dimension Text Box
https://www.cadtutor.net/forum/topic/68801-help-to-create-blank-dimensions-with-a-box/?tab=comments#comment-555956
Macro: ^P(or C:DimBoxText (load "DimBoxText.lsp"));DimBoxText
   Command line: (load "DimBoxText.lsp") DimBoxText |;

(vl-load-com)
(defun c:DimBoxText ( / ss i obj box)
  (if (setq ss (ssget '((0 . "Dimension"))))
    (repeat (setq i (sslength ss))
      (setq obj (vlax-ename->vla-object (ssname ss (setq i (1- i))))
			box (- 0.0 (vlax-get obj 'TextGap))
      )
      (vlax-put obj 'TextGap box)
    )
  )
  (princ)
)



Edited October 1, 2019 by tombu

[AbdRF]

On 10/2/2019 at 1:22 AM, tombu said:

What rkent said & set Text offset (DIMGAP) to a negative number or

https://forums.autodesk.com/t5/autocad-forum/drawing-frame-aroud-dimension-text/m-p/2516745#M324150

or

https://forums.autodesk.com/t5/autocad-forum/providing-text-box-to-the-dimension/td-p/8112021

or Toggle the TextBox On/Off of selected Dimensions using:

;| Toggle Dimension Text Box
https://www.cadtutor.net/forum/topic/68801-help-to-create-blank-dimensions-with-a-box/?tab=comments#comment-555956
Macro: ^P(or C:DimBoxText (load "DimBoxText.lsp"));DimBoxText
   Command line: (load "DimBoxText.lsp") DimBoxText |;

(vl-load-com)
(defun c:DimBoxText ( / ss i obj box)
  (if (setq ss (ssget '((0 . "Dimension"))))
    (repeat (setq i (sslength ss))
      (setq obj (vlax-ename->vla-object (ssname ss (setq i (1- i))))
			box (- 0.0 (vlax-get obj 'TextGap))
      )
      (vlax-put obj 'TextGap box)
    )
  )
  (princ)
)



Thanks bro

[AbdRF]

On 10/1/2019 at 9:42 PM, rkent said:

Place the dimension, select and open properties, in text override just enter a bunch of spaces.

Thanks

[AbdRF]

On 9/30/2019 at 9:44 PM, lrm said:

Method 1 - explode the dimension and check the box for Frame for the text and change the text to space characters.



Method 2 - create a rectangle with a hatch of color 255,255,255 and cover the dimension text of the dimension line.  Use draworder or have the rectangle at a z > 0 to make sure the rectangle is displayed after the dimension line.

I am going with Method 2.
Thanks
