Have You Tried: Pre-scaled Layout Viewports

Recommended Posts

The AutoCAD Blog

We’ve streamlined the way you create layout viewports. In the past, there were several steps you needed to follow to insert a view from model space onto a layout and get it sized correctly. This process was time consuming and inefficient.

New options in the MVIEW command make it much easier to create, scale, and place new views on a layout. For example, we added a new grip that you can use to specify or change the scale of a view. Other grips make it easy to move layout viewports and to change their boundaries.

AutoCAD layout viewport

Learn more about this new technique with a step-by-step example in the Have You Tried: Pre-scaled Layout Viewports topic.

Keep the Feedback Coming

Thanks for all the great feedback submitted so far. Because of the great feedback, we have been able to improve the topics in the AutoCAD Online Help system. Updated Help Topics contains a list of the most recently updated topics.

The best way to submit feedback is by using the “Was this helpful?” section located at the bottom of every Help topic. Let us know what you like or don’t like about a topic or provide suggestions for other subjects that you’d like to see covered in greater detail. The more specific your comments, the better.

Share this post


Link to post
Share on other sites
BIGAL

This is a new feature so if you have an old version of cad it does not work.

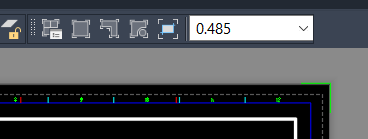

But a work around for metric users, open the vports toolbar, when you go into viewport mspace a number appears in the toolbar, this is current scale.



So zoom in make a guess at correct scale then type a number in the toolbar, for metres its a whole number its 1000/scale so 1:250 = 4 1:100 = 10 and so on. Very simple.




Share this post


Link to post
Share on other sites
