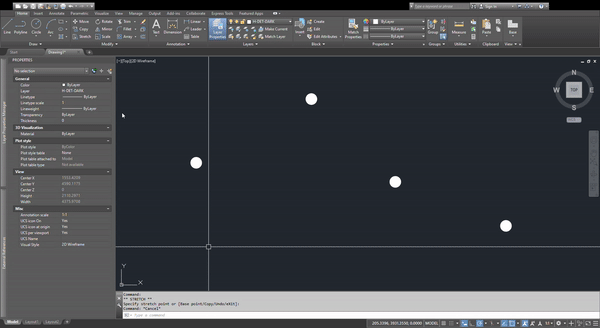

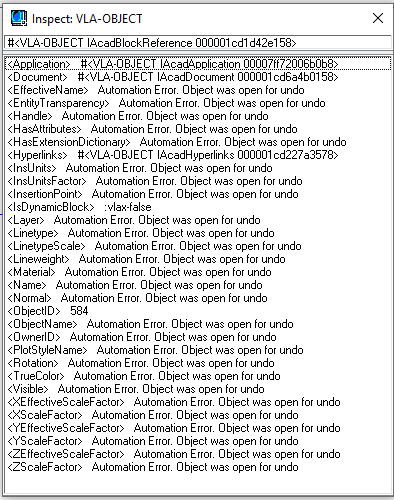

Jonathan Handojo Posted March 10, 2020 Posted March 10, 2020 (edited) Hi guys, I'm a pretty new learner when it comes to doing reactors. I tried doing a LISP routine whereby it draws a rectangle between the insertion points of two blocks. I set my reactors so that when moving the block, the rectangle will update itself as shown below: But something just starts to screw when I undo, because I've always set my AutoLISP to Break on Error. As good practice, as long as the error doesn't show up, I know that I'm doing the right thing. What's really happening to the reactors when you undo, or am I missing something? Thanks, Jonathan Handojo Edited March 10, 2020 by Jonathan Handojo Quote
Grrr Posted March 19, 2020 Posted March 19, 2020 On 3/10/2020 at 7:13 PM, Jonathan Handojo said: What's really happening to the reactors when you undo, or am I missing something? Probably your issue is related to setting start/end undomarks of the active document within the callback function(s). But if you are curious about your question - here is some observation: Modifying a circle's radius and performing undo - Command: :VLR-documentLockModeWillChange . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 2 20 2 "") :VLR-documentLockModeChanged . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 2 20 20 "") :VLR-objectOpenedForModify . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1cedb0>) :VLR-objectModified . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1cedb0>) Command: _u :VLR-documentLockModeWillChange . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 2 4 2 "U") :VLR-documentLockModeWillChange . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 1 2 1 "#") :VLR-documentLockModeChanged . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 1 2 2 "#") :VLR-documentLockModeChanged . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 2 4 4 "U") :VLR-commandWillStart . ("U") :VLR-commandWillStart . ("U") :VLR-pickfirstModified . nil :VLR-undoSubcommandNumber . (0 1) :VLR-objectOpenedForModify . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1cedb0>) :VLR-objectModified . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1cedb0>) :VLR-commandEnded . ("U") :VLR-commandEnded . ("U") :VLR-documentLockModeWillChange . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 4 2 4 "#U") :VLR-documentLockModeChanged . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 4 2 2 "#U") Modifying a circle's radius - which is linked to another circle's radius (so this example is from only 2 linked objects) - Command: :VLR-documentLockModeWillChange . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 2 20 2 "") :VLR-documentLockModeChanged . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 2 20 20 "") :VLR-objectOpenedForModify . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced90>) :VLR-objectModified . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced80>) :VLR-objectModified . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced80>) :VLR-objectOpenedForModify . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced80>) :VLR-objectModified . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced80>) :VLR-objectModified . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced90>) :VLR-objectModified . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced80>) Command: _u :VLR-documentLockModeWillChange . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 2 4 2 "U") :VLR-documentLockModeWillChange . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 1 2 1 "#") :VLR-documentLockModeChanged . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 1 2 2 "#") :VLR-documentLockModeChanged . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 2 4 4 "U") :VLR-commandWillStart . ("U") :VLR-commandWillStart . ("U") :VLR-pickfirstModified . nil :VLR-undoSubcommandNumber . (0 1) :VLR-objectOpenedForModify . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced80>) Probably erased. :VLR-objectModified . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced80>) :VLR-objectModified . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced90>) :VLR-objectModified . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced90>) :VLR-documentLockModeWillChange . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 4 20 20 "#U") :VLR-documentLockModeChanged . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 4 20 20 "#U") :VLR-objectOpenedForModify . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced90>) :VLR-objectModified . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced90>) :VLR-objectOpenedForModify . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced90>) Probably erased. :VLR-objectModified . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced90>) :VLR-objectModified . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced80>) :VLR-commandEnded . ("U") :VLR-commandEnded . ("U") So for short - a bunch of documentLockModeWillChange / documentLockModeChanged, objectOpenedForModify / objectModified events happen, along with commandWillStart / commandEnded with argument ("U") - which stands for UNDO. Reason for the double commandWillStart / Ended is because one event is called from a :vlr-Command-reactor and the other is from :vlr-Editor-reactor, since they have the same events. If I couldn't solve your problem with Start/Undo Marks, I would probably include a command-reactor to trace for :VLR-commandEnded . ("U") , so I would 'auto-process' all the linked objects within your object reactor. Quote
Jonathan Handojo Posted March 5, 2021 Author Posted March 5, 2021 On 3/20/2020 at 12:37 AM, Grrr said: Probably your issue is related to setting start/end undomarks of the active document within the callback function(s). But if you are curious about your question - here is some observation: Modifying a circle's radius and performing undo - Command: :VLR-documentLockModeWillChange . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 2 20 2 "") :VLR-documentLockModeChanged . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 2 20 20 "") :VLR-objectOpenedForModify . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1cedb0>) :VLR-objectModified . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1cedb0>) Command: _u :VLR-documentLockModeWillChange . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 2 4 2 "U") :VLR-documentLockModeWillChange . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 1 2 1 "#") :VLR-documentLockModeChanged . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 1 2 2 "#") :VLR-documentLockModeChanged . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 2 4 4 "U") :VLR-commandWillStart . ("U") :VLR-commandWillStart . ("U") :VLR-pickfirstModified . nil :VLR-undoSubcommandNumber . (0 1) :VLR-objectOpenedForModify . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1cedb0>) :VLR-objectModified . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1cedb0>) :VLR-commandEnded . ("U") :VLR-commandEnded . ("U") :VLR-documentLockModeWillChange . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 4 2 4 "#U") :VLR-documentLockModeChanged . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 4 2 2 "#U") Modifying a circle's radius - which is linked to another circle's radius (so this example is from only 2 linked objects) - Command: :VLR-documentLockModeWillChange . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 2 20 2 "") :VLR-documentLockModeChanged . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 2 20 20 "") :VLR-objectOpenedForModify . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced90>) :VLR-objectModified . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced80>) :VLR-objectModified . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced80>) :VLR-objectOpenedForModify . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced80>) :VLR-objectModified . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced80>) :VLR-objectModified . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced90>) :VLR-objectModified . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced80>) Command: _u :VLR-documentLockModeWillChange . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 2 4 2 "U") :VLR-documentLockModeWillChange . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 1 2 1 "#") :VLR-documentLockModeChanged . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 1 2 2 "#") :VLR-documentLockModeChanged . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 2 4 4 "U") :VLR-commandWillStart . ("U") :VLR-commandWillStart . ("U") :VLR-pickfirstModified . nil :VLR-undoSubcommandNumber . (0 1) :VLR-objectOpenedForModify . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced80>) Probably erased. :VLR-objectModified . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced80>) :VLR-objectModified . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced90>) :VLR-objectModified . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced90>) :VLR-documentLockModeWillChange . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 4 20 20 "#U") :VLR-documentLockModeChanged . (#<VLA-OBJECT IAcadDocument 0000001d3b3f19a8> 4 20 20 "#U") :VLR-objectOpenedForModify . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced90>) :VLR-objectModified . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced90>) :VLR-objectOpenedForModify . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced90>) Probably erased. :VLR-objectModified . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced90>) :VLR-objectModified . (#<VLA-OBJECT IAcadDatabase 0000001d39618888> <Entity name: 1d1d1ced80>) :VLR-commandEnded . ("U") :VLR-commandEnded . ("U") So for short - a bunch of documentLockModeWillChange / documentLockModeChanged, objectOpenedForModify / objectModified events happen, along with commandWillStart / commandEnded with argument ("U") - which stands for UNDO. Reason for the double commandWillStart / Ended is because one event is called from a :vlr-Command-reactor and the other is from :vlr-Editor-reactor, since they have the same events. If I couldn't solve your problem with Start/Undo Marks, I would probably include a command-reactor to trace for :VLR-commandEnded . ("U") , so I would 'auto-process' all the linked objects within your object reactor. Sorry for the extremely late response... I didn't understood it then, but now I do. When I read your quote, I think the issue is: When I run the Undo command, the :vlr-commandwillstart fires up, thus inspecting the object that triggered the reactor yielded the following: I didn't at all thought it would fire the :vlr-modified event, hence failed... I wanna ask though, where can you get that step-by-step event that's fired when a certain action is taken? Perhaps I can try to work around it if I can get this information. Quote
Jonathan Handojo Posted March 6, 2021 Author Posted March 6, 2021 (edited) This is just my practice on using reactors... I know this can be done by associating the dimension to the block as opposed to using reactors (even though associating dimensions also uses reactors), but this just serves as practice... I don't know if this is a good approach to avoiding the undo... basically setting a global variable as T when the undo command starts, and then setting it back to nil when it ends. And in the vlr-modified reactor, I use an if function to execute what the modified function does if the flag is inactive. I've included a video below to show how this animation works. (defun c:gdr (/ *error* 05pi acadobj activeundo adoc ang brct dim1 dim2 dimrct dir getblk gr grp grv midpt mpt msp nang ndis ofs p1 p2 pt1 pt2 snp x xvec) (defun *error* ( msg ) (setvar 'snapang snp) (mapcar '(lambda (x) (and x (not (vlax-erased-p (car x))) (vl-catch-all-apply 'vla-delete (list (car x))))) (list dim1 dim2)) (vla-EndUndoMark adoc) (if (not (wcmatch (strcase msg T) "*break*,*cancel*,*exit*")) (princ (strcat "Error: " msg)) ) ) (defun getblk (p msg / pt) (setq msg (vl-string-right-trim ":" (vl-string-right-trim " " msg))) (while (progn (setvar 'errno 0) (setq pt (progn (initget "Point") (entsel (strcat msg " or [Point] <exit>: ")))) (cond ((= (getvar 'errno) 7) (princ "\nNothing selected")) ((null pt) nil) ((eq pt "Point") (setq pt (progn (initget "Block") (apply 'getpoint (append (if p (list p)) (list "\nSpecify point or [Block] <exit>: "))))) (eq pt "Block") ) ((not (eq (cdr (assoc 0 (setq pt (entget (car pt))))) "INSERT")) (princ "\nObject is not a block")) ((not (setq pt (cdr (assoc -1 pt))))) ) ) ) pt ) (setq acadobj (vlax-get-acad-object) adoc (vla-get-ActiveDocument acadobj) msp (vla-get-ModelSpace adoc) activeundo nil) (if (= 0 (logand 8 (getvar "UNDOCTL"))) (vla-StartUndoMark adoc) (setq activeundo T)) (if (and (setq p1 (getblk nil "\nSpecify first block: ")) (setq p2 (getblk (if (eq (type p1) 'ename) (cdr (assoc 10 (entget p1))) p1) "\nSpecify next block: ")) ) (progn (setq pt1 (if (eq (type p1) 'ename) (cdr (assoc 10 (entget p1))) p1) pt2 (if (eq (type p2) 'ename) (cdr (assoc 10 (entget p2))) p2) xvec (angle '(0 0 0) (trans (getvar 'ucsxdir) 0 2 t)) dir (+ xvec (cond ((getangle "\nSpecify dimension angle <0>: ")) (0))) ang (angle pt1 pt2) midpt (JH:midpt pt1 pt2) snp (getvar 'snapang) ) (if (not (equal (rem (- ang dir) (setq 05pi (* 0.5 pi))) 0 1e-5)) (setq dim1 (cons (vla-AddDimRotated msp (vlax-3d-point (trans pt1 1 0)) (vlax-3d-point (trans pt2 1 0)) (vlax-3d-point (trans midpt 1 0)) dir) dir) dim2 (cons (vla-AddDimRotated msp (vlax-3d-point (trans pt1 1 0)) (vlax-3d-point (trans pt2 1 0)) (vlax-3d-point (trans midpt 1 0)) (+ dir 05pi)) (+ dir 05pi)) ) (setq dim1 (cons (vla-AddDimRotated msp (vlax-3d-point (trans pt1 1 0)) (vlax-3d-point (trans pt2 1 0)) (vlax-3d-point (trans midpt 1 0)) ang) ang)) ) (mapcar '(lambda (x) (and x (vla-put-TextMovement (car x) 0))) (list dim1 dim2)) (setvar 'snapang (- dir xvec)) (while (progn (setq gr (grread t 15) grp (cadr gr) grv (car gr) ) (cond ((member grv '(5 3)) (mapcar '(lambda (x) (if x (progn (setq mpt (inters midpt (polar midpt (- (+ 05pi (cdr x)) xvec) 1) grp (polar grp (- (cdr x) xvec) 1) nil) ofs (mapcar '- mpt midpt) ) (vlax-put (car x) 'TextPosition (trans (mapcar '+ midpt ofs) 1 0)) ) ) ) (list dim1 dim2) ) (cond ((= grv 5)) ((= 3 grv) (mapcar '(lambda (x y / brct dimrct) (setq dimrct (append (if dim1 (list (list y (vlax-vla-object->ename (car dim1))))) (if dim2 (list (list y (vlax-vla-object->ename (car dim2))))) ) ) (foreach x dimrct (VLR-Object-Reactor (list (vlax-ename->vla-object (cadr x))) brct '( (:VLR-erased . GridDimensionReactive:DimensionErased) (:VLR-unerased . GridDimensionReactive:DimensionUnerased) ) ) ) (VLR-Object-Reactor (if (eq (type x) 'ename) (list (vlax-ename->vla-object x))) (setq dimrct (append (if dim1 (list (list y (vlax-vla-object->ename (car dim1))))) (if dim2 (list (list y (vlax-vla-object->ename (car dim2))))) ) ) '( (:VLR-erased . GridDimensionReactive:BlockErased) (:VLR-unerased . GridDimensionReactive:BlockUnerased) (:VLR-modified . GridDimensionReactive:BlockModified) ) ) ) (list p1 p2) '(13 14) ) (or (and (setq p2 (getblk pt1 "\nSpecify next block: ")) (setq pt2 (if (eq (type p2) 'ename) (cdr (assoc 10 (entget p2))) p2) ang (angle pt1 pt2) midpt (JH:midpt pt1 pt2) ) (if (not (equal (rem (- ang dir) (setq 05pi (* 0.5 pi))) 0 1e-8)) (setq dim1 (cons (vla-AddDimRotated msp (vlax-3d-point (trans pt1 1 0)) (vlax-3d-point (trans pt2 1 0)) (vlax-3d-point (trans midpt 1 0)) dir) dir) dim2 (cons (vla-AddDimRotated msp (vlax-3d-point (trans pt1 1 0)) (vlax-3d-point (trans pt2 1 0)) (vlax-3d-point (trans midpt 1 0)) (+ dir 05pi)) (+ dir 05pi)) ) (setq dim1 (cons (vla-AddDimRotated msp (vlax-3d-point (trans pt1 1 0)) (vlax-3d-point (trans pt2 1 0)) (vlax-3d-point (trans midpt 1 0)) ang) ang)) ) (mapcar '(lambda (x) (and x (vla-put-TextMovement (car x) 0))) (list dim1 dim2)) ) (progn (setq dim1 nil dim2 nil) (*error* "Exit") ) ) ) ) ) ((or (and (= grv 2) (member grp '(13 32))) (= grv 25) ) (*error* "Exit") ) (t) ) ) ) (setvar 'snapang snp) ) ) (if activeundo nil (vla-EndUndoMark adoc)) (princ) ) (if (not (vl-some '(lambda (a) (eq (VLR-Data a) "GridDimensionReactive") ) (cdar (VLR-reactors :VLR-Command-Reactor)) ) ) (VLR-Command-Reactor "GridDimensionReactive" '( (:VLR-commandWillStart . GridDimensionReactive:BeforeUndo) (:VLR-commandEnded . GridDimensionReactive:AfterUndo) ) ) ) (defun GridDimensionReactive:BlockErased (obj rct lst) (VLR-Remove rct)) (defun GridDimensionReactive:BlockUnerased (obj rct lst) (and (not (VLR-added-p rct)) (VLR-Add rct))) (defun GridDimensionReactive:DimensionErased (obj rct lst) (VLR-Remove rct)) (defun GridDimensionReactive:DimensionUnerased (obj rct lst) (and (not (VLR-added-p rct)) (VLR-Add rct))) (defun GridDimensionReactive:BeforeUndo (rct lst) (if (member (car lst) '("U" "UNDO" "REDO" "MREDO")) (setq GridDimensionReactive_UndoFlag t) ) ) (defun GridDimensionReactive:AfterUndo (rct lst) (if (member (car lst) '("U" "UNDO" "REDO" "MREDO")) (setq GridDimensionReactive_UndoFlag nil) ) ) (defun GridDimensionReactive:BlockModified (obj rct lst / 05pi dxfx get) (if (and (not GridDimensionReactive_UndoFlag) (not (vlax-erased-p obj)) ) (foreach x (VLR-Data rct) (if (and (vlax-ename->vla-object (cadr x)) (vlax-write-enabled-p (cadr x)) ) (progn (setq get (entget (cadr x)) 05pi (* 0.5 pi) dxfx (car x) ) (entmod (mapcar '(lambda (a / ang p1 dxfa) (cond ((= (setq dxfa (car a)) dxfx) (cons dxfa (vlax-get obj 'InsertionPoint))) ((and (= dxfa 11) (setq inp (inters (setq ang (cdr (assoc 50 get)) p1 (JH:midpt (cdr (assoc (if (= dxfx 14) 13 14) get)) (vlax-get obj 'InsertionPoint))) (polar p1 (+ 05pi ang) 10) (cdr a) (polar (cdr a) ang 10) nil ) ) ) (cons 11 inp) ) (a) ) ) get ) ) ) ) ) ) ) ;; JH:midpt --> Jonathan Handojo ;; Returns the midpoint of two points (defun JH:midpt (a b) (mapcar '(lambda (x) (/ (float x) 2)) (mapcar '+ a b) ) ) (vl-load-com) ReactiveGridDimension.mp4 Edited March 6, 2021 by Jonathan Handojo Quote
