Unable to Extrude Object

Recommended Posts

donaldo

I have made my very first attempt ay using 3D and I am not able to extrude some of the objects.  Its a foundation plan so fairly simple.  I have exploded some of the lines and rejoined and that seems to have worked as I assume there were overlapping lines or object not joined?   However some are still not extruding....?   Advice mush appreciated

WV Founds 3D.dwg

Share this post


Link to post
Share on other sites
Cad64
2 hours ago, donaldo said:

I have made my very first attempt ay using 3D and I am not able to extrude some of the objects.  Its a foundation plan so fairly simple.  I have exploded some of the lines and rejoined and that seems to have worked as I assume there were overlapping lines or object not joined?   However some are still not extruding....?   Advice mush appreciated

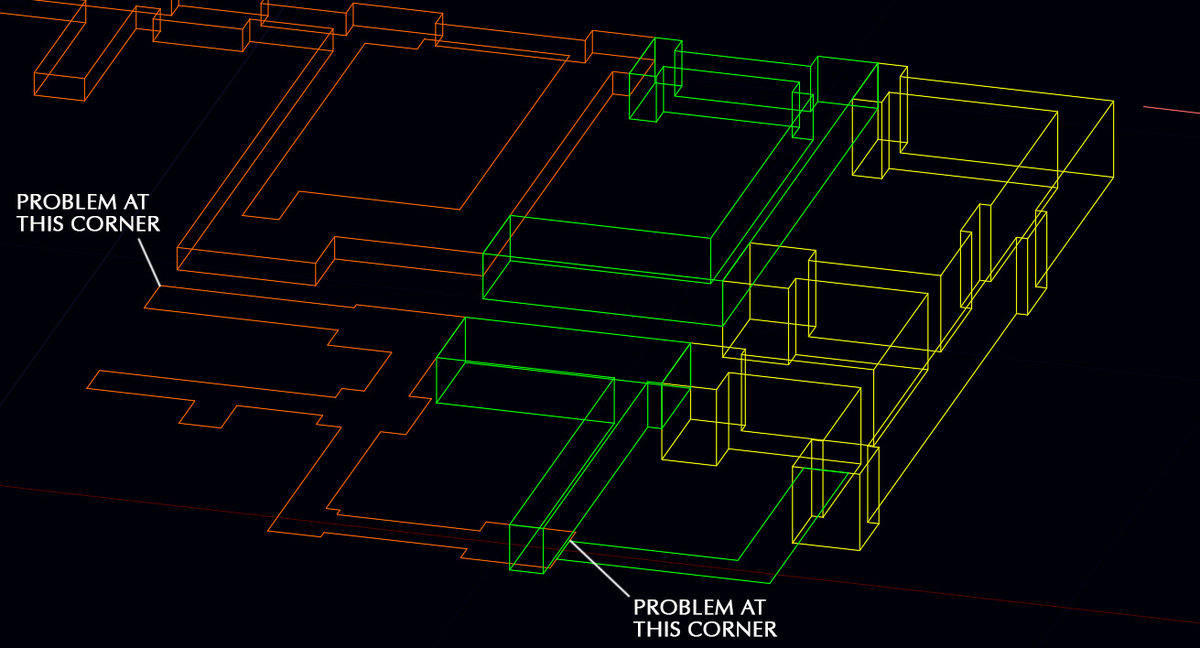

You don't have clean geometry. See images below.






Share this post


Link to post
Share on other sites
donaldo

Ok thanks. How do I check my geometry is clean in future before commencing in 3D. And what measures should I take to ensure it is drawn accurately in the first place.. I guess using correct snaps etc?

Share this post


Link to post
Share on other sites
Cad64
1 hour ago, donaldo said:

How do I check my geometry is clean in future before commencing in 3D. And what measures should I take to ensure it is drawn accurately in the first place.. I guess using correct snaps etc?



Yes, definitely make sure you're using Osnaps, but mostly, just go slow and make sure your linework is correct. Most mistakes happen when you get in a hurry and try to go too fast or you don't pay attention and end up with overlapping lines or endpoints that don't connect.

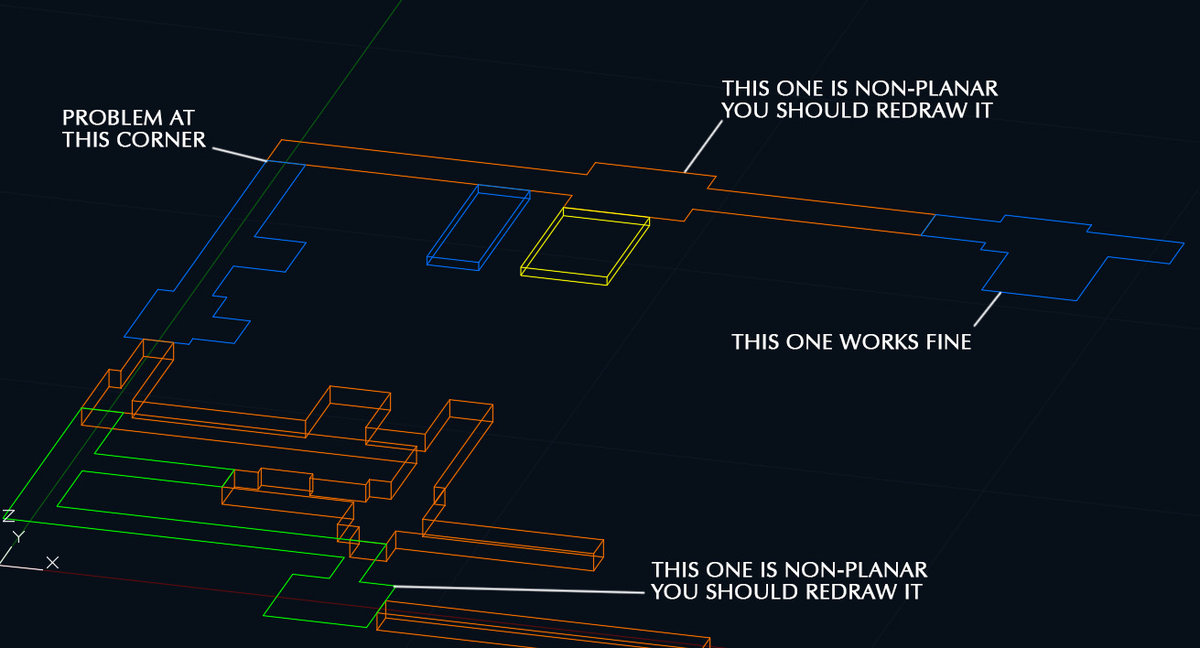

I fixed the images in my previous post. There were supposed to be 2 images but for some reason only 1 was showing.

Share this post


Link to post
Share on other sites
donaldo

I thought I was pretty accurate but this has illustrated there is room for improvement! Thanks for your help

Share this post


Link to post
Share on other sites
Dadgad

When you draw the lines which you plan to extrude use the PLINE command, which will guarantee that the resulting closed Polyline will be coplanar,  when you

are ready for the final leg of the continuous Polyline, use the C (for Close) option.  You probably want to have ORTHO turned on, if your work is essentially rectilinear.

Share this post


Link to post
Share on other sites
donaldo

Thank for the tips



Share this post


Link to post
Share on other sites
