Labels - Gone wild

Recommended Posts

Silvercloak

Hi all,

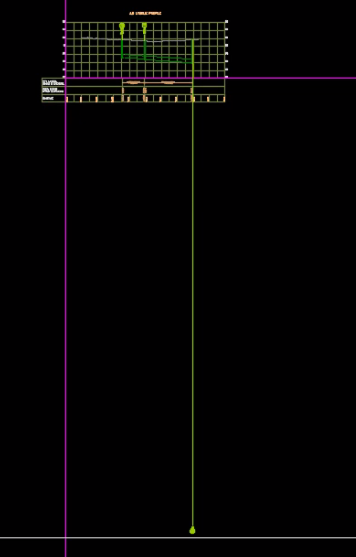

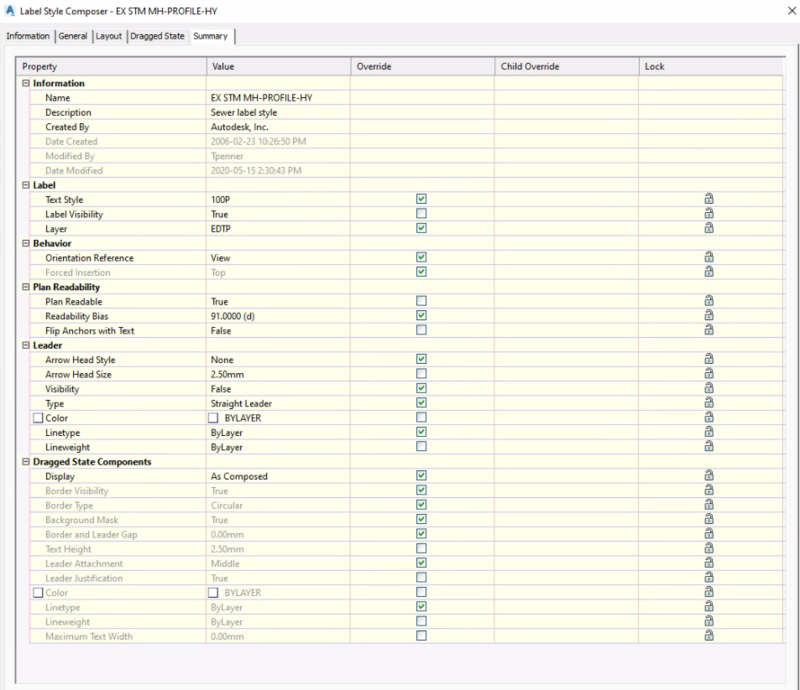

   Got a question, sometimes Civil3d labels baffle me.  I've got Manhole tags here, the first two look ok because I've had to drag and tweak them to set it properly.  But originally they started out exactly like the third label there.  I've tried changing the anchor point but maybe I'm doing something wrong.  Is there a way to get it to at LEAST snap closer to the manhole instead of trying to reach the center of the earth here?  Posted the summary, if you need more detail for how the label was made let me know.



Silvercloak









Share this post


Link to post
Share on other sites
BIGAL

I am still working on my 4 year degree in Civ3d styles. Just so complex.

Share this post


Link to post
Share on other sites
CyberAngel

I believe there is a default value for the elevation of those labels. It's like inserting a block and leaving the Specify On-Screen box unchecked, it winds up somewhere you didn't expect.



Sorry, I don't have Civil 3D now, so I can't tell you exactly where to look. Maybe check the properties of the object(s) before drawing the profile.

Share this post


Link to post
Share on other sites
Silvercloak

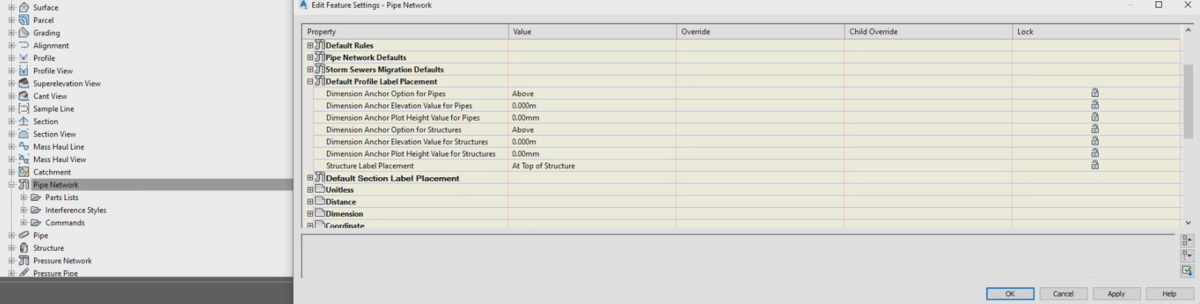

Solved.  It's tucked away in settings.  The last place I'd look.  Gotta right click on Pipe Network and voila...  Now if only I could figure out how to get it to anchor the MH # bubble to top of the MH and the inverts to the bottom - but I can live with this.


Share this post


Link to post
Share on other sites
Dadgad

I don't use Civil 3D, but have a voracious appetite for SETTINGS and OPTIONS.

Why settle for the OTB configuration, once you have enough experience to have your own personal preferences.



Lest I forget SYSVDLG (at least in AutoCad Vanilla) can really open ones eyes to alternate System Variable settings,

as one can easily use your cursor buttons to scroll through them, and if you don't learn something doing that,

then you know a hell of a lot more than most users.

Just remember to keep notes of any new changes to variables you might want to try out, in case you later decide against them.
